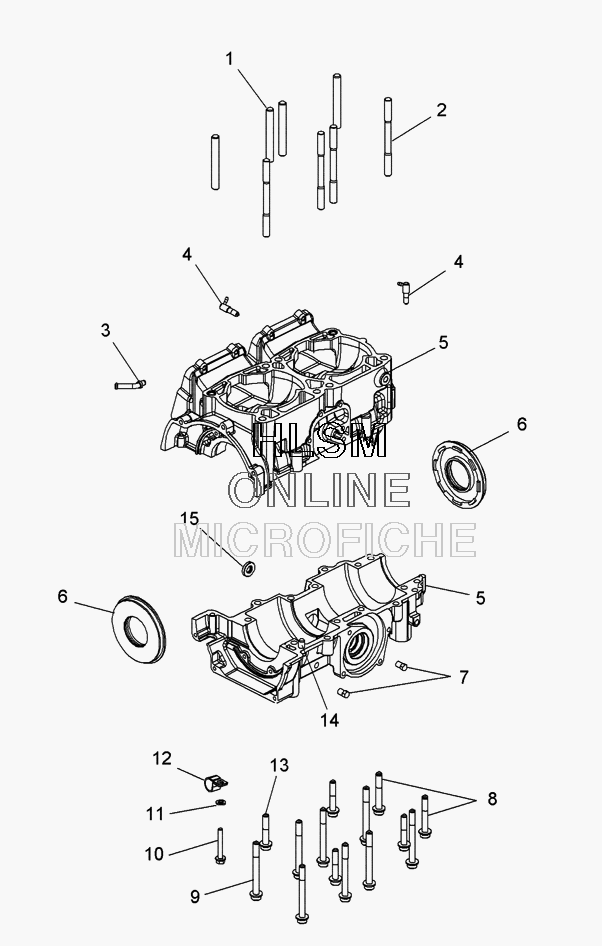

CRANKCASE ASSEMBLY для Polaris 600 IQ SHIFT AND EURO (S09PB6FS/FE) - 2009 года выпуска
-
№АртикулНазвание
-
15135956 STUD-CYL 81MMSTUD-CYL 81MM
-
25132197 STUD, CYL 118MMSTUD, CYL 118MM
-
37052354 FITTING-6.5MM ODFITTING-6.5MM OD
-
47051020 VALVE, CHECK, 90 DEG.VALVE, CHECK, 90 DEG.
-
52203037 KIT-CRANKCASE 1202738 [INCL 1, 2, 7-10, 13, 14]KIT-CRANKCASE 1202738 [INCL 1, 2, 7-10, 13, 14]
-
65412091 SEAL-FLANGE, 35X72X7, TRANSCOMSEAL-FLANGE, 35X72X7, TRANSCOM
-
77051529 PLUGPLUG
-
87517785 BOLT, M8X1.25X55BOLT, M8X1.25X55
-
97517784 BOLT, M8X1.25X80BOLT, M8X1.25X80
-
107516825 SCREWSCREW
-
117555836 WASHERWASHER
-
127080880 CLAMP-HOSE, .625 DIA VNL COATEDCLAMP-HOSE, .625 DIA VNL COATED
-
137517786 BOLT, M8X1.25X45BOLT, M8X1.25X45
-
147663001 PIN, DOWELPIN, DOWEL
-
155010390 WASHERWASHER
