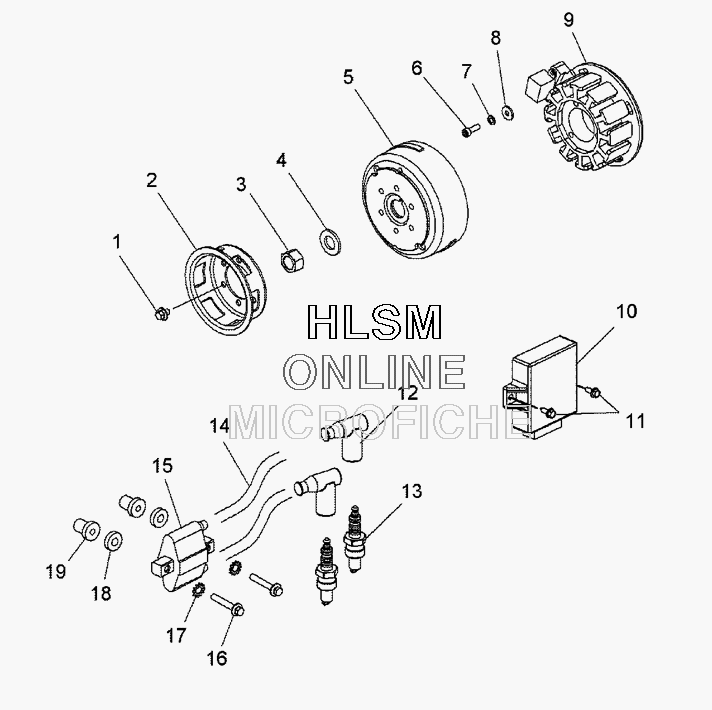

ELECTRICAL - IGNITION SYSTEM для Polaris 600 IQ SHIFT AND EURO (S09PB6FS/FE) - 2009 года выпуска
-
№АртикулНазвание
-
17517278 SCREWSCREW
-
23040161 PULLEY, STARTINGPULLEY, STARTING
-
37546909 NUTNUT
-
47555907 WASHERWASHER
-
54010677 FLYWHEEL-IGN 18°FLYWHEEL-IGN 18°
-
67517314 SCREWSCREW
-
77555969 WASHER, LOCKWASHER, LOCK
-
87555970 WASHER, FLATWASHER, FLAT
-
94060222 STATORSTATOR
-
102203286 KIT-CDI, S60-44-4011623 [INCL NYOGEL AND DECAL]KIT-CDI, S60-44-4011623 [INCL NYOGEL AND DECAL]
-
117512098 SCREWSCREW
-
124020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
133070190 SP.PLUG, CHAMPION RN57Y CCSP.PLUG, CHAMPION RN57Y CC
-
144010124-305 WIRE, IGN, BULK, 305CM.WIRE, IGN, BULK, 305CM.
-
154060229 COIL, IGNITION, KOKCOIL, IGNITION, KOK
-
167517610 SCREWSCREW
-
177552604 WASHERWASHER
-
187555932 WASHER, NYLONWASHER, NYLON
-
197547103 NUT, WELLNUT, WELL
