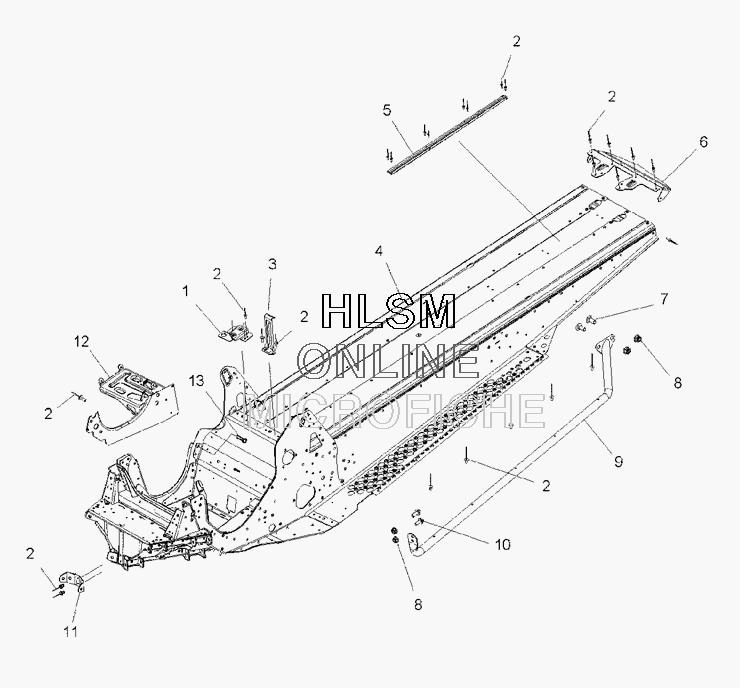

CHASSIS ASSEMBLY для Polaris 700 RMK 155 AND ES - 2009 года выпуска
-
№АртикулНазвание
-
15249094 BRKT-OIL BOTTLE,LOWERBRKT-OIL BOTTLE,LOWER
-
27661637 RIVET,INTERLOCK,ZRIVET,INTERLOCK,Z
-
35251199 BRKT-AIRBOX,LOWERBRKT-AIRBOX,LOWER
-
41015881-309 ASM-CHASSIS MTN7 SDI,155 NATASM-CHASSIS MTN7 SDI,155 NAT
-
55251058 COVER-TAILLIGHT HARNESS,155COVER-TAILLIGHT HARNESS,155
-
65251038 CLOSEOFF-REAR TUNNEL,MTNCLOSEOFF-REAR TUNNEL,MTN
-
77517428 BOLTBOLT
-
87542343 NUT,FLANGENUT,FLANGE
-
91015406-067 WELD-FOOTREST/TUNNEL, LEFT HAND, BLACKWELD-FOOTREST/TUNNEL, LEFT HAND, BLACK
-
91015407-067 WELD-FOOTREST/TUNNEL, RIGHT HAND, BLACKWELD-FOOTREST/TUNNEL, RIGHT HAND, BLACK
-
107515398 SCREWSCREW
-
115251752 BRACE-FRT LOWER A-ARMBRACE-FRT LOWER A-ARM
-
121015042-067 PLATEPLATE
-
137517810 SCR,5/16X24X3/4 TRXPNHDSCR,5/16X24X3/4 TRXPNHD
