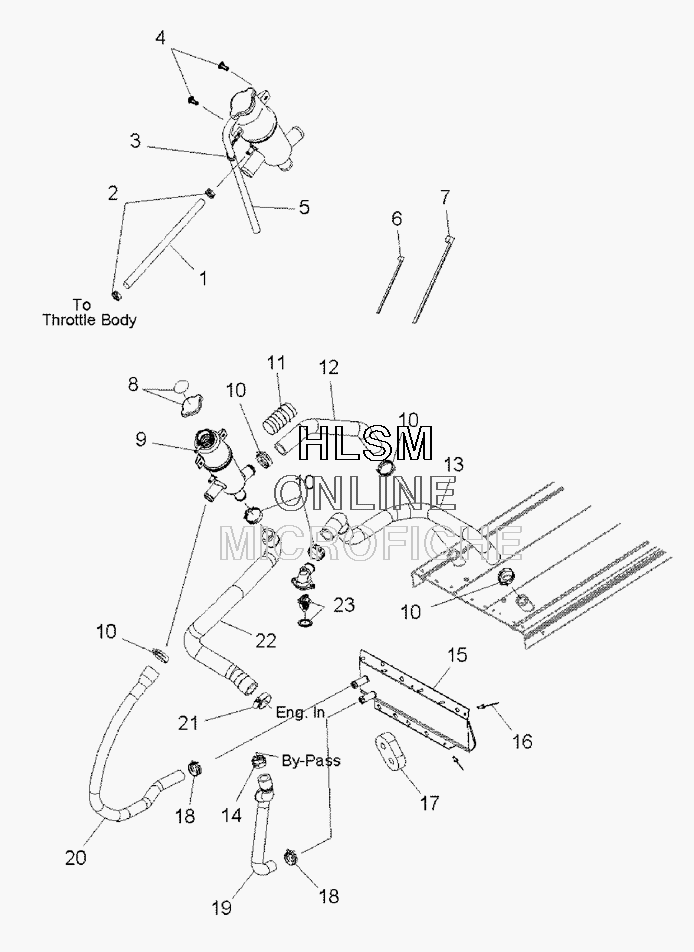

COOLING SYSTEM для Polaris 700 RMK 155 AND ES - 2009 года выпуска
-
№АртикулНазвание
-
18450123-153 FUEL HSE-5/16 DP SAE J30R9 SVCFUEL HSE-5/16 DP SAE J30R9 SVC
-
27080534 CLAMP,HOSECLAMP,HOSE
-
37080654 RETAINER,SS.RETAINER,SS.
-
47515148 SCREWSCREW
-
58450117-250 FUEL HOSE-250 CMFUEL HOSE-250 CM
-
67080138 CABLE TIECABLE TIE
-
77080761 CABLE TIE,14''CABLE TIE,14''
-
87170063 DECAL, WATER BOTTLE CAPDECAL, WATER BOTTLE CAP
-
81240169 CAP-PRESSURECAP-PRESSURE
-
92520479 COOLANT BOTTLECOOLANT BOTTLE
-
107080844 CLAMP,SPRINGBAND 35/12, BLACKCLAMP,SPRINGBAND 35/12, BLACK
-
115521510 TUBING-CONVOLUTED 1.25''X3''TUBING-CONVOLUTED 1.25''X3''
-
125413045 HOSE-TUNNEL COOLER/BOTTLEHOSE-TUNNEL COOLER/BOTTLE
-
135413053 HOSE-ENGINE OUT/TUNNEL COOLHOSE-ENGINE OUT/TUNNEL COOL
-
147080842 CLAMP,SPRINGBAND 29/12, BLACKCLAMP,SPRINGBAND 29/12, BLACK
-
151240263 WELD-COOLER,BULKHEADWELD-COOLER,BULKHEAD
-
167661637 RIVET,INTERLOCK,ZRIVET,INTERLOCK,Z
-
175813082 SEAL-FRT CLOSEOFF COOLERSEAL-FRT CLOSEOFF COOLER
-
187080841 CLAMP,SPRINGBAND 27/12,GREENCLAMP,SPRINGBAND 27/12,GREEN
-
195413199 HOSE-BY-PASS/CENTER COOLERHOSE-BY-PASS/CENTER COOLER
-
205413046 HOSE-CENTER COOLER/BOTTLEHOSE-CENTER COOLER/BOTTLE
-
217080560 CLAMP,HOSE S.S.CLAMP,HOSE S.S.
-
225413006 HOSE-BOTTLE/INLETHOSE-BOTTLE/INLET
-
237052433 THERMO-120°F W/O BYPASS HDTHERMO-120°F W/O BYPASS HD
-
235411521 O-RING,LIPSEALO-RING,LIPSEAL
