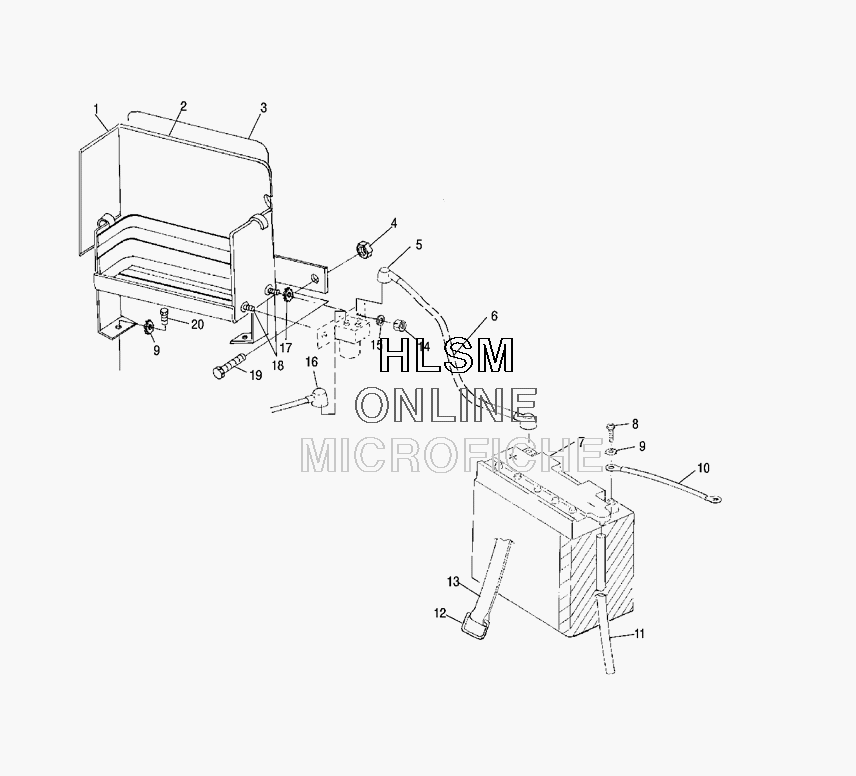

BATTERY BOX для Polaris WIDETRACK LX AND EURO (S09SU4BSBE) - 2009 года выпуска
-
№АртикулНазвание
-
15810290 PAD, BATTERYPAD, BATTERY
-
21012909-067 BATTERY BOX, BLACKBATTERY BOX, BLACK
-
35811754 FOIL, BATTERY BOXFOIL, BATTERY BOX
-
47542321 NUT, FLANGENUT, FLANGE
-
55410346 INSULEFT HANDCABLE SOLEFT HANDINSULEFT HANDCABLE SOLEFT HAND
-
62460256 CABLE, STARTER, REDCABLE, STARTER, RED
-
74140005 BATTERYBATTERY
-
82200360 BOLT, BATT, KIT (LONG)BOLT, BATT, KIT (LONG)
-
97552604 WASHERWASHER
-
104010068 CABLE, STARTER, BLACK.CABLE, STARTER, BLACK.
-
115432077 TUBE, VENTTUBE, VENT
-
125224468 HOOK, 'D'HOOK, 'D'
-
135430621 STRAPSTRAP
-
147541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
157558201 WASHER, FLATWASHER, FLAT
-
164010072 CABLE, 20.5''BLACK, STARTERCABLE, 20.5''BLACK, STARTER
-
177571602 WASHERWASHER
-
187512027 SCREWSCREW
-
197512307 SCREWSCREW
-
207512253 SCREWSCREW
