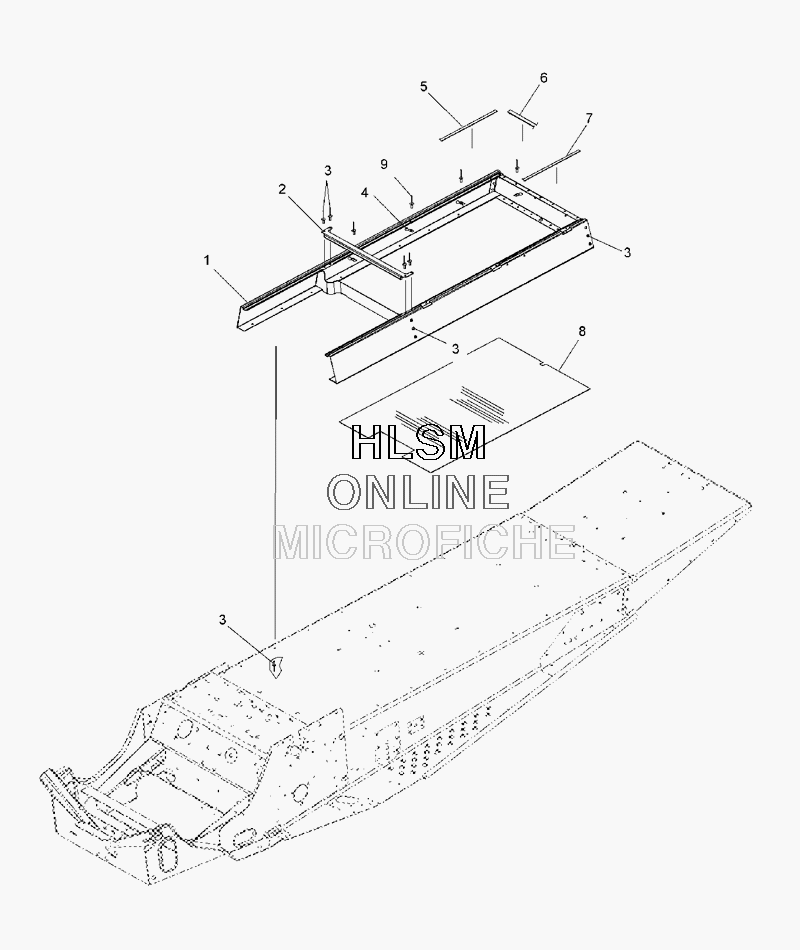

SEAT RISER для Polaris WIDETRACK LX AND EURO (S09SU4BSBE) - 2009 года выпуска
-
№АртикулНазвание
-
11015633-067 ASM-SEAT RISER, WTRAK, BLACKASM-SEAT RISER, WTRAK, BLACK
-
25251674 RETAINER-TANK, REARRETAINER-TANK, REAR
-
37661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
47080393 CLIP, HALFCLIP, HALF
-
55521769-82 FOAM-.50''X.50''W/PSA, 82 CMFOAM-.50''X.50''W/PSA, 82 CM
-
65410563 SEAL, SHORT, SEAT RISERSEAL, SHORT, SEAT RISER
-
75410562 SEAL, SEAT RISERSEAL, SEAT RISER
-
85413186 PROTECTOR-RISERPROTECTOR-RISER
-
97621432 RIVET, 3/16X.402RIVET, 3/16X.402
Все узлы модели:
- AIR INTAKE SYSTEM
- BACKREST ASSEMBLY
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR W/CHOKE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVESHAFT W/JACKSHAFT
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- FUEL TANK W/FUEL LINES
- GEARCASE (1 OF 2)
- GEARCASE (2 OF 2)
- GEARCASE MOUNTING
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ WINDSHIELD
- HOOD W/HINGE AND BRACE ASSEMBLY
- IGNITION SYSTEM
- NOSEPAN AND FOIL
- NOSEPAN/BUMPER
- OIL PUMP ASSEMBLY
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- RACK ASSEMBLY W/SNOWFLAP
- • SEAT RISER
- SEAT W/ TAILLIGHT
- SHIFT LINKAGE
- SKI ASSEMBLY
- SPEEDOMETER W/INDICATOR LIGHTS
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING - LOWER
- SUSPENSION - COUPLER LINK
- SUSPENSION - EXTENSION
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- TUNNEL ASSEMBLY
- WATER PUMP
- WIRE HARNESS W/COMPONENTS
