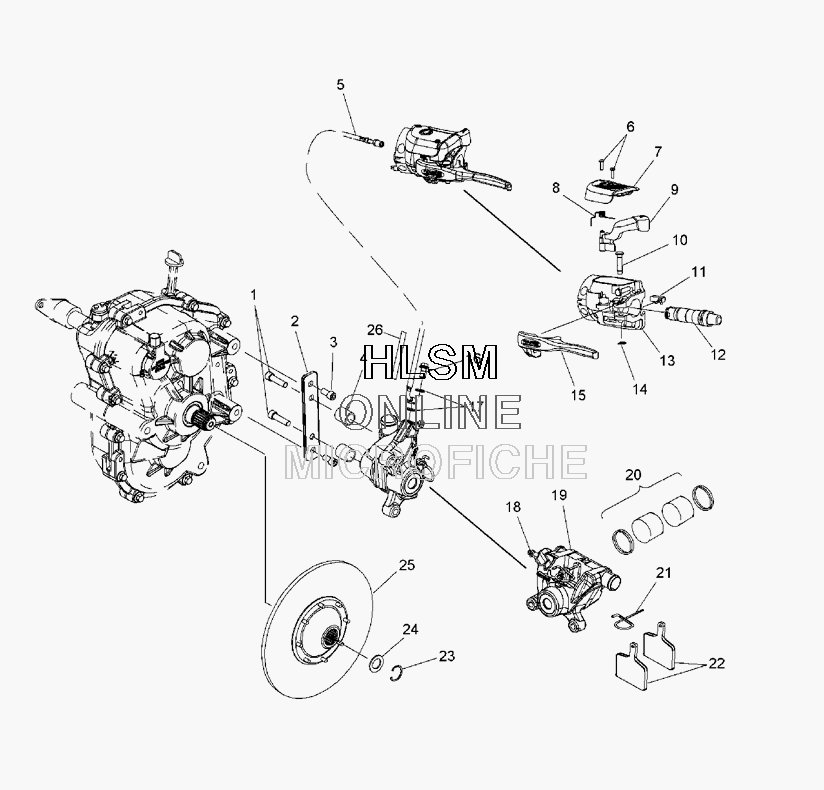

BRAKE ASSEMBLY для Polaris WIDETRACK LX AND EURO (S09SU4BSBE) - 2009 года выпуска

№

Артикул

Название
1

2203537 KIT-BOLT, SHCS, 3/8-16X1.75 (2 PER KIT)

KIT-BOLT, SHCS, 3/8-16X1.75 (2 PER KIT)

4 370 ₽
2

2203535 KIT-MNT BRKT

KIT-MNT BRKT

11 440 ₽
3

7518798 SCR-3/8-16X.75 HXSOC, W/PATCH

SCR-3/8-16X.75 HXSOC, W/PATCH

250 ₽
4

2203536 KIT-SPACERS (2 PER KIT)

KIT-SPACERS (2 PER KIT)

10 190 ₽
5

2203534 KIT-BRAKELINE, WT

KIT-BRAKELINE, WT

33 280 ₽
6

2201254 KIT, COVER SCREW

KIT, COVER SCREW

3 120 ₽
7

2202837 KIT-COVER ASM 4 #98-17061 (INCL. GASKET)

KIT-COVER ASM 4 #98-17061 (INCL. GASKET)

17 680 ₽
8

2201250 KIT, PARK LEVER SPRING

KIT, PARK LEVER SPRING

3 950 ₽
9

2201251 KIT, PARK LEVER AND SPRING

KIT, PARK LEVER AND SPRING

8 320 ₽
10

2201946 KIT-PIVOT PIN, ALUM W/SNAP RING (INCL. 14)

KIT-PIVOT PIN, ALUM W/SNAP RING (INCL. 14)

3 330 ₽
11

2202786 KIT-STOPLIGHT SWITCH 98-16195

KIT-STOPLIGHT SWITCH 98-16195

17 680 ₽
12

2202783 KIT-5/8'' CARTRIDGE 98-16193

KIT-5/8'' CARTRIDGE 98-16193

45 760 ₽
13

2202784 KIT-RESERVOIR, 98-15657

KIT-RESERVOIR, 98-15657

20 800 ₽
14

2201945 KIT-SNAP RING

KIT-SNAP RING

1 460 ₽
15

2201943 KIT-LEVER, 3 NOTCH/PIN/RING (INCL. 10, 14)

KIT-LEVER, 3 NOTCH/PIN/RING (INCL. 10, 14)

10 400 ₽
16

2203392 KIT-M10X1.25 BANJO

KIT-M10X1.25 BANJO

3 750 ₽
17

2203393 KIT-STATOSEAL WASHER (2 PER KIT)

KIT-STATOSEAL WASHER (2 PER KIT)

3 330 ₽
18

2202205 KIT-BLEEDER FITTING

KIT-BLEEDER FITTING

6 240 ₽
19

2203533 KIT, BRAKE CALIPER

KIT, BRAKE CALIPER

70 720 ₽
20

2202207 KIT-PISTON/SEAL

KIT-PISTON/SEAL

19 760 ₽
21

2202206 KIT-PIN RETAINING

KIT-PIN RETAINING

4 370 ₽
22

2203532 KIT-BRAKE PAD, LOW PROF, TYPE 94 (INCL. 21)

KIT-BRAKE PAD, LOW PROF, TYPE 94 (INCL. 21)

22 880 ₽
23

7710436 RING, RETAINING

RING, RETAINING

460 ₽
24

7555922 BUSHING, MACH

BUSHING, MACH

1 310 ₽
25

1911276 BRAKE DISK

BRAKE DISK

47 840 ₽
26

5811763 TAPE, FOIL1.5''X12''3M1430/5.5MIL

TAPE, FOIL1.5''X12''3M1430/5.5MIL

670 ₽
