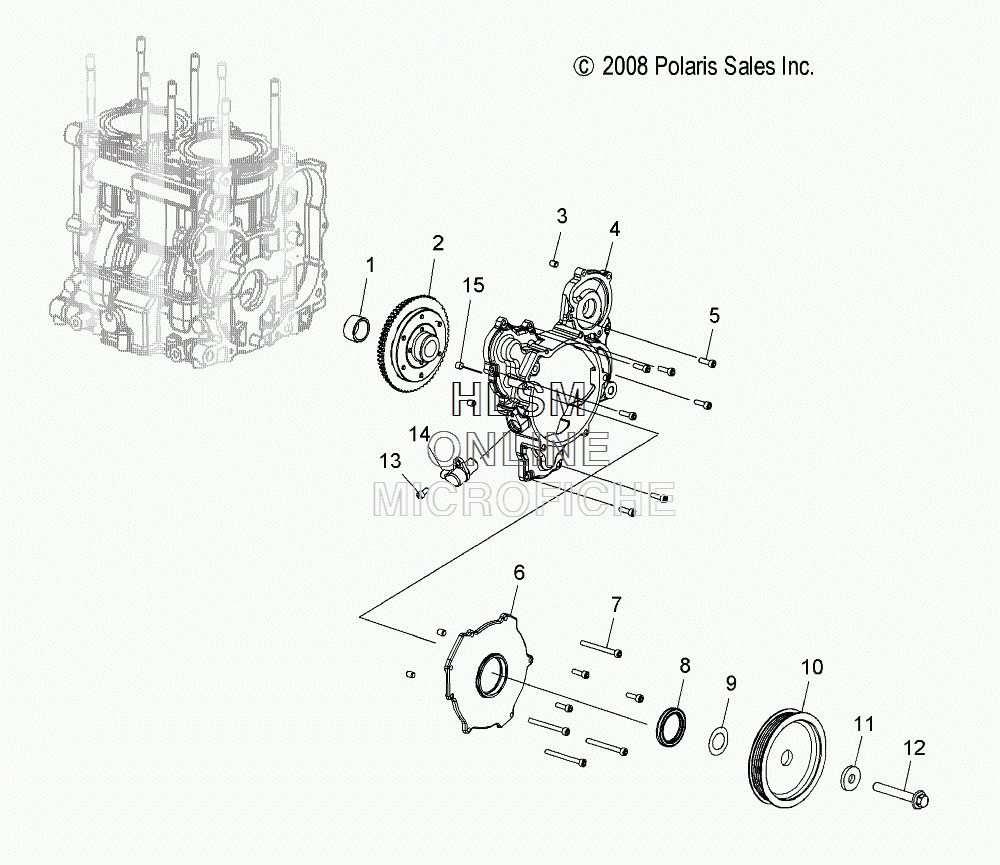

DRIVE GEAR W/ PULLEY для Polaris TURBO IQ LX [S11PD7FSL] - 2011 года выпуска
-
№АртикулНазвание
-
10451579 BEARING, NEEDLEBEARING, NEEDLE
-
20452927 FREE RUNFREE RUN
-
30451447 SLEEVE, CENTERINGSLEEVE, CENTERING
-
40452922 COVER, FRONTCOVER, FRONT
-
50451542 BOLTBOLT
-
60452923 COVER, GENERATORCOVER, GENERATOR
-
70451570 BOLTBOLT
-
80452924 SEAL, OILSEAL, OIL
-
90453026 WASHER, LOCKWASHER, LOCK
-
100452962 PULLEYPULLEY
-
110452964 WASHER, GENERATORWASHER, GENERATOR
-
120452965 BOLTBOLT
-
130452957 BOLTBOLT
-
140452956 SENSOR, SPEEDSENSOR, SPEED
-
153514557 BUSHING, GEAR SHAFT SUPPORTBUSHING, GEAR SHAFT SUPPORT
