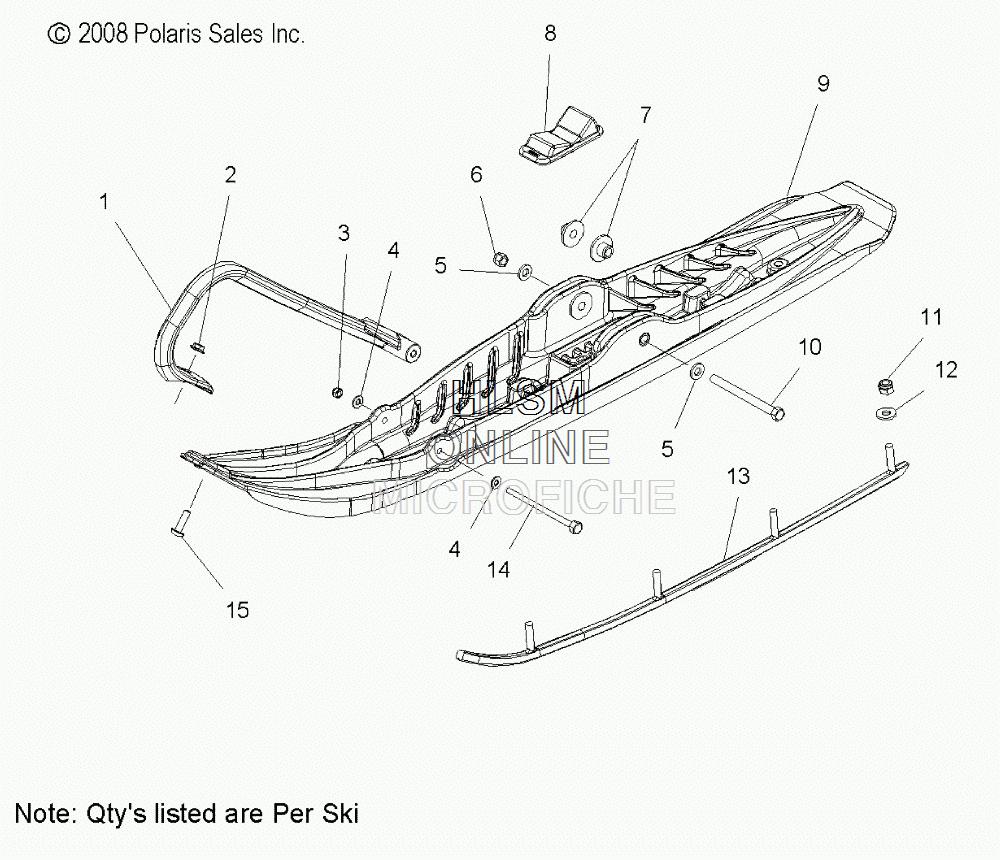

SKI ASSEMBLY для Polaris TURBO IQ LX [S11PD7FSL] - 2011 года выпуска
-
№АртикулНазвание
-
15435681-070 TOE, PLASTIC SKI, BLACKTOE, PLASTIC SKI, BLACK
-
27542321 NUT, FLANGENUT, FLANGE
-
37542122 NUT, NYLOKNUT, NYLOK
-
47558301 WASHER, FLATWASHER, FLAT
-
57556130 WASHERWASHER
-
67547263 NUT, NYLOKNUT, NYLOK
-
75134797 BUSHINGBUSHING
-
85413116 STOP, SKI RUBBERSTOP, SKI RUBBER
-
91822933-070 ASM., SKI, PLASTIC, BLACK (INCL. 7)ASM., SKI, PLASTIC, BLACK (INCL. 7)
-
107518481 SCREWSCREW
-
117542324 NUT, NYLOKNUT, NYLOK
-
127555843 WASHER, FLATWASHER, FLAT
-
132875954 KIT, SKAG, SINGLE, 3 INCH, 60 DEGREE (PAIR)KIT, SKAG, SINGLE, 3 INCH, 60 DEGREE (PAIR)
-
147518047 SCREWSCREW
-
157516317 SCREWSCREW
