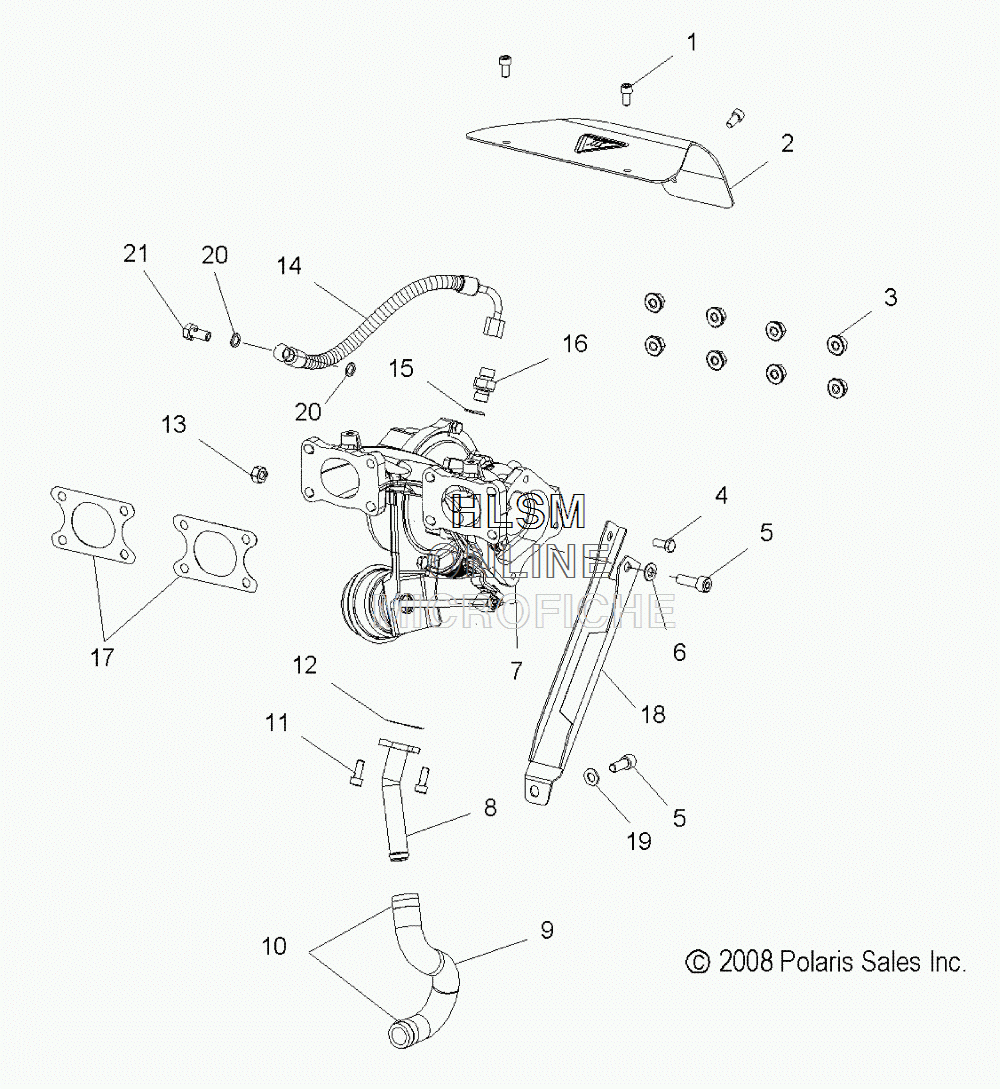

TURBO для Polaris TURBO IQ LX [S11PD7FSL] - 2011 года выпуска
-
№АртикулНазвание
-
10453994 BOLTBOLT
-
20452949 SHIELD, HEATSHIELD, HEAT
-
30451503 NUTNUT
-
40453174 BOLTBOLT
-
50452973 BOLTBOLT
-
60452980 WASHERWASHER
-
70452947 TURBO CHARGERTURBO CHARGER
-
80452990 RETURN, FLANGE OILRETURN, FLANGE OIL
-
90453176 HOSE, OIL RETURNHOSE, OIL RETURN
-
100452988 CLAMP, HOSECLAMP, HOSE
-
110451546 BOLTBOLT
-
120452948 GASKETGASKET
-
130452968 NUTNUT
-
140452989 HOSE, OILHOSE, OIL
-
150451514 SEALSEAL
-
160453177 FITTINGFITTING
-
170451515 GASKET, EXHAUSTGASKET, EXHAUST
-
180452978 BRACKET, TURBOBRACKET, TURBO
-
190451527 WASHERWASHER
-
207556372 WASHER, COPPER SEALINGWASHER, COPPER SEALING
-
210451385 SCREWSCREW
