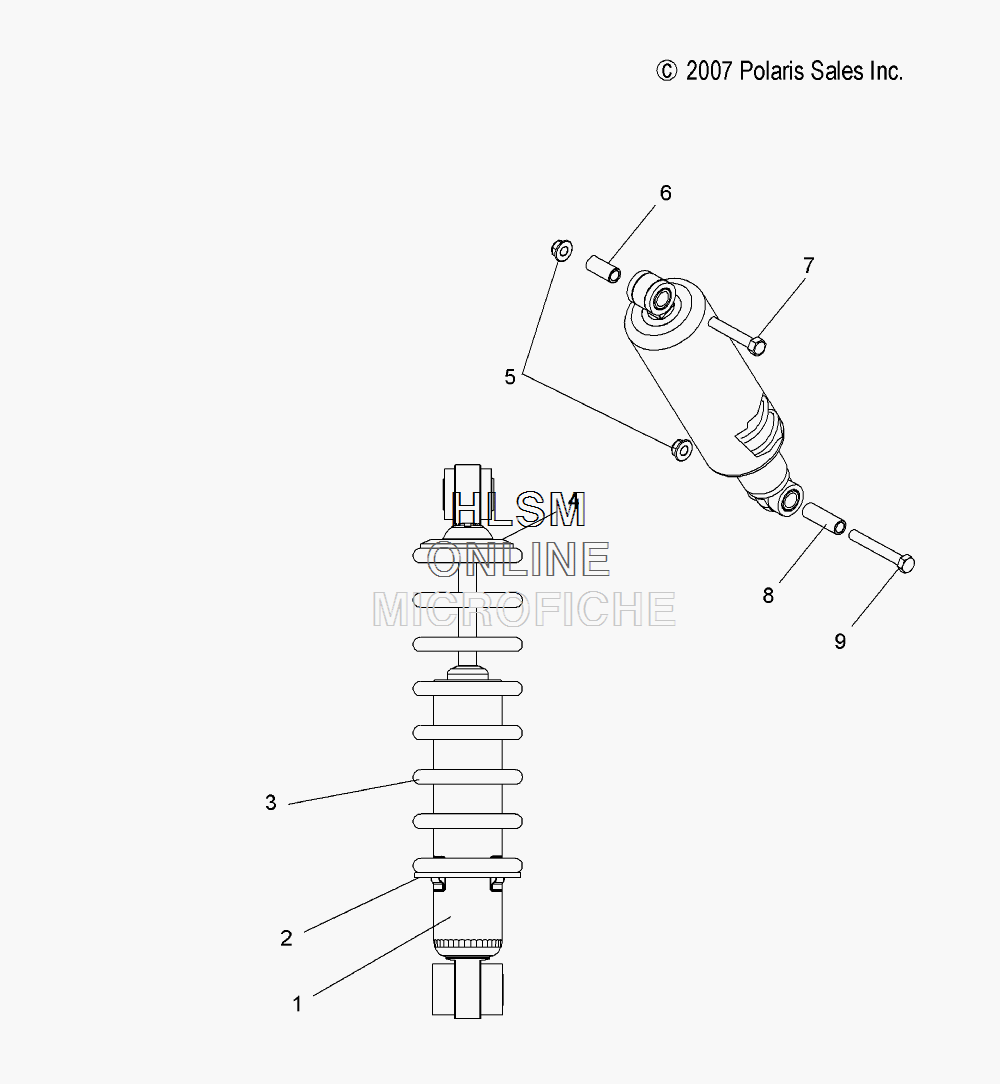

SUSPENSION - FRONT SHOCK TRACK для Polaris 600 IQ SHIFT [S12PB6HSA] - 2012 года выпуска
-
№АртикулНазвание
-
17043280 SHOCK, FRONT TRACK, ARVIN, MPVSHOCK, FRONT TRACK, ARVIN, MPV
-
25245067 RETAINER, SPRING, PLATEDRETAINER, SPRING, PLATED
-
37042050-067 SPRING, COMPRESSION (BLACK)SPRING, COMPRESSION (BLACK)
-
45630580 RETAINER, SLOTTED SPRING, CASTRETAINER, SLOTTED SPRING, CAST
-
57547263 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
65333905 SLEEVESLEEVE
-
77515433 SCREWSCREW
-
85333906 SLEEVESLEEVE
-
97515417 SCREWSCREW
