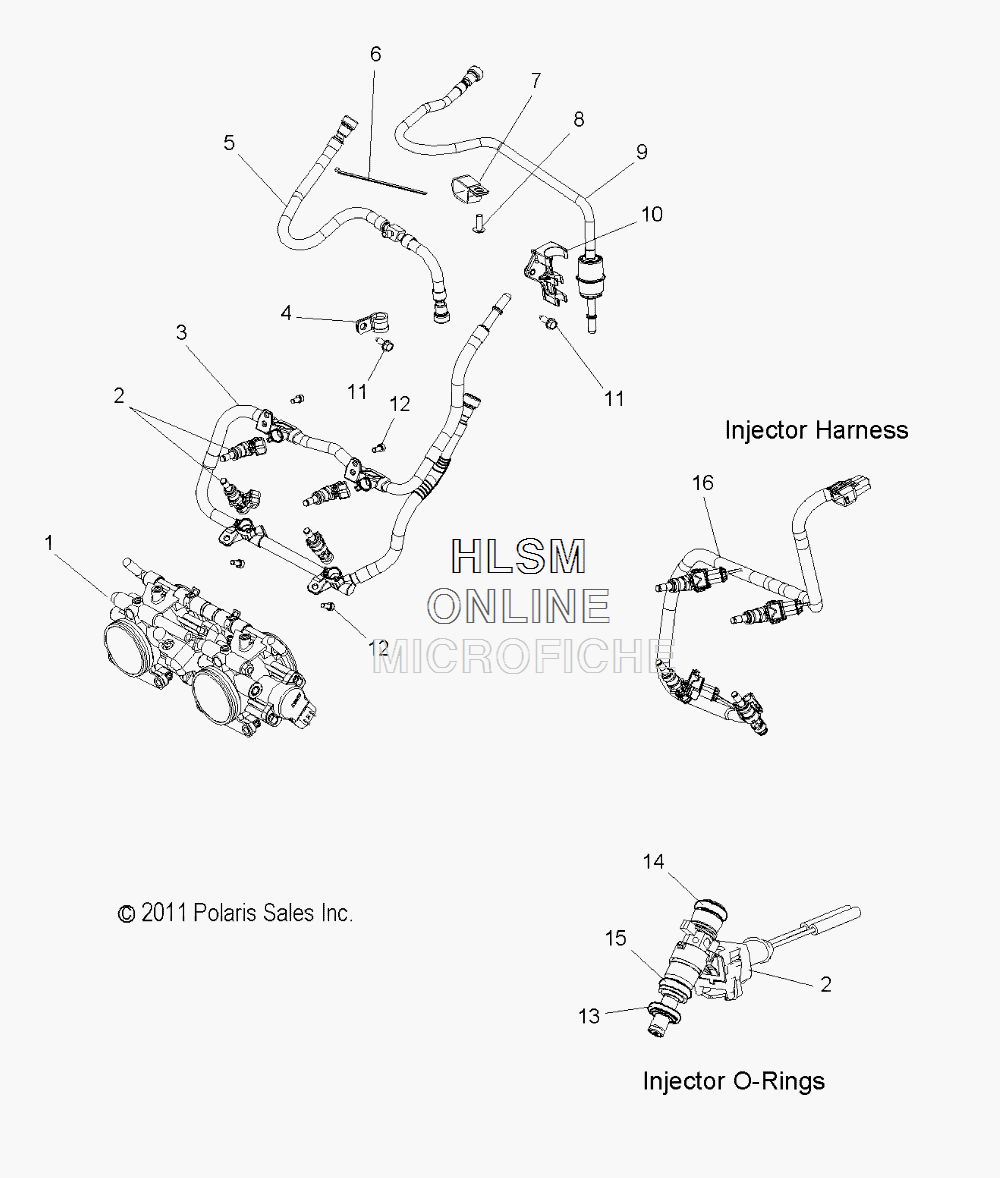

THROTTLE BODY ASSEMBLY W/RAIL AND LINES для Polaris 600 IQ SHIFT [S12PB6HSA] - 2012 года выпуска
-
№АртикулНазвание
-
11203213 ASM., THROTTLE BODYASM., THROTTLE BODY
-
22203894-015 KIT, INJECTOR, RED (INCLUDES 1 INJECTOR PER KIT)KIT, INJECTOR, RED (INCLUDES 1 INJECTOR PER KIT)
-
22203894-027 KIT, INJECTOR, BLUE (INCLUDES 1 INJECTOR PER KIT)KIT, INJECTOR, BLUE (INCLUDES 1 INJECTOR PER KIT)
-
22203894-053 KIT, INJECTOR, YELLOW (INCLUDES 1 INJECTOR PER KIT)KIT, INJECTOR, YELLOW (INCLUDES 1 INJECTOR PER KIT)
-
32520572 ASM., FUEL RAILASM., FUEL RAIL
-
47080573 CLAMP, RUBBER COATEDCLAMP, RUBBER COATED
-
52520648 ASM., FUEL LINE, RETURNASM., FUEL LINE, RETURN
-
67080138 CABLE TIECABLE TIE
-
77081364 CLAMP, DOUBLE TUBECLAMP, DOUBLE TUBE
-
87517916 SCREWSCREW
-
92520647 ASM., FUEL LINE, FILTERASM., FUEL LINE, FILTER
-
101203256 ASM., FUEL FILTER RETAINERASM., FUEL FILTER RETAINER
-
105812996 PAD, FUEL FILTERPAD, FUEL FILTER
-
117512095 SCREWSCREW
-
127517431 SCREWSCREW
-
135436287 BUSHING, RUBBER (GREEN) (1 PER KIT)BUSHING, RUBBER (GREEN) (1 PER KIT)
-
141500198 O-RING (BLACK) (1 PER KIT)O-RING (BLACK) (1 PER KIT)
-
155412891 O-RING (BROWN) (1 PER KIT)O-RING (BROWN) (1 PER KIT)
-
164011756 HARNESS, IGNITION (INCL. INJECTORS)HARNESS, IGNITION (INCL. INJECTORS)
