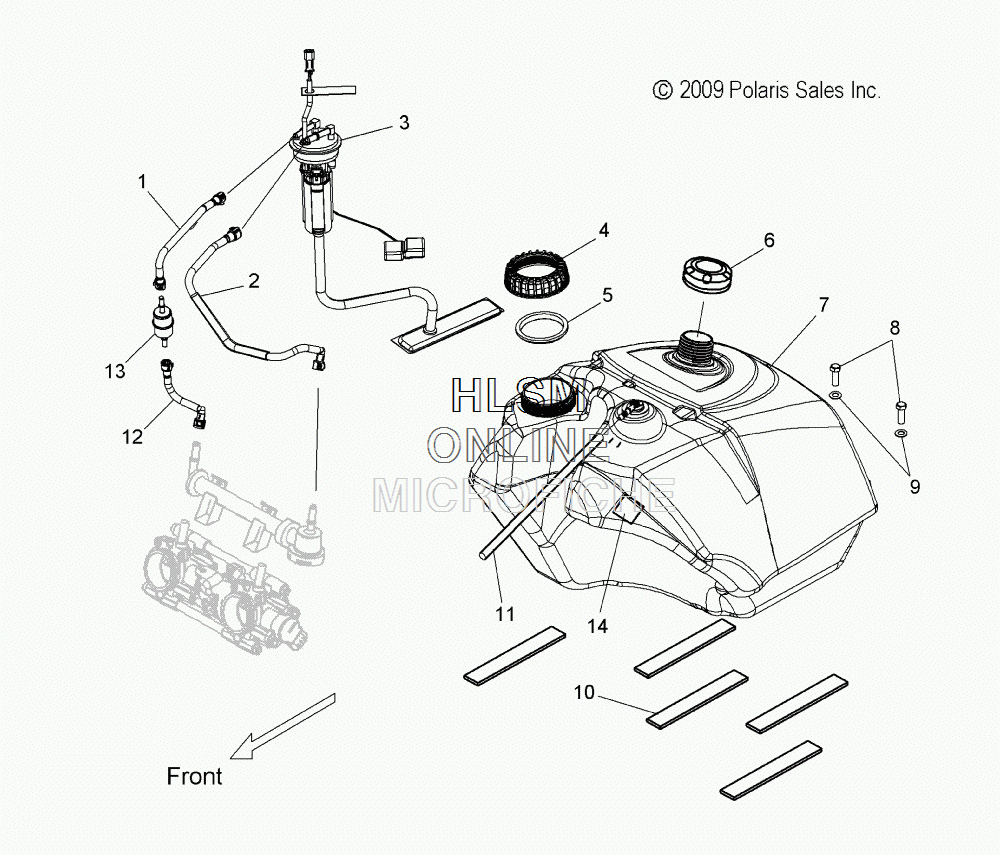

FUEL TANK W/FUEL LINES для Polaris FS WIDETRAK IQ INTL [S12PU7EEL] - 2012 года выпуска
-
№АртикулНазвание
-
12520920 ASM., FUEL LINE, FILTER TO TANK W/WRAPASM., FUEL LINE, FILTER TO TANK W/WRAP
-
15521745-150 WRAP, WEAR RESISTWRAP, WEAR RESIST
-
22520919 ASM., FUEL LINE, RETURN W/WRAPASM., FUEL LINE, RETURN W/WRAP
-
25521745-150 WRAP, WEAR RESISTWRAP, WEAR RESIST
-
32520862 ASM., PUMP/FLANGE, STD. 3 BAR (ALSO ORDER GASKET #5)ASM., PUMP/FLANGE, STD. 3 BAR (ALSO ORDER GASKET #5)
-
32204375 KIT, FUEL PUMP INTAKE, WDTRKKIT, FUEL PUMP INTAKE, WDTRK
-
35437046 FLOAT, FUEL SENDERFLOAT, FUEL SENDER
-
45436628 NUT, PFANUT, PFA
-
55413063 GASKET, PFAGASKET, PFA
-
65435534 CAP, FUEL TANKCAP, FUEL TANK
-
72520861 ASM., FUEL TANK (ALSO ORDER GASKET #5)ASM., FUEL TANK (ALSO ORDER GASKET #5)
-
87512277 BOLTBOLT
-
97555960 WASHER, FLATWASHER, FLAT
-
105810290 PADPAD
-
118450126-72 LINE, VENTLINE, VENT
-
122520887 ASM., FUEL LINE, RAIL, S/PASM., FUEL LINE, RAIL, S/P
-
132520424 FILTER, FUELFILTER, FUEL
-
145811716 PAD, RUBBERPAD, RUBBER
