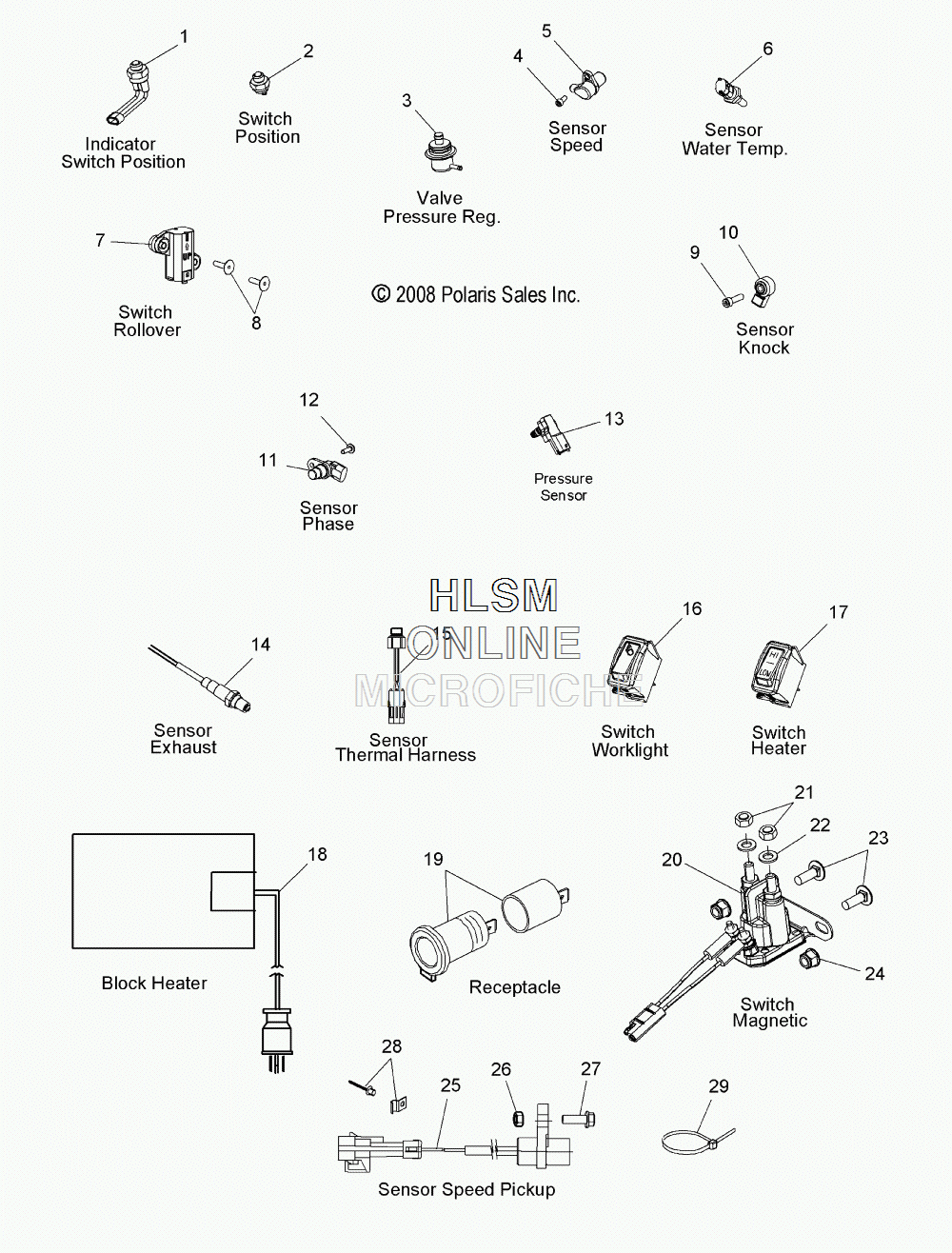

SENSORS - SWITCHES - COMPONENTS для Polaris FS WIDETRAK IQ INTL [S12PU7EEL] - 2012 года выпуска
-
№АртикулНазвание
-
14011340 SWITCH, POSITIONSWITCH, POSITION
-
24011005 POSITION, SWITCH INDICATORPOSITION, SWITCH INDICATOR
-
30451351 VALVE, PRESSURE REGULATORVALVE, PRESSURE REGULATOR
-
40452957 BOLTBOLT
-
50452956 SENSOR, SPEED (ENGINE)SENSOR, SPEED (ENGINE)
-
60451350 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
74011026 SWITCH, ROLLOVERSWITCH, ROLLOVER
-
87661146 RIVETRIVET
-
90451565 SCREWSCREW
-
100451509 SENSOR, KNOCKSENSOR, KNOCK
-
110451354 SENSOR, PHASESENSOR, PHASE
-
120451998 BOLTBOLT
-
130452959 SENSOR, PRESSURE (FS THROTTLE BODY)SENSOR, PRESSURE (FS THROTTLE BODY)
-
144011040 SENSOR, OXYGENSENSOR, OXYGEN
-
154011698 SENSOR, THERMAL HARNESSSENSOR, THERMAL HARNESS
-
164011074 SWITCH, WORKLIGHT, ON/OFFSWITCH, WORKLIGHT, ON/OFF
-
174011864 SWITCH, HEATER, HI/LOSWITCH, HEATER, HI/LO
-
182876200 KIT, BLOCK HEATER, SNOW, 240 V (EURO)KIT, BLOCK HEATER, SNOW, 240 V (EURO)
-
194010638 RECEPTACLE, POD MOUNT, 12 VRECEPTACLE, POD MOUNT, 12 V
-
195411744 CAP, RUBBER, 12 V RECEPTACLECAP, RUBBER, 12 V RECEPTACLE
-
204012358 SWITCH, MAGNETICSWITCH, MAGNETIC
-
217542105 NUTNUT
-
227552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
237515203 BOLT, CARRIAGEBOLT, CARRIAGE
-
247542153 NUT, FLANGENUT, FLANGE
-
252410376 SENSOR, SPEED PICKUPSENSOR, SPEED PICKUP
-
267542122 NUTNUT
-
277512113 BOLTBOLT
-
287080963 RETAINER, J-CLIPRETAINER, J-CLIP
-
287661637 RIVETRIVET
-
297080138 CABLE TIECABLE TIE
