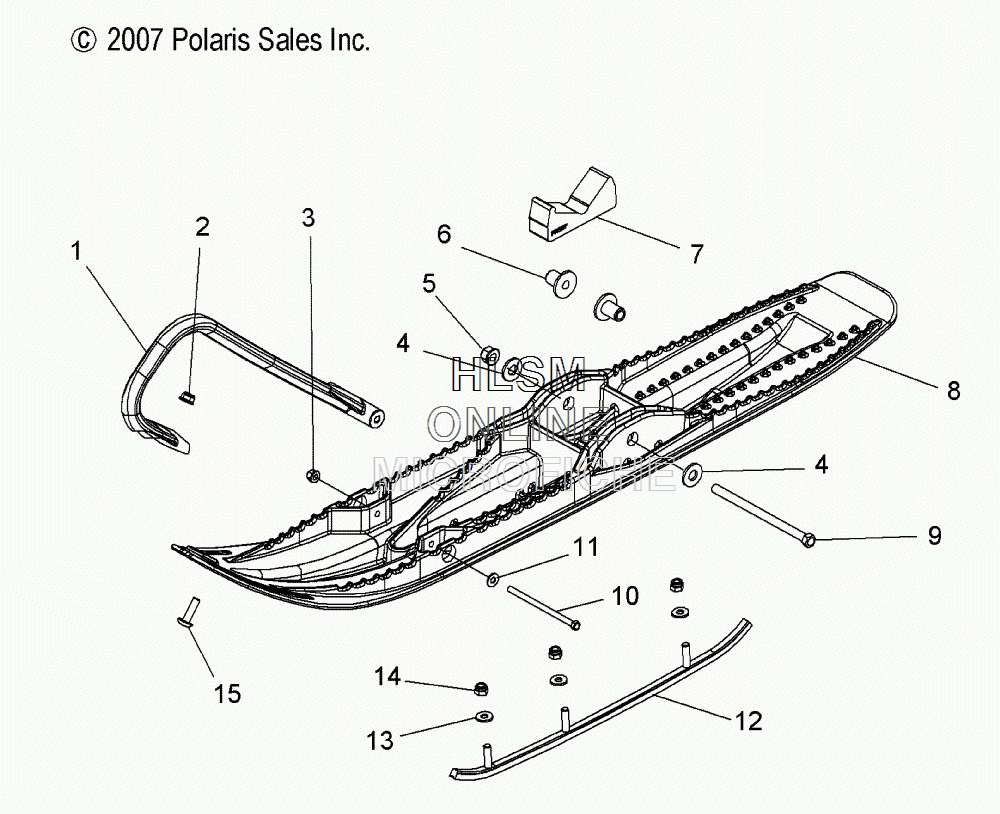

SKI ASSEMBLY для Polaris FS WIDETRAK IQ INTL [S12PU7EEL] - 2012 года выпуска
-
№АртикулНазвание
-
15435681-070 TOE, PLASTIC SKI (BLACK)TOE, PLASTIC SKI (BLACK)
-
27542343 NUT, FLANGENUT, FLANGE
-
37542153 NUT, NYLOKNUT, NYLOK
-
47556130 WASHERWASHER
-
57547263 NUT, NYLOKNUT, NYLOK
-
65134797 BUSHINGBUSHING
-
75412794 STOP, SKI RUBBERSTOP, SKI RUBBER
-
81822889-070 ASM., SKI, WIDE (BLACK) (INCL. 6)ASM., SKI, WIDE (BLACK) (INCL. 6)
-
97518481 SCREWSCREW
-
107518655 SCREWSCREW
-
117558301 WASHER, FLATWASHER, FLAT
-
122875723 KIT, SKAG, SINGLE, 3 INCH, 60 DEGREE (PAIR)KIT, SKAG, SINGLE, 3 INCH, 60 DEGREE (PAIR)
-
137555843 WASHER, FLATWASHER, FLAT
-
147542324 NUT, NYLOKNUT, NYLOK
-
157518070 SCREWSCREW
