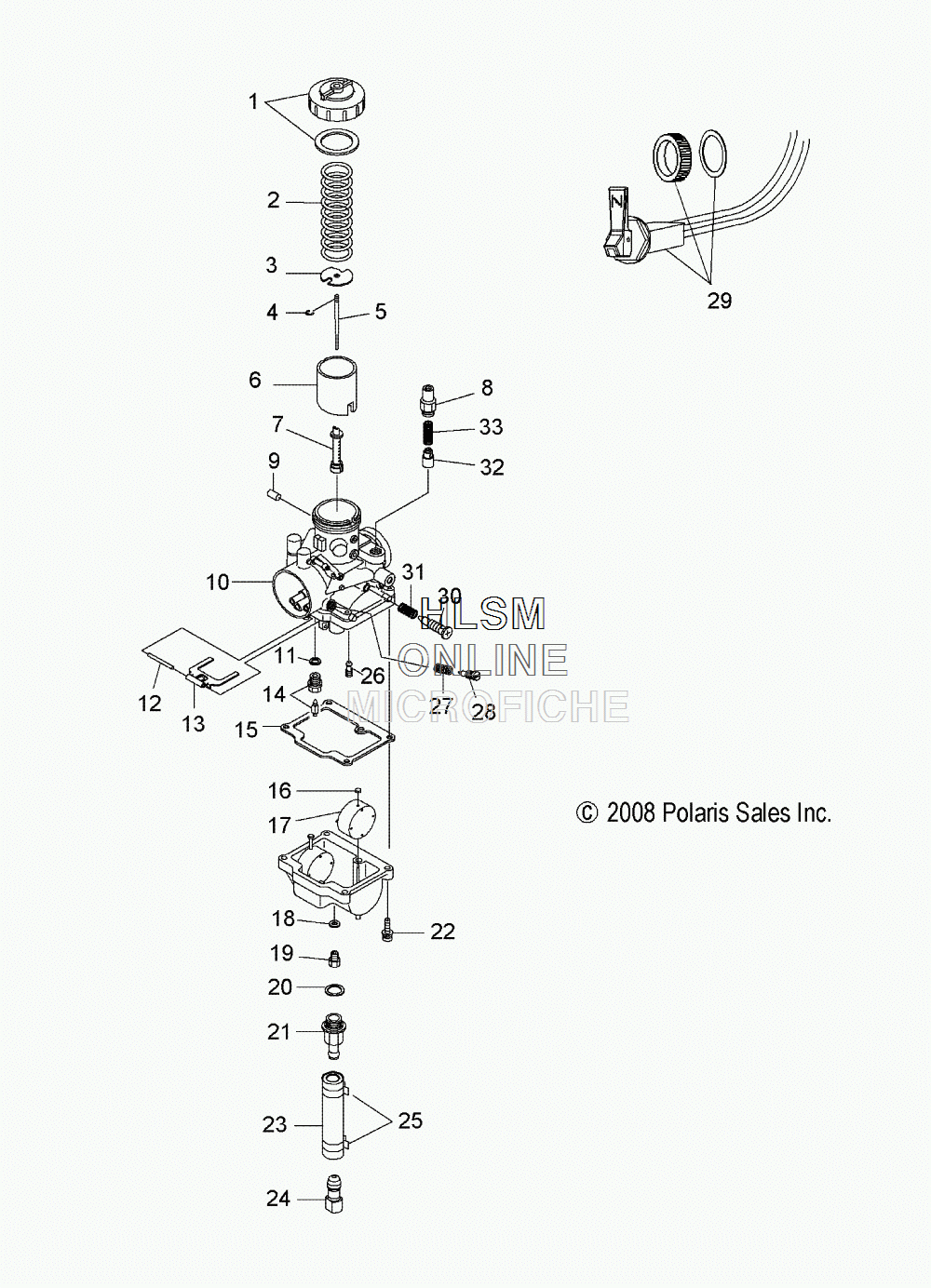

CARBURETOR W/CHOKE для Polaris WIDETRAK LX INTL [S14SU4BEL] - 2014 года выпуска
-
№АртикулНазвание
-
13130184 ASM., TOP, MIXING CHAMBERASM., TOP, MIXING CHAMBER
-
23130318 SPRING, THROTTLESPRING, THROTTLE
-
33130027 PLATE, THROTTLEPLATE, THROTTLE
-
43130508 E-RINGE-RING
-
53130423 NEEDLE, JET, 6EJ26NEEDLE, JET, 6EJ26
-
63130372 VALVE, THROTTLE, 3.0VALVE, THROTTLE, 3.0
-
73130160 JET, NEEDLE, P-6, 166JET, NEEDLE, P-6, 166
-
83130199 CAP, PLUNGERCAP, PLUNGER
-
93130479 CAPCAP
-
103130711 ASM., CARBURETOR (INCL. 1-22,26-28,30-33)ASM., CARBURETOR (INCL. 1-22,26-28,30-33)
-
113130017 PACKING, NEEDLE VALVEPACKING, NEEDLE VALVE
-
123130361 PIN, FLOATPIN, FLOAT
-
133130018 ARM, FLOATARM, FLOAT
-
143131146 VALVE, NEEDLE, 1.5VALVE, NEEDLE, 1.5
-
153130020 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
163130237 CAPCAP
-
173130430 ASM., FLOATASM., FLOAT
-
183130014 WASHERWASHER
-
193130122 JET, MAIN, #195JET, MAIN, #195
-
203130239 O-RINGO-RING
-
213130573 NIPPLENIPPLE
-
223130025 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
238450123-40 HOSE, FUEL (SVC)HOSE, FUEL (SVC)
-
245431893 PLUG, TRAPPLUG, TRAP
-
257080534 CLAMP, HOSECLAMP, HOSE
-
263130066 JET, PILOT, #35JET, PILOT, #35
-
273130012 SPRING, AIR ADJUSTERSPRING, AIR ADJUSTER
-
283130011 SCREW, AIRSCREW, AIR
-
297080290 CABLE, CHOKE CONTROLCABLE, CHOKE CONTROL
-
295432944 NUT, CHOKENUT, CHOKE
-
297571610 WASHER, INTERLOCKWASHER, INTERLOCK
-
303130437 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
313130010 SPRING, THROTTLE ADJUSTERSPRING, THROTTLE ADJUSTER
-
323130328 PLUNGERPLUNGER
-
333130006 SPRING, PLUNGERSPRING, PLUNGER
