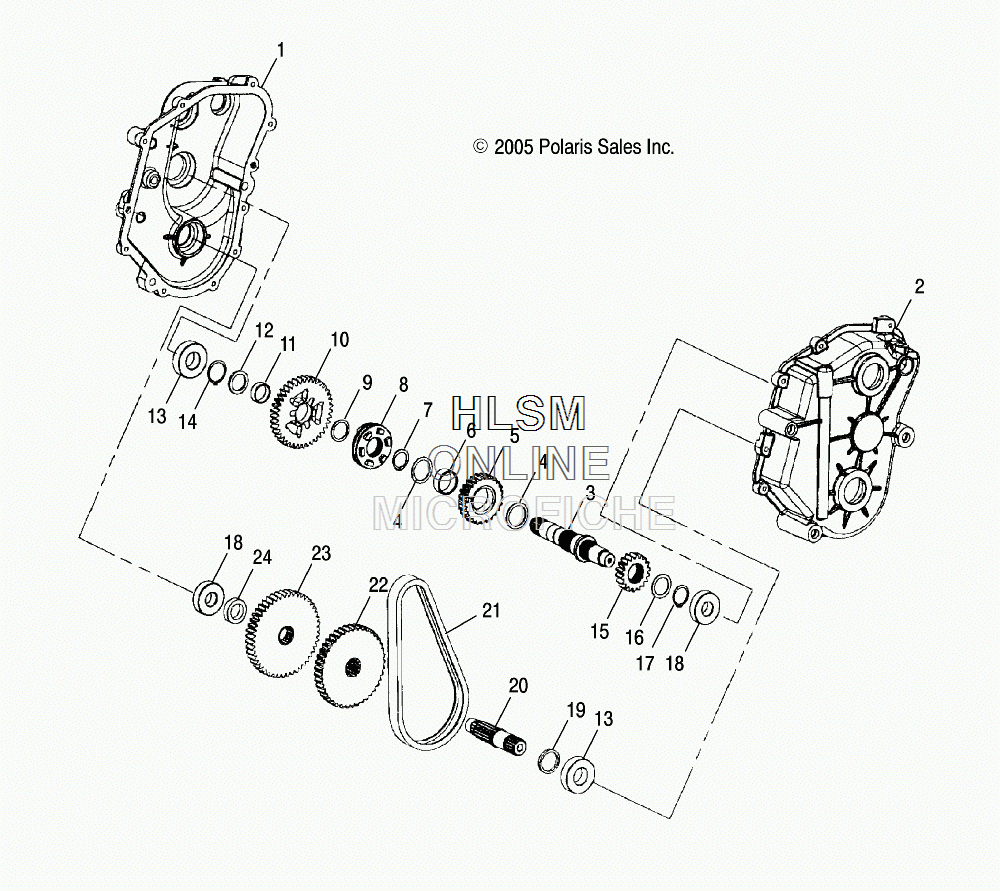

GEARCASE ASSEMBLY (2 OF 2) для Polaris WIDETRAK LX INTL [S14SU4BEL] - 2014 года выпуска
-
№АртикулНазвание
-
--1332463 ASM., GEARCASE, BASIC (INCL. 1-24 AND ALL FROM GEARCASE (1 OF 2) PAGE.)ASM., GEARCASE, BASIC (INCL. 1-24 AND ALL FROM GEARCASE (1 OF 2) PAGE.)
-
13234474 GEARCASE, RIGHT HANDGEARCASE, RIGHT HAND
-
23234174 GEARCASE, LEFT HANDGEARCASE, LEFT HAND
-
33233514 SHAFT, REVERSESHAFT, REVERSE
-
47556430 WASHER, THRUSTWASHER, THRUST
-
53233513 SPROCKET, 25TSPROCKET, 25T
-
63514590 BEARING, NEEDLEBEARING, NEEDLE
-
77710606 RING, RETAININGRING, RETAINING
-
83233512 DOG, ENGAGEMENT, L/RDOG, ENGAGEMENT, L/R
-
97556433 WASHER, THRUSTWASHER, THRUST
-
103233511 GEAR, 39TGEAR, 39T
-
113514589 BEARING, NEEDLEBEARING, NEEDLE
-
127556434 WASHER, THRUSTWASHER, THRUST
-
133514304 BEARING, BALLBEARING, BALL
-
147710602 RING, RETAINERRING, RETAINER
-
153233515 GEAR, 18TGEAR, 18T
-
167556432 WASHERWASHER
-
177710603 RING, RETAININGRING, RETAINING
-
183514594 BEARING, BALLBEARING, BALL
-
195135972 SPACERSPACER
-
203233521 SHAFT, OUTPUTSHAFT, OUTPUT
-
213221113 CHAINCHAIN
-
223233519 SPROCKET, 41T, 15T SPLINESPROCKET, 41T, 15T SPLINE
-
233233518 GEAR, 47TGEAR, 47T
-
245135973 SPACERSPACER
