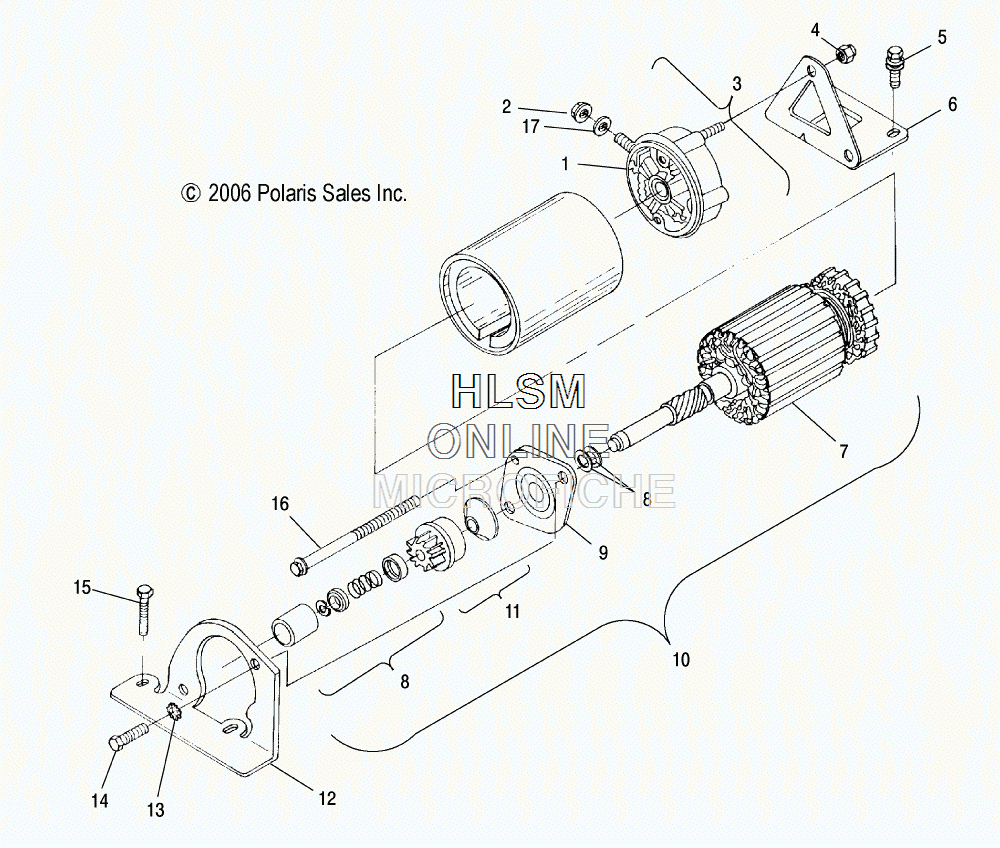

STARTING MOTOR ASSEMBLY для Polaris WIDETRAK LX INTL [S14SU4BEL] - 2014 года выпуска
-
№АртикулНазвание
-
12200759 KIT, BRUSH AND SPRINGKIT, BRUSH AND SPRING
-
27542105 NUTNUT
-
32200758 KIT, ASM., COMMUTATOR CAP (INCL. 1)KIT, ASM., COMMUTATOR CAP (INCL. 1)
-
47542153 NUT, NYLOKNUT, NYLOK
-
57516815 SCREWSCREW
-
65240956 BRACKET, STARTER, REARBRACKET, STARTER, REAR
-
72200756 KIT, ASM., ARMATUREKIT, ASM., ARMATURE
-
82200755 KIT, DRIVE HARDWAREKIT, DRIVE HARDWARE
-
92200757 KIT, ASM., DRIVE CAPKIT, ASM., DRIVE CAP
-
102410748 MOTOR, STARTER, DOMESTICMOTOR, STARTER, DOMESTIC
-
112200754 KIT, ASM., DRIVEKIT, ASM., DRIVE
-
125241271 BRACKET, STARTER, FRONTBRACKET, STARTER, FRONT
-
137552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
147512492 SCREWSCREW
-
157516730 SCREWSCREW
-
162200753 KIT, SCREWKIT, SCREW
-
177552801 WASHER, SPRINGWASHER, SPRING
