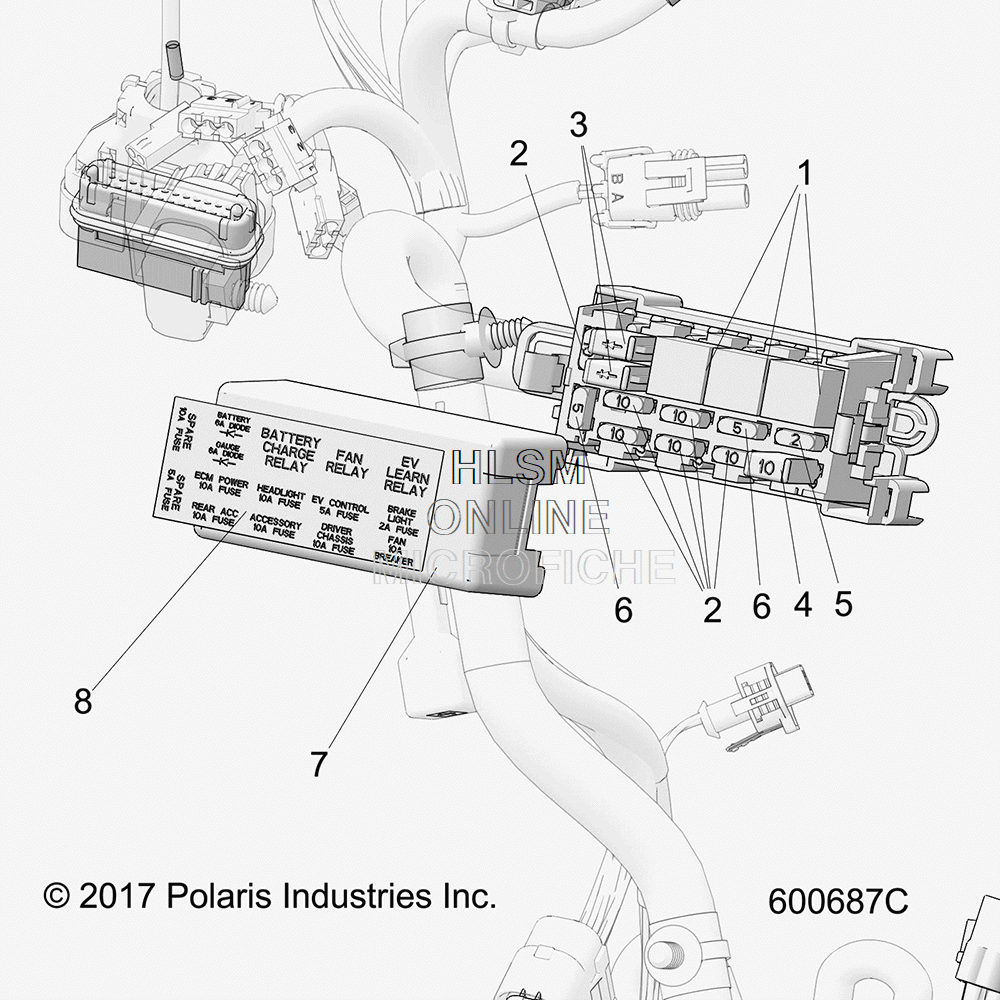

ELECTRICAL - IGNITION SYS. W/RELAY для Polaris 800 TITAN XC (S18FJP8) - 2018 года выпуска
-
№АртикулНазвание
-
14016819 RELAY-SPST, 12V, 20A, EPXY, HFARELAY-SPST, 12V, 20A, EPXY, HFA
-
22434016 FUSE-IGNITION, 10AMPFUSE-IGNITION, 10AMP
-
34011474 DIODE-6AMPDIODE-6AMP
-
44011371 BREAKER-CIRCUIT, 10AMPBREAKER-CIRCUIT, 10AMP
-
54010752 FUSE-2AMP, ATM, BLADE STYLE, MINIFUSE-2AMP, ATM, BLADE STYLE, MINI
-
64011652 FUSE-5AMP., MINI BLADEFUSE-5AMP., MINI BLADE
-
75438758 COVER-RELAY/FUSE CENTERCOVER-RELAY/FUSE CENTER
-
87186337 DECAL-RELAY/FUSE BLOCKDECAL-RELAY/FUSE BLOCK
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY BOX W/CABLES
- BRAKE ASSEMBLY
- BULKHEAD ASSEMBLY
- BUMPER - FRONT
- CARGO BOX OPTION
- CHASSIS - REAR ASSEMBLY
- CHASSIS ASSEMBLY W/RUNNING BOARDS
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- CONTROL ARMS W/SPINDLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- • ELECTRICAL - IGNITION SYS. W/RELAY
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SENSORS AND SWITCHES
- ELECTRICAL - SWITCHES- SENSORS AND COMPONENTS 2
- ELECTRICAL - WIRE HARNESS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVE ASM.
- FENDERS
- FUEL TANK
- GEARCASE ASSEMBLY (1 OF 2)
- GEARCASE ASSEMBLY (2 OF 2)
- HANDLEBAR ASSEMBLY
- HEADLIGHT ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- JACKSHAFT ASSEMBLY
- MASTER CYLINDER W/LEVER CONTROL
- MULTI-FUNCTION GAUGE
- NOSEPAN ASSEMBLY
- OIL BOTTLE ASSEMBLY
- OIL PUMP ASSEMBLY
- OWNER'S MANUAL W/ TOOL KIT
- RADIATOR ASSEMBLY
- REED VALVE W/THROTTLE BODY ADAPTOR
- SEAT ASSY. - DRIVER
- SHIFT LINKAGE ASSEMBLY 4X6
- SIDE PANELS
- SKI ASSEMBLY
- SNOW FLAP W/HITCH
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING - LOWER
- SUSPENSION - EXTENSION
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK
- SUSPENSION - IFS SHOCK HARDWARE
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK SVC PARTS
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - SWAYBAR
- TAILLIGHT
- THROTTLE BODY ASSEMBLY W/RAIL AND LINES
- THROTTLE CONTROL ASSEMBLY
- WATER PUMP
- WINDSHIELD
