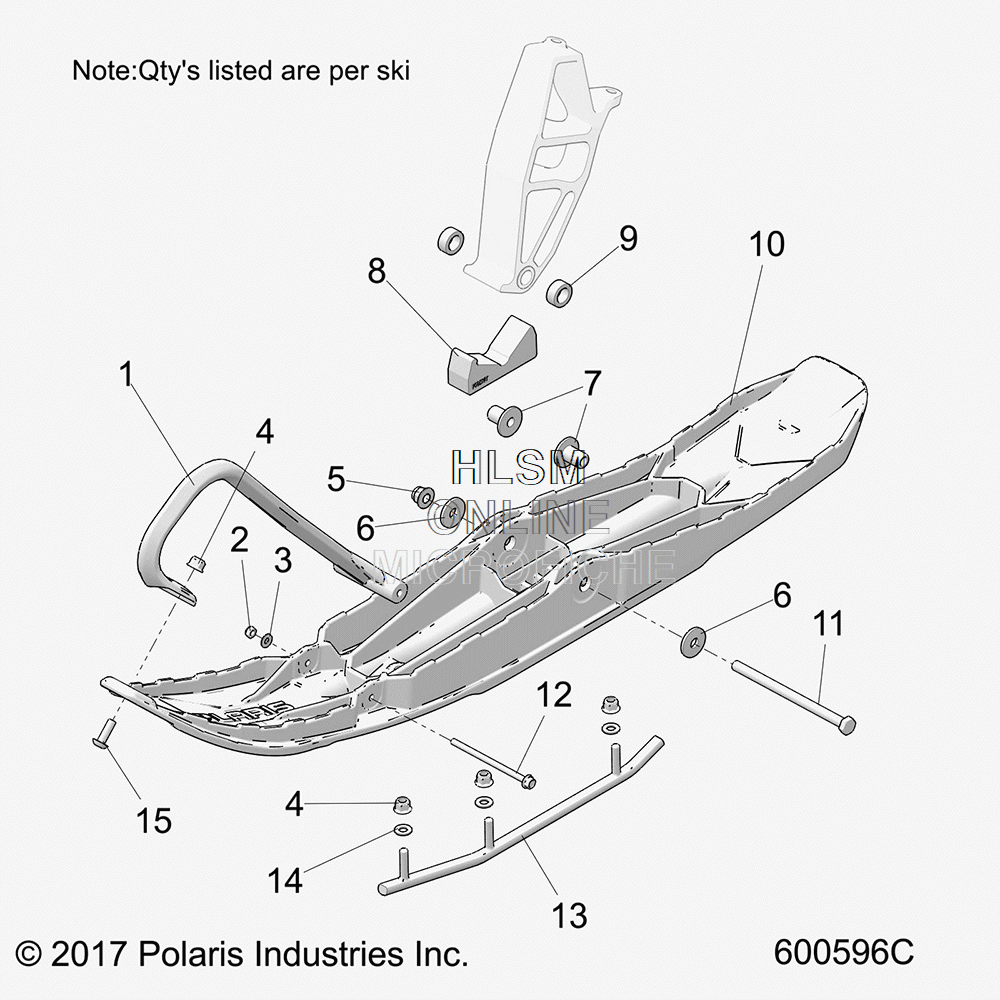

SKI ASSEMBLY для Polaris 800 TITAN XC (S18FJP8) - 2018 года выпуска
-
№АртикулНазвание
-
15435681-070 TOE, PLASTIC SKI, BLACKTOE, PLASTIC SKI, BLACK
-
27542153 NUT, NYLOKNUT, NYLOK
-
37558301 WASHER-1/4 SAE FLAT-YWASHER-1/4 SAE FLAT-Y
-
47542343 NUT, FLANGENUT, FLANGE
-
57547423 NUT-M10X1.5 HFN NYLOC ZODNUT-M10X1.5 HFN NYLOC ZOD
-
67556130 WASHER-.406X1.25X.125 BELLE-YWASHER-.406X1.25X.125 BELLE-Y
-
75136908 BUSHING, PLASTIC SKI, METRICBUSHING, PLASTIC SKI, METRIC
-
85412794 STOP, SKI RUBBER, RMKSTOP, SKI RUBBER, RMK
-
95137847 SPACERSPACER
-
101823660-070 ASM., SKI, WIDE, BLACK (INCL. 7)ASM., SKI, WIDE, BLACK (INCL. 7)
-
117519098 SCR-HH M10X1.5X155 8.8 ZODSCR-HH M10X1.5X155 8.8 ZOD
-
127518655 SCREWSCREW
-
132875723 KIT, SKAG, SINGLE, 3 IN, 60 DEG (PAIR)KIT, SKAG, SINGLE, 3 IN, 60 DEG (PAIR)
-
147555843 WASHER, FLATWASHER, FLAT
-
157518070 SCREWSCREW
