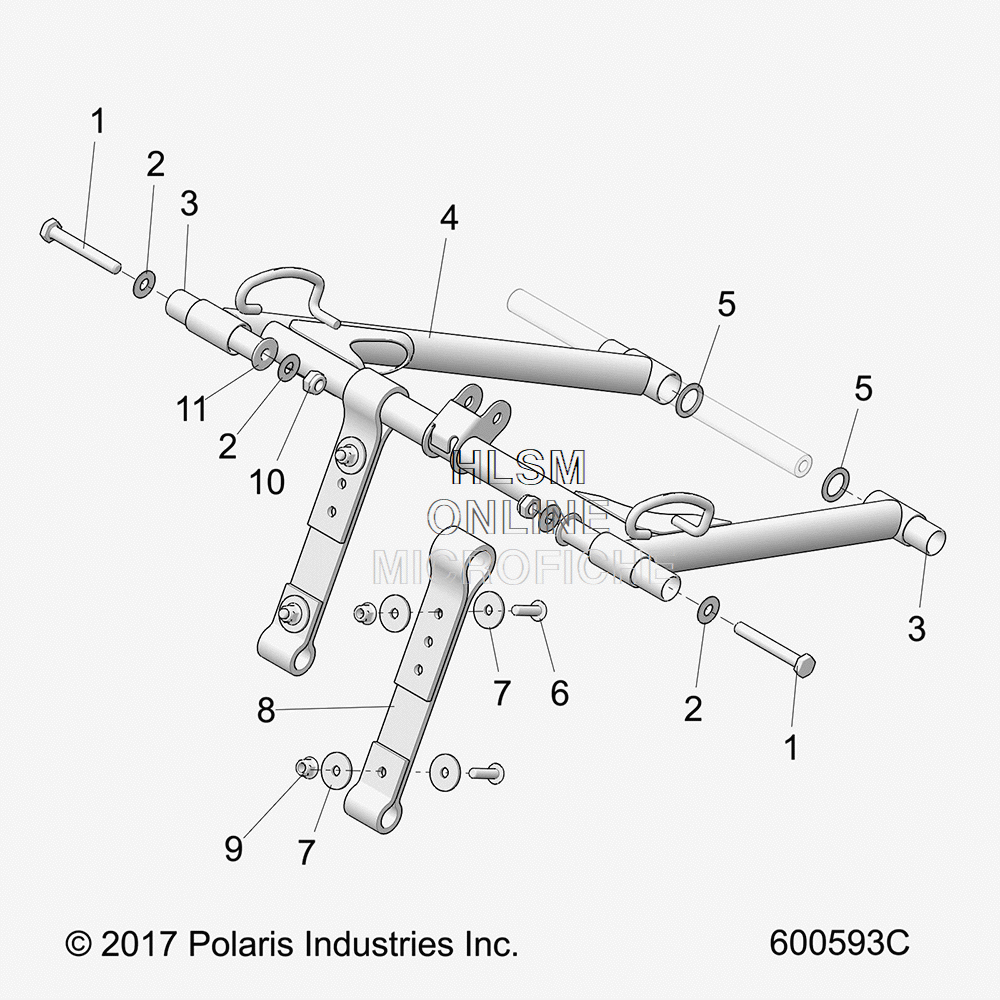

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 800 TITAN XC (S18FJP8) - 2018 года выпуска
-
№АртикулНазвание
-
15138648 SHAFT-PIVOT LWT LOWERSHAFT-PIVOT LWT LOWER
-
27556545 WASHERWASHER
-
35438875 BUSHING-PIVOTBUSHING-PIVOT
-
41543721-329 ASM., ARM, TORQUE, FRONT, BLACK (INCL. 3)ASM., ARM, TORQUE, FRONT, BLACK (INCL. 3)
-
57556483 WASHER-30MM ODX 21MM ID X 1.5WASHER-30MM ODX 21MM ID X 1.5
-
67518953 SCREWSCREW
-
77556175 WASHERWASHER
-
85414733 STRAP, LIMITERSTRAP, LIMITER
-
97547332 NUT, NYLOCKNUT, NYLOCK
-
107547442 NUTNUT
-
115138648 SHAFT, PIVOTSHAFT, PIVOT
