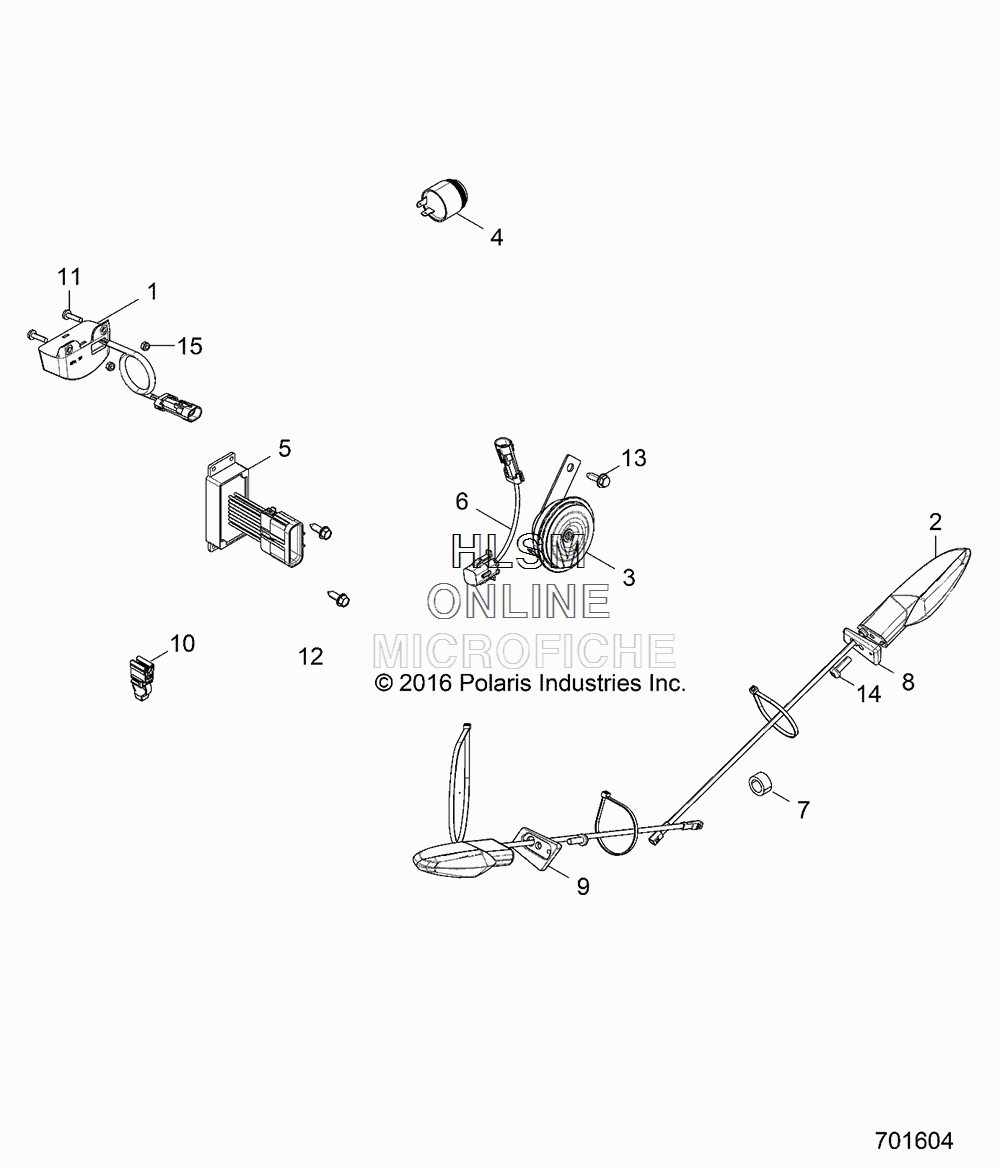

ELECTRICAL - ACCESSORY COMPONENTS для Polaris RZR XP 1000 TRACTOR ZUG [Z17VDS99CM] - 2017 года выпуска
-
№АртикулНазвание
-
12411278 LIGHT-LICENSE PLATE, TRACTR, BLACKLIGHT-LICENSE PLATE, TRACTR, BLACK
-
22413531 SIGNAL-TURN, FRONT, TRSIGNAL-TURN, FRONT, TR
-
34011579 HORN-DISCHORN-DISC
-
44013211 ALARM-BRAKE, WARNINGALARM-BRAKE, WARNING
-
54016552 MODULE-FLASH, TURN, TRAILER, TRCMODULE-FLASH, TURN, TRAILER, TRC
-
64016811 JUMPER, BRAKE SWITCH, RZR, TRJUMPER, BRAKE SWITCH, RZR, TR
-
75134403 SPCR-LP LIGHT, 5.0X8.0X4.0, ALSPCR-LP LIGHT, 5.0X8.0X4.0, AL
-
85263562-458 BRKT-TURN INDICATOR TR, LEFT HAND, MATTE BLACKBRKT-TURN INDICATOR TR, LEFT HAND, MATTE BLACK
-
95263563-458 BRKT-TURN INDICATOR TR, RIGHT HAND, MATTE BLACKBRKT-TURN INDICATOR TR, RIGHT HAND, MATTE BLACK
-
107081808 STRAP-CABLE TIE W/EDGE CLIPSTRAP-CABLE TIE W/EDGE CLIP
-
117512018 SCR-#10-24X3/4, PN/TR RD-TORX-YSCR-#10-24X3/4, PN/TR RD-TORX-Y
-
127517441 SCR-10X.75 TX PN PLST-243SCR-10X.75 TX PN PLST-243
-
137518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BKSCR-M6X1.0X20, HXHD, FLG, TDFM, BK
-
147518546 SCR-M6X1.0X20MM, TX, PH, 8.8-BSCR-M6X1.0X20MM, TX, PH, 8.8-B
-
157546601 NUT-M5X.8, HX NYL-YNUT-M5X.8, HX NYL-Y
