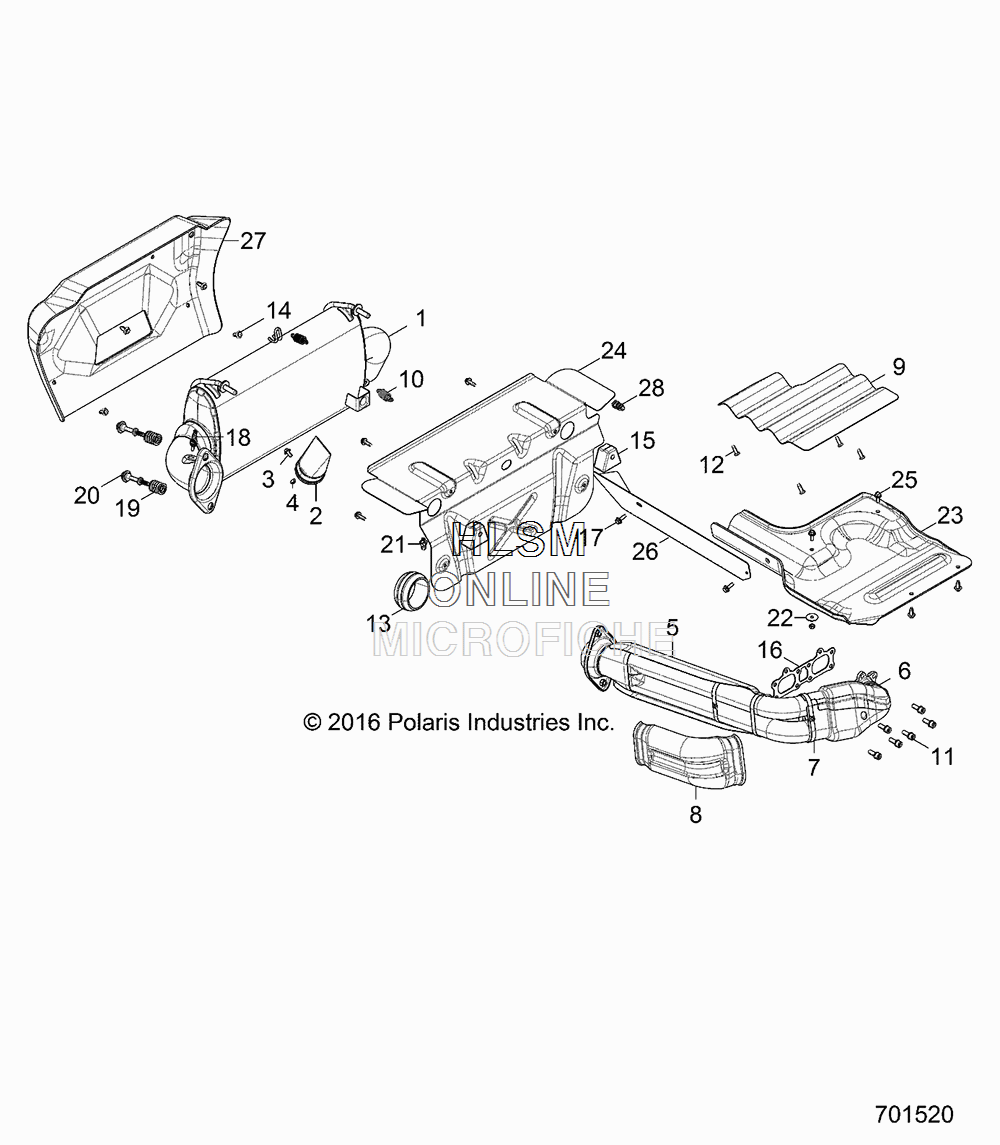

EXHAUST SYSTEM для Polaris RZR XP 1000 TRACTOR ZUG [Z17VDS99CM] - 2017 года выпуска
-
№АртикулНазвание
-
11262595 ASM-SILENCER (INCL. 2-4)ASM-SILENCER (INCL. 2-4)
-
21262390 ARRESTOR, SPARKARRESTOR, SPARK
-
37517257 SCREWSCREW
-
47547120 NUTNUT
-
51262599 ASM., HEADPIPE (INCL. 6-8)ASM., HEADPIPE (INCL. 6-8)
-
67081156 CLAMP-HEAT SHIELD, EXHAUSTCLAMP-HEAT SHIELD, EXHAUST
-
77081579 CLAMP-HEAT SHIELD, EXHAUSTCLAMP-HEAT SHIELD, EXHAUST
-
85257570 SHIELD-HEAT, HEADPIPE, OUTSIDESHIELD-HEAT, HEADPIPE, OUTSIDE
-
95262942 SHIELD-ACCESS PANELSHIELD-ACCESS PANEL
-
107041789 SPRING, EXHAUSTSPRING, EXHAUST
-
117518984 SCREWSCREW
-
127519045 SCREWSCREW
-
133610236 GASKET, DOUBLE, SPHERICAL, 2.5 INGASKET, DOUBLE, SPHERICAL, 2.5 IN
-
147661855 RIVETRIVET
-
155450115 MOUNT, ISOLATORMOUNT, ISOLATOR
-
163610184 GASKET, EXHAUST SEALGASKET, EXHAUST SEAL
-
177518529 SCREWSCREW
-
184016021 SENSOR, OXYGENSENSOR, OXYGEN
-
197044274 SPRING, SPHERICAL, EXHAUSTSPRING, SPHERICAL, EXHAUST
-
207520079 STUD, SPHERICAL, EXHAUSTSTUD, SPHERICAL, EXHAUST
-
217081496 CLIP, ROUTINGCLIP, ROUTING
-
227556329 WASHER-.281X1.00X.051WASHER-.281X1.00X.051
-
235814245 SHIELD-BOX, FRONTSHIELD-BOX, FRONT
-
245263026 SHIELD-REAR, ALSHIELD-REAR, AL
-
257518591 SCR-HXFL-M6X1.0X16 8.8 ZPBSCR-HXFL-M6X1.0X16 8.8 ZPB
-
265263028 SHIELD-FOIL, SIDE BOX, 0.05 IN, ALSHIELD-FOIL, SIDE BOX, 0.05 IN, AL
-
275814362 SHIELD-REAR BUMPERSHIELD-REAR BUMPER
-
287081808 STRAP-CABLE TIE W/EDGE CLIPSTRAP-CABLE TIE W/EDGE CLIP
