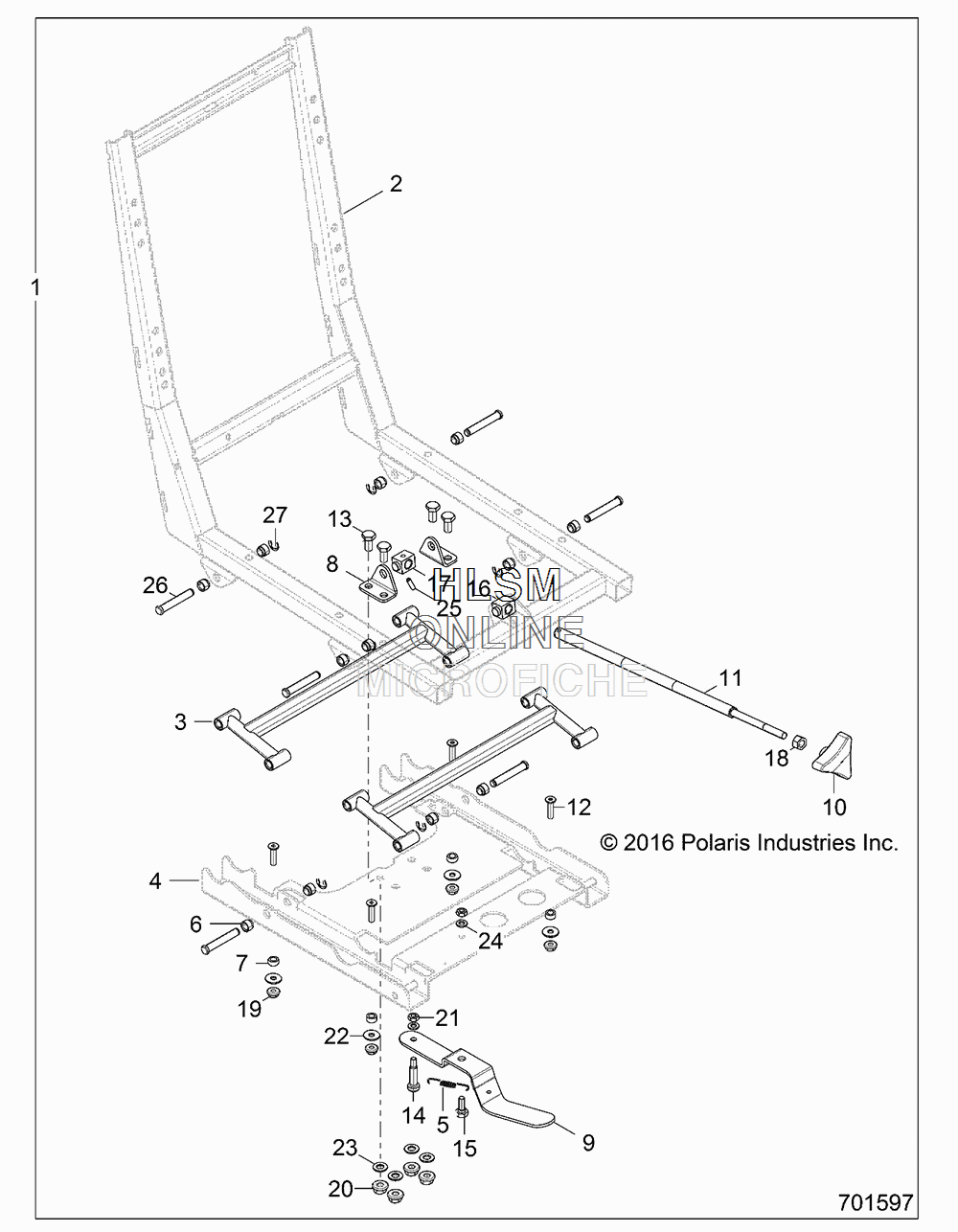

SEAT BASE ADJUSTER для Polaris RZR XP 1000 TRACTOR ZUG [Z17VDS99CM] - 2017 года выпуска
-
№АртикулНазвание
-
11022682-458 ASM-SEAT ADJUSTER RZR, BLACK (INCL. ALL)ASM-SEAT ADJUSTER RZR, BLACK (INCL. ALL)
-
55140951 SPRING 40MMSPRING 40MM
-
65140952 SPACER-M8X9MMSPACER-M8X9MM
-
75141000 TUBE-SPACERTUBE-SPACER
-
105453804 KNOB M8KNOB M8
-
117520571 SCR-DOUBLE THREAD M12/355MMSCR-DOUBLE THREAD M12/355MM
-
127520572 SCR-HEX COUNTERSUNK HEAD M6X25SCR-HEX COUNTERSUNK HEAD M6X25
-
137520573 SCR-HEXAGONAL M8X16SCR-HEXAGONAL M8X16
-
147520574 BOLT-SOLDER M8X25BOLT-SOLDER M8X25
-
157520575 BOLT-SOLDER M8X18BOLT-SOLDER M8X18
-
167547845 NUT-SQUARE BOTTOM M12NUT-SQUARE BOTTOM M12
-
177547846 NUT-SQUARE TOP M12NUT-SQUARE TOP M12
-
187547847 NUT-M8X1.25NUT-M8X1.25
-
197547848 NUT-FLANGE HEX M6X6X1NUT-FLANGE HEX M6X6X1
-
207547849 NUT-FLANGE HEX M8X8X1.25NUT-FLANGE HEX M8X8X1.25
-
227557009 WASHER M6.4X18WASHER M6.4X18
-
237557010 WASHER-M8.4X1.6WASHER-M8.4X1.6
-
247557011 WASHER-6.4X12WASHER-6.4X12
-
257662317 PIN-SLOTTED 4, 6MMPIN-SLOTTED 4, 6MM
-
267662318 PIN-PIVOT M8X49.5PIN-PIVOT M8X49.5
-
277710859 RING-RETAINING M7RING-RETAINING M7
