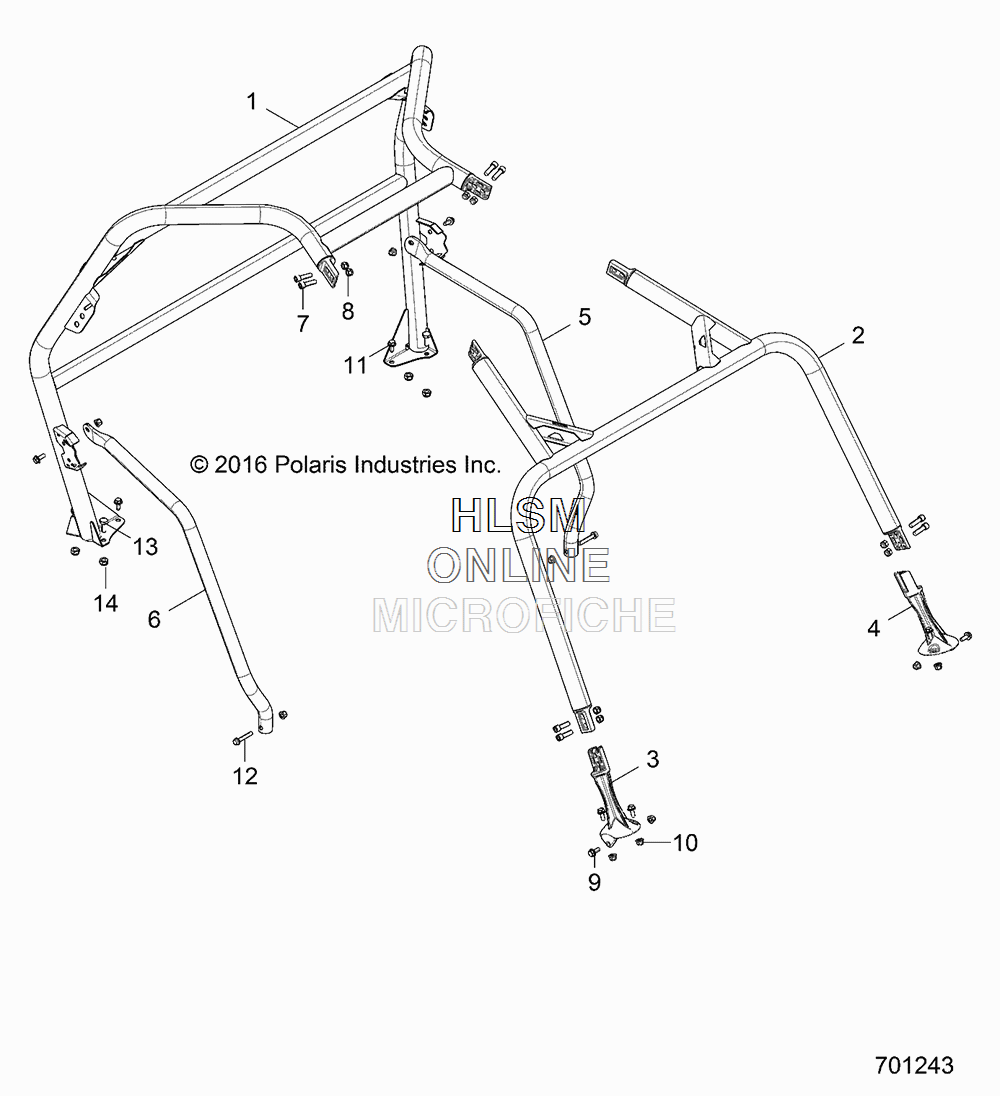

FRAME CAB для Polaris RZR 570 EPS NAVY BLUE [Z18VHE57BV] - 2018 года выпуска
-
№АртикулНазвание
-
11019563-458 FRAME, CAB, BACK, MATTE BLACKFRAME, CAB, BACK, MATTE BLACK
-
21019958-458 FRAME, CAB, FRONT, MATTE BLACKFRAME, CAB, FRONT, MATTE BLACK
-
35632414-458 BASE, CAB FRAME, FRONT, BASE, RIGHT HAND, MATTE BLACKBASE, CAB FRAME, FRONT, BASE, RIGHT HAND, MATTE BLACK
-
45632415-458 BASE, CAB FRAME, FRONT, BASE, LEFT HAND, MATTE BLACKBASE, CAB FRAME, FRONT, BASE, LEFT HAND, MATTE BLACK
-
55339659-458 TUBE-SIDE BAR, LEFT HAND, BLACKTUBE-SIDE BAR, LEFT HAND, BLACK
-
65339660-458 TUBE-SIDE BAR, RIGHT HAND, BLACKTUBE-SIDE BAR, RIGHT HAND, BLACK
-
77517935 SCREWSCREW
-
87542451 NUT, NYLOKNUT, NYLOK
-
97518702 BOLT, FLANGEBOLT, FLANGE
-
107547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
117518555 BOLTBOLT
-
127516732 SCREWSCREW
-
137519308 SCR-M10X1.5X25, HEX, DIN933, 8.8SCR-M10X1.5X25, HEX, DIN933, 8.8
-
147547385 NUT-NY INS, M10X1.5, HEX, ZINC, YWNUT-NY INS, M10X1.5, HEX, ZINC, YW
