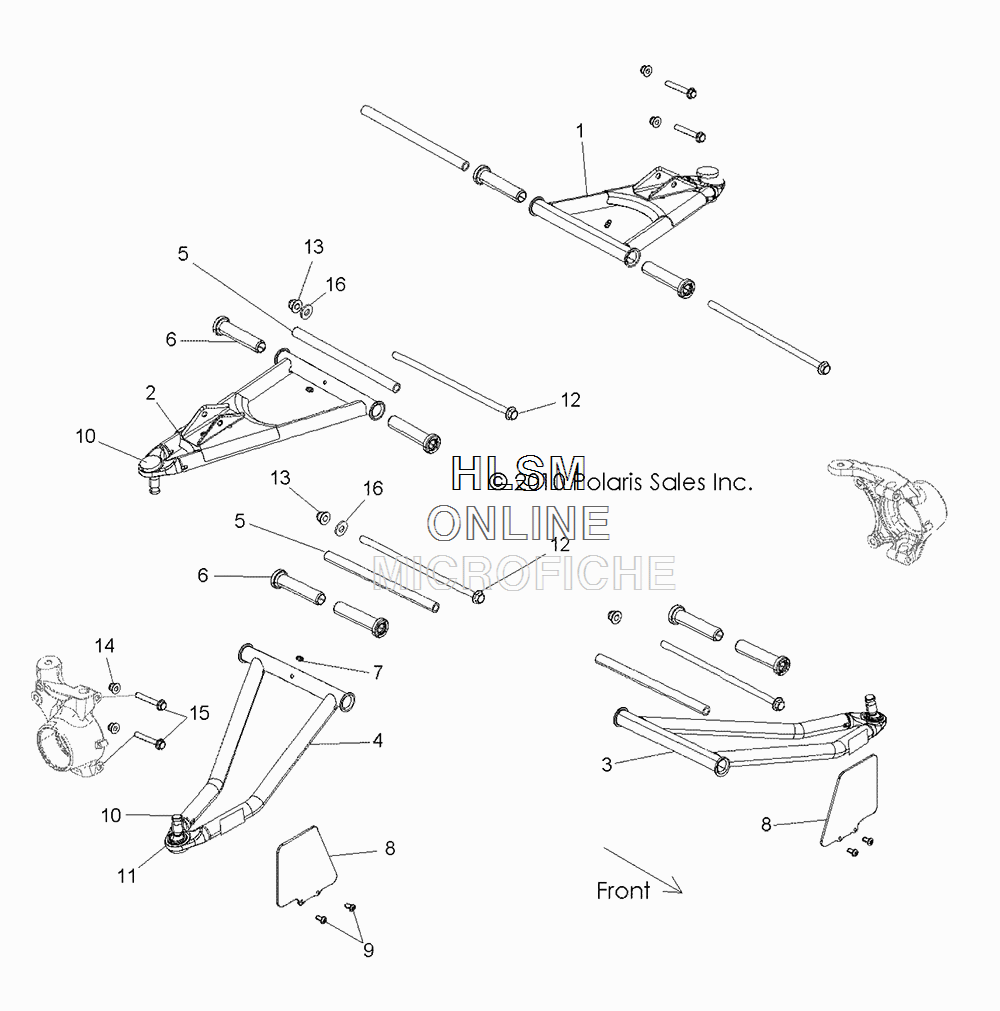

SUSPENSION - FRONT CONTROL ARMS для Polaris RZR 570 EPS NAVY BLUE [Z18VHE57BV] - 2018 года выпуска
-
№АртикулНазвание
-
11018203-458 ARM, CONTROL, UPPER, FRONT, MATTE BLACK, LEFT HANDARM, CONTROL, UPPER, FRONT, MATTE BLACK, LEFT HAND
-
21018204-458 ARM, CONTROL, UPPER, FRONT, MATTE BLACK, RIGHT HANDARM, CONTROL, UPPER, FRONT, MATTE BLACK, RIGHT HAND
-
31018205-458 ARM, CONTROL, LOWER, FRONT, MATTE BLACK, LEFT HANDARM, CONTROL, LOWER, FRONT, MATTE BLACK, LEFT HAND
-
41018206-458 ARM, CONTROL, LOWER, FRONT, MATTE BLACK, RIGHT HANDARM, CONTROL, LOWER, FRONT, MATTE BLACK, RIGHT HAND
-
55138791 SHAFT, PIVOT, 250.28MM, 15.88ODSHAFT, PIVOT, 250.28MM, 15.88OD
-
65439732 BUSHING, A-ARM, LONG, 102.36MMBUSHING, A-ARM, LONG, 102.36MM
-
77080510 FITTING, ZERK, 90 DEGFITTING, ZERK, 90 DEG
-
85438641-070 SHIELD, CV, FRONT, BLACKSHIELD, CV, FRONT, BLACK
-
97512084 SCREWSCREW
-
107061220 BALL, JOINT, 8MMBALL, JOINT, 8MM
-
117710533 RING, RETAININGRING, RETAINING
-
127519087 BOLT, FLANGEDBOLT, FLANGED
-
137547333 NUT, FLANGEDNUT, FLANGED
-
147547405 NUT, NYLOKNUT, NYLOK
-
157516733 SCREW, FLANGESCREW, FLANGE
-
167556153 WASHERWASHER
