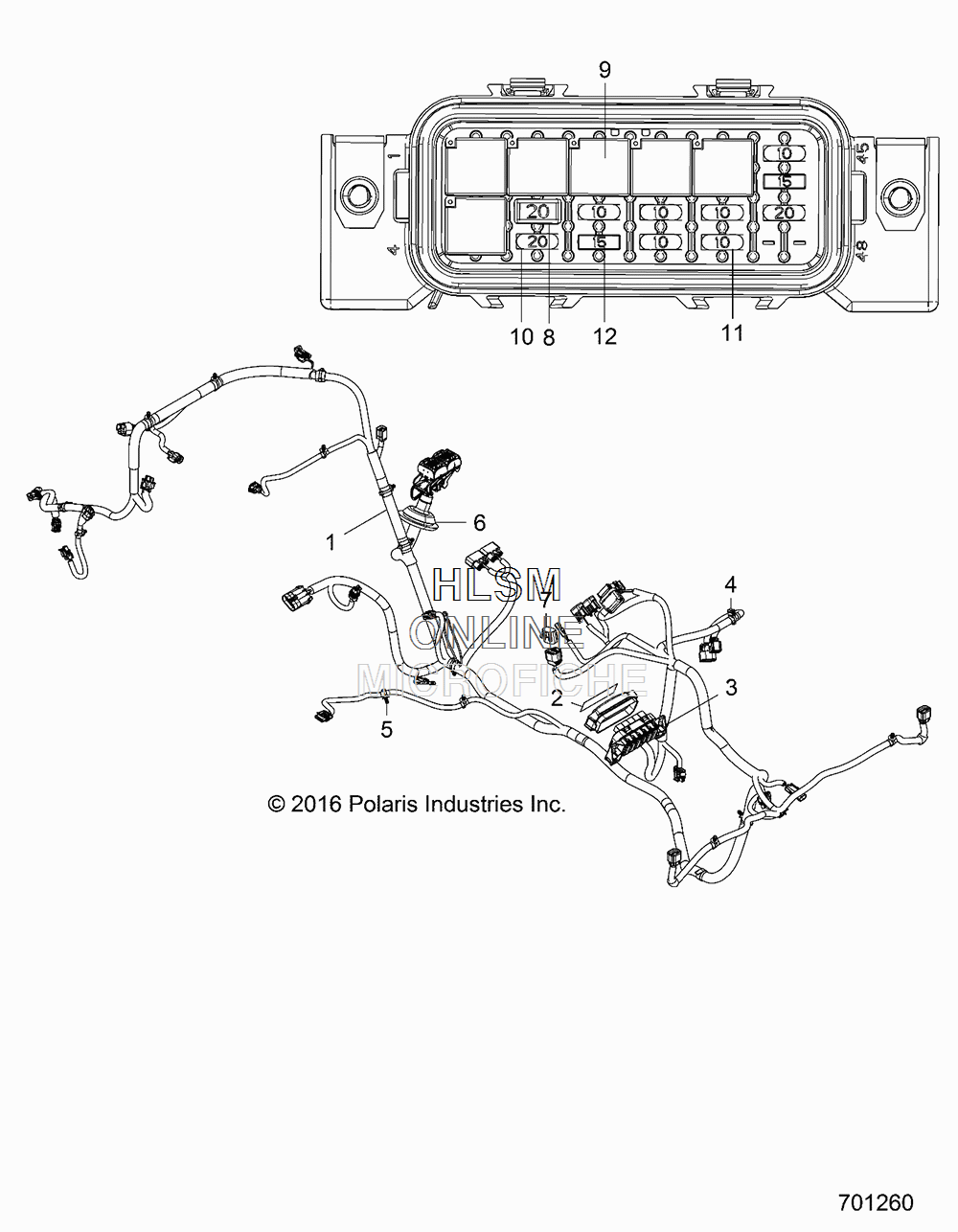

WIRE HARNESS для Polaris RZR 570 EPS NAVY BLUE [Z18VHE57BV] - 2018 года выпуска
-
№АртикулНазвание
-
12413473 HARNESS-CHASSIS, RZR 570 LE (INCL. ALL)HARNESS-CHASSIS, RZR 570 LE (INCL. ALL)
-
27185045 LABEL-FUSE BOXLABEL-FUSE BOX
-
37081890 CLIP-EDGE, HARNESSCLIP-EDGE, HARNESS
-
47081808 STRAP-CABLE TIE W/EDGE CLIPSTRAP-CABLE TIE W/EDGE CLIP
-
57081496 CLIP-ROUTINGCLIP-ROUTING
-
65813954 GROMMET-65MM, BLACKGROMMET-65MM, BLACK
-
74012170 COVER-DIAGNOSTIC, W/CLIPCOVER-DIAGNOSTIC, W/CLIP
-
84011372 BREAKER-CIRCUIT, 20 AMPBREAKER-CIRCUIT, 20 AMP
-
94011283 RELAY-SPST, SERIES 303, SEALED, 12V, 20ARELAY-SPST, SERIES 303, SEALED, 12V, 20A
-
102434017 FUSE-PARK, 20 AMPFUSE-PARK, 20 AMP
-
112434016 FUSE-IGNITION, 10 AMPFUSE-IGNITION, 10 AMP
-
122410280 FUSE-MINI BLADE, 15 AMPFUSE-MINI BLADE, 15 AMP
