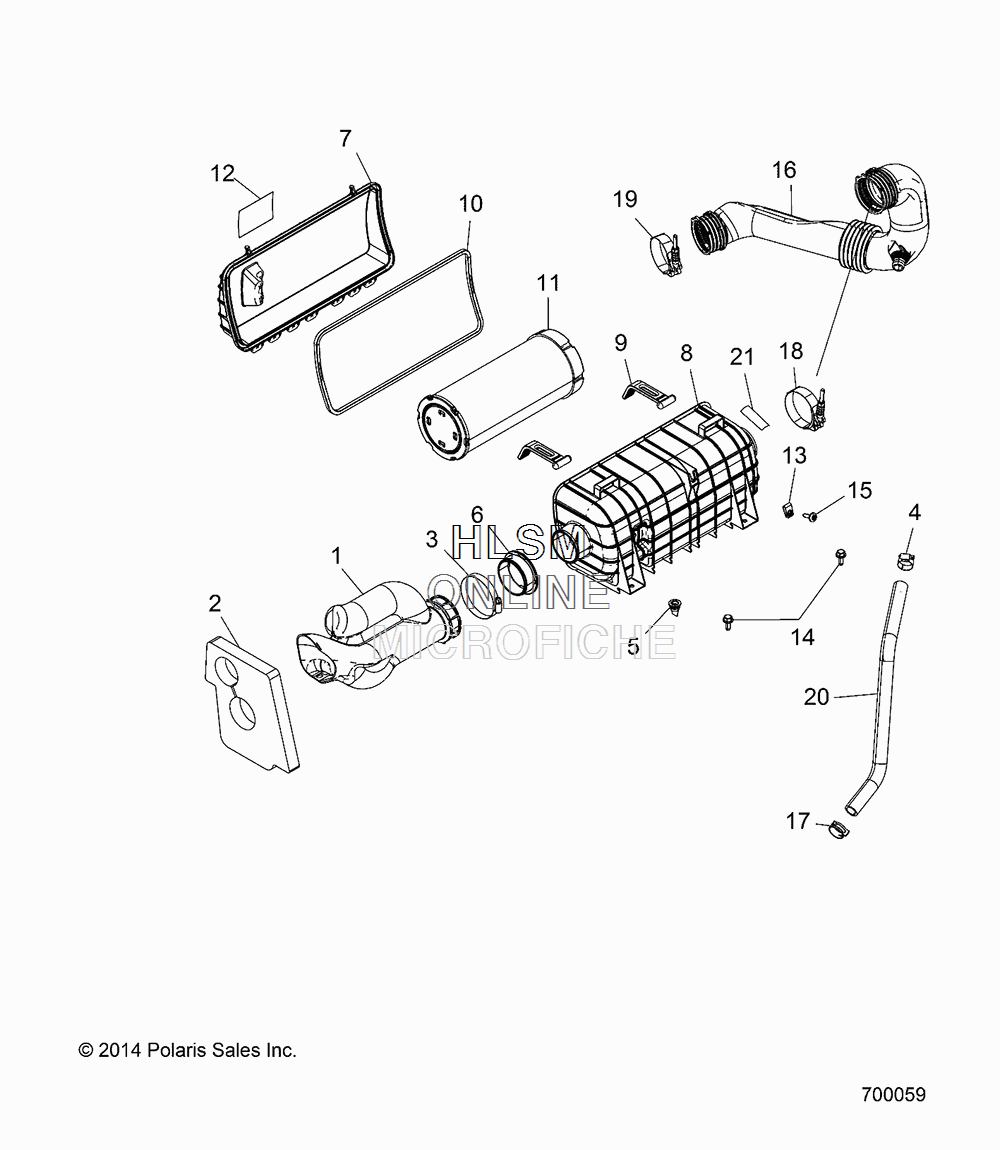

AIR INTAKE SYSTEM для Polaris RZR S 1000 EPS (WHITE LIGHTNING) [Z18VBE99BW] - 2018 года выпуска
-
№АртикулНазвание
-
15450781 DUCT, INTAKE, AIRBOXDUCT, INTAKE, AIRBOX
-
25814168 PANEL, INTAKE SEPARATORPANEL, INTAKE SEPARATOR
-
37080439 CLAMP, HOSECLAMP, HOSE
-
47080614 CLAMP, HOSECLAMP, HOSE
-
55414472 PLUG, DRAINPLUG, DRAIN
-
65415155 SEAL, INTAKE, AIRBOXSEAL, INTAKE, AIRBOX
-
75451097 COVER, AIRBOXCOVER, AIRBOX
-
85451098 AIRBOXAIRBOX
-
95451099 STRAP, AIRBOXSTRAP, AIRBOX
-
105814054 SEAL, AIRBOXSEAL, AIRBOX
-
117082115 FILTER, AIRFILTER, AIR
-
127182652 DECAL, CAUTION, AIR BOXDECAL, CAUTION, AIR BOX
-
137547674 NUTNUT
-
147518555 BOLTBOLT
-
157519650 SCREWSCREW
-
161240871 ASM., INTAKE DUCT (INCL 18, 19)ASM., INTAKE DUCT (INCL 18, 19)
-
177080841 SPRINGBAND, CLAMPSPRINGBAND, CLAMP
-
187081978 CLAMP, HOSE, T-BOLT, 72 DIACLAMP, HOSE, T-BOLT, 72 DIA
-
197081979 CLAMP, HOSE, T-BOLT, 66.4 DIACLAMP, HOSE, T-BOLT, 66.4 DIA
-
205414896 HOSE, VENTHOSE, VENT
-
217182087 DECAL, INTAKE DUCTDECAL, INTAKE DUCT
