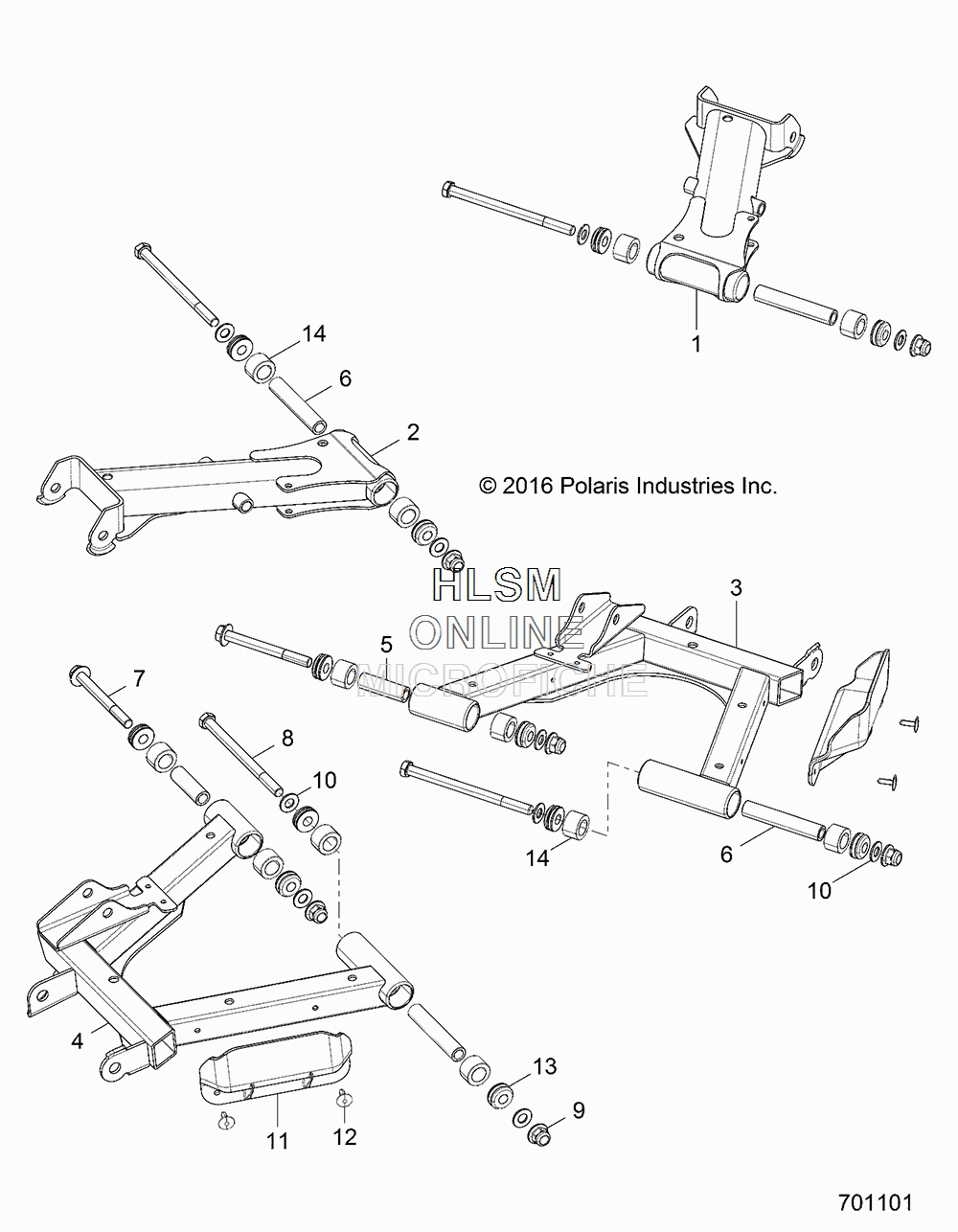

REAR CONTROL ARMS для Polaris RZR S 1000 EPS (WHITE LIGHTNING) [Z18VBE99BW] - 2018 года выпуска
-
№АртикулНазвание
-
11021412-133 WELD-A-ARM, REAR, UPR, LEFT HAND, 60, WHTWELD-A-ARM, REAR, UPR, LEFT HAND, 60, WHT
-
21021413-133 WELD-A-ARM, REAR, UPR, RIGHT HAND, 60, WHTWELD-A-ARM, REAR, UPR, RIGHT HAND, 60, WHT
-
31021414-133 WELD-A-ARM, REAR, LWR, LEFT HAND, 60, WHTWELD-A-ARM, REAR, LWR, LEFT HAND, 60, WHT
-
41021415-133 WELD-A-ARM, REAR, LWR, RIGHT HAND, 60, WHTWELD-A-ARM, REAR, LWR, RIGHT HAND, 60, WHT
-
55139966 SHAFT-PIVOT, SHORT, M10SHAFT-PIVOT, SHORT, M10
-
65139967 SHAFT-PIVOT, LONG, M10SHAFT-PIVOT, LONG, M10
-
77519043 SCREW, HEX FLANGESCREW, HEX FLANGE
-
87519897 SCREWSCREW
-
97547333 NUTNUT
-
107556153 WASHERWASHER
-
115451336-070 SHIELD-CV, REAR, BLACKSHIELD-CV, REAR, BLACK
-
127621467 RIVETRIVET
-
131543611 ASM-PIVOT CAP, SEALED, M10ASM-PIVOT CAP, SEALED, M10
-
145452233 BUSHING-STANDARD, SUSP, M10BUSHING-STANDARD, SUSP, M10
