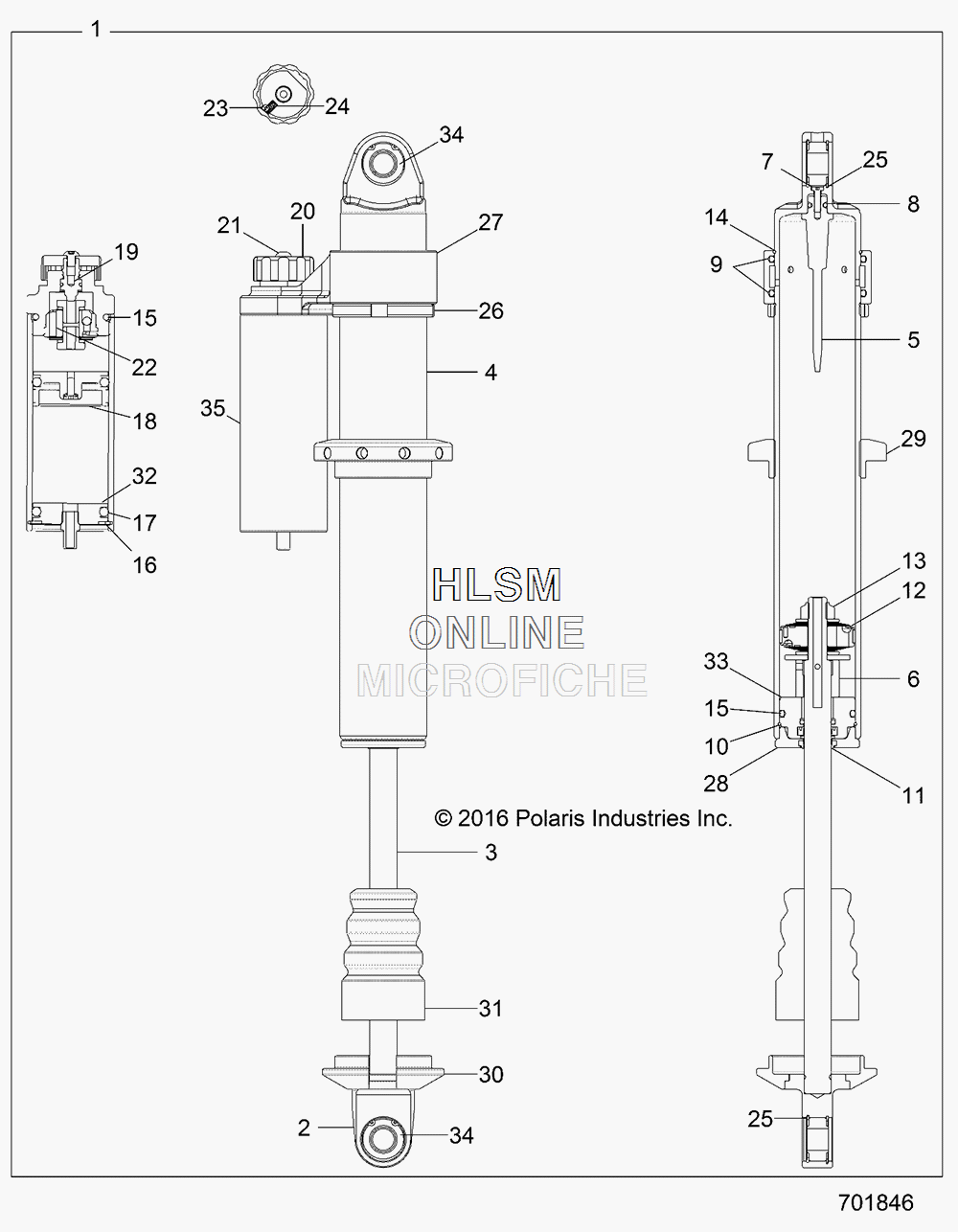

SUSPENSION - REAR SHOCK для Polaris RZR S 1000 EPS (WHITE LIGHTNING) [Z18VBE99BW] - 2018 года выпуска
-
№АртикулНазвание
-
17044905 SHOCK-REAR, 2, RESVR, PIGGYBK, LEFT HAND (INCL ALL)SHOCK-REAR, 2, RESVR, PIGGYBK, LEFT HAND (INCL ALL)
-
17044906 SHOCK-REAR, 2, RESVR, PIGGYBK, RIGHT HAND (INCL ALL)SHOCK-REAR, 2, RESVR, PIGGYBK, RIGHT HAND (INCL ALL)
-
21800792 SHAFTLOOP .625 THD (CLEAR)SHAFTLOOP .625 THD (CLEAR)
-
31800892 SHAFT-CHROME NEEDLESHAFT-CHROME NEEDLE
-
41800893 BODY, MONOTUBE CO, 2.0 X 13.973L HARD CLEARBODY, MONOTUBE CO, 2.0 X 13.973L HARD CLEAR
-
51800861 NEEDLE, 1PC, PRESS INNEEDLE, 1PC, PRESS IN
-
61800896 SHAFT SPACERSHAFT SPACER
-
71800843 #8-32 X .500 LOW HEAD SCREW#8-32 X .500 LOW HEAD SCREW
-
81800864 O-RING 2-108O-RING 2-108
-
91800863 O-RING 2-226O-RING 2-226
-
101800795 RETAINING RING WIRE .0625 X 1.750IDRETAINING RING WIRE .0625 X 1.750ID
-
111800034 WIPER, 5/8 IN D/TYPE- BLACKWIPER, 5/8 IN D/TYPE- BLACK
-
121800604 PISTON, 2.0, .47L, NO BLD (W/ VALVING)PISTON, 2.0, .47L, NO BLD (W/ VALVING)
-
131800164 NUT, CRIMP (CASTLE) 7/16NUT, CRIMP (CASTLE) 7/16
-
141800862 RETAINING RINGRETAINING RING
-
151800030 O-RING 2-222O-RING 2-222
-
161800159 RING, SNAP 1.750IDRING, SNAP 1.750ID
-
171800184 O-RING 2-324O-RING 2-324
-
181800739 IFP PISTON ASM 1.750 W BLEEDIFP PISTON ASM 1.750 W BLEED
-
191800758 ASM. CLICKER STUDASM. CLICKER STUD
-
201800418 CLICKER KNOB (BLACK)CLICKER KNOB (BLACK)
-
211800357 SCREW, HEAD 10/32 BTNSCREW, HEAD 10/32 BTN
-
221800894 ASM. CLICKER PISTONASM. CLICKER PISTON
-
231800127 BALL, DETENT 3/16 INBALL, DETENT 3/16 IN
-
241800128 SPRING, DETENTSPRING, DETENT
-
251800041 RING, SNAP 1.0IDRING, SNAP 1.0ID
-
261800868 JAMB NUT, 2 IN ACME (CLEAR)JAMB NUT, 2 IN ACME (CLEAR)
-
271800866 BRIDGE 2 IN WER ADJUSTER (CLEAR)BRIDGE 2 IN WER ADJUSTER (CLEAR)
-
281800794 CAP, WIPER 2.0 PRESS IN (CLEAR ANODIZE)CAP, WIPER 2.0 PRESS IN (CLEAR ANODIZE)
-
291800802 SPRING ADJUSTER 2.0 ACME (CLEAR)SPRING ADJUSTER 2.0 ACME (CLEAR)
-
301501194 RETAINER, SPRINGRETAINER, SPRING
-
311800895 BUMP STP ISC 140168BUMP STP ISC 140168
-
321800755 ASM. END CAP 2 IN (CLEAR)ASM. END CAP 2 IN (CLEAR)
-
331800869 ASM. SEAL HEAD, 2 IN, PRESSIN, STD SEALSASM. SEAL HEAD, 2 IN, PRESSIN, STD SEALS
-
341800616 SPHERICAL BEARING 1.0OD X .50 ID W TEFLONSPHERICAL BEARING 1.0OD X .50 ID W TEFLON
-
351800392 RES BODY, 2.0", 5.0L (HARD CLEAR)RES BODY, 2.0", 5.0L (HARD CLEAR)
