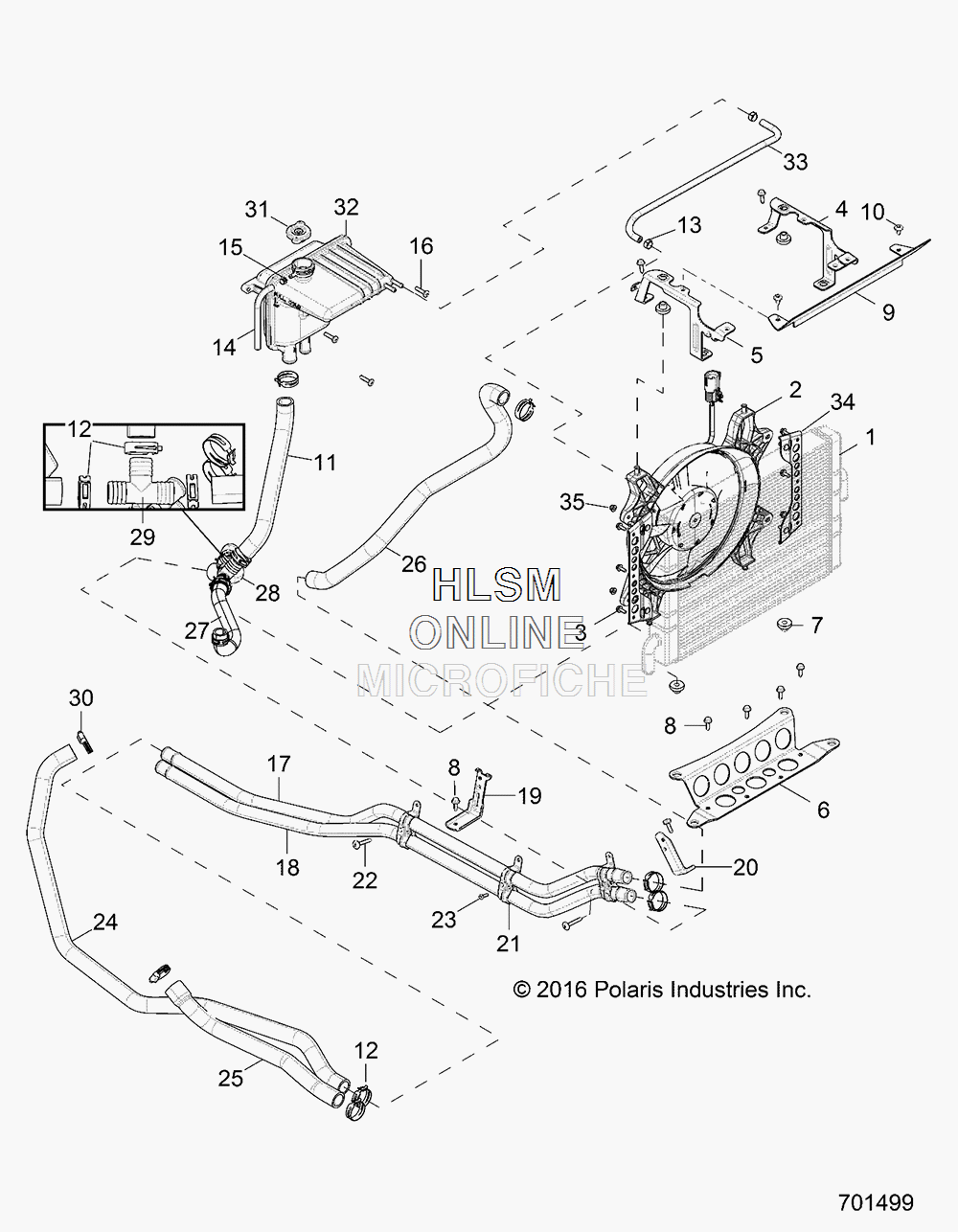

COOLING SYSTEM для Polaris RZR XP4 TURBO MD (VELOCITY BLUE) [Z18VFE92NB] - 2018 года выпуска
-
№АртикулНазвание
-
11241117 ASM-CORE, RADIATORASM-CORE, RADIATOR
-
22413548 ASM-FAN, BRUSHLESSASM-FAN, BRUSHLESS
-
37518591 SCR-HXFL-M6X1.0X16 8.8 ZPBSCR-HXFL-M6X1.0X16 8.8 ZPB
-
45263170-329 BRKT-MOUNT, RADIATOR, LEFT HAND, ECOATBRKT-MOUNT, RADIATOR, LEFT HAND, ECOAT
-
55263171-329 BRKT-MOUNT, RADIATOR, RIGHT HAND, ECOATBRKT-MOUNT, RADIATOR, RIGHT HAND, ECOAT
-
65260767-329 BRKT-MOUNT, RADIATOR, BLACKBRKT-MOUNT, RADIATOR, BLACK
-
77052028 GROMMET-FLANGED, .36X.56X1.06GROMMET-FLANGED, .36X.56X1.06
-
87518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BLSCR-M6X1.0X20, HXHD, FLG, TDFM, BL
-
95452630 SHROUD-RADIATOR, UPPERSHROUD-RADIATOR, UPPER
-
107518936 SCR-M6X1X16 TR/TX-MSCR-M6X1X16 TR/TX-M
-
115415443 HOSE-OUT, SURGE TANK TO TEEHOSE-OUT, SURGE TANK TO TEE
-
127080844 SPRINGBAND-CLAMP 35/12, BLACKSPRINGBAND-CLAMP 35/12, BLACK
-
137080003 HOSE CLAMP, REDHOSE CLAMP, RED
-
145813672 HOSE-IAC, SHORTHOSE-IAC, SHORT
-
157080236 CLAMP-HOSE, (7/16)CLAMP-HOSE, (7/16)
-
167518158 SCR-#14X1 HI/LO-PH-PN TRX-MSCR-#14X1 HI/LO-PH-PN TRX-M
-
175141784 TUBE-COOLANT, 1", MPTUBE-COOLANT, 1", MP
-
185141785 TUBE-COOLANT, 1", MPTUBE-COOLANT, 1", MP
-
195259433-329 BRKT-COOLANT TUBE, BLACKBRKT-COOLANT TUBE, BLACK
-
205260766-329 BRKT-COOLANT TUBE, BLACKBRKT-COOLANT TUBE, BLACK
-
215451221 BRACKET-COOLANT TUBEBRACKET-COOLANT TUBE
-
227519001 SCR-M6X1X40, TR/TX-BLACKSCR-M6X1X40, TR/TX-BLACK
-
237512026 SCR-#10X3/4-HI/LO-PN-T25, TRX-MSCR-#10X3/4-HI/LO-PN-T25, TRX-M
-
245414530 HOSE-ENG OUTLET, REARHOSE-ENG OUTLET, REAR
-
255414976 HOSE-ENG INLET, REARHOSE-ENG INLET, REAR
-
265416028 HOSE-RADIATOR, UPPERHOSE-RADIATOR, UPPER
-
275416030 HOSE-RADIATOR, LOWER, FRONTHOSE-RADIATOR, LOWER, FRONT
-
285415446 HOSE-RADIATOR, LOWER, REARHOSE-RADIATOR, LOWER, REAR
-
297052373 CONNECTOR-TEE, 1", 1", 1" BARBEDCONNECTOR-TEE, 1", 1", 1" BARBED
-
307081192 CLAMP-HOSE(WORM DR)25-40MMCLAMP-HOSE(WORM DR)25-40MM
-
311240300 CAP-PRESSURECAP-PRESSURE
-
321240943 WELD-SURGE TANK, DUALWELD-SURGE TANK, DUAL
-
338450120-61 1/4"SAEJ2002, EPDM HOSE, 61 CM1/4"SAEJ2002, EPDM HOSE, 61 CM
-
341241122-329 WELD-BRKT-MNT, FAN, ECOATWELD-BRKT-MNT, FAN, ECOAT
-
357547339 NUT-M6X1.0, FLG-NYLOC-OLIVE DNUT-M6X1.0, FLG-NYLOC-OLIVE D
