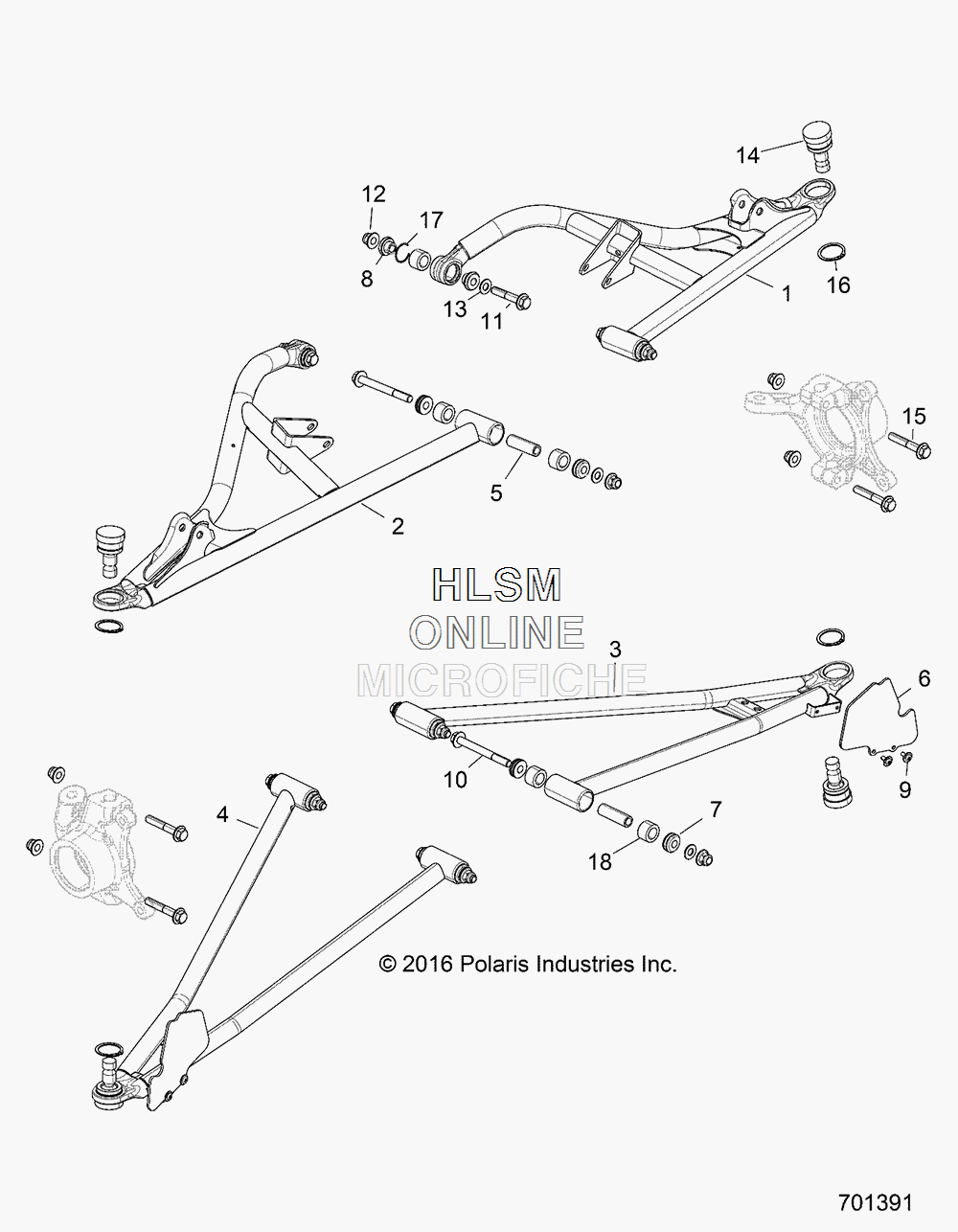

FRONT CONTROL ARMS для Polaris RZR XP4 TURBO MD (VELOCITY BLUE) [Z18VFE92NB] - 2018 года выпуска
-
№АртикулНазвание
-
11023526-385 WELD-CTRL ARM, UPPER, FR, LEFT HAND, 64, SLVWELD-CTRL ARM, UPPER, FR, LEFT HAND, 64, SLV
-
21023527-385 WELD-CTRL ARM, UPPER, FR, RIGHT HAND, 64, SLVWELD-CTRL ARM, UPPER, FR, RIGHT HAND, 64, SLV
-
31021480-385 WELD-CTRL ARM, LOWER, FR, LEFT HAND, 64, SLVWELD-CTRL ARM, LOWER, FR, LEFT HAND, 64, SLV
-
41021481-385 WELD-CTRL ARM, LOWER, FR, RIGHT HAND, 64, SLVWELD-CTRL ARM, LOWER, FR, RIGHT HAND, 64, SLV
-
55139966 SHAFT-PIVOT, SHORT, M10SHAFT-PIVOT, SHORT, M10
-
65438641-070 SHIELD, CV, FRONT, BLACKSHIELD, CV, FRONT, BLACK
-
71543611 ASM-PIVOT CAP, SEALED, M10ASM-PIVOT CAP, SEALED, M10
-
81543735 ASM-PIVOT CAP, SEALED, SLIM, M10ASM-PIVOT CAP, SEALED, SLIM, M10
-
97512084 SCREWSCREW
-
107519043 SCREWSCREW
-
117519285 SCREWSCREW
-
127547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
137556153 WASHERWASHER
-
147082275 BALL-JOINT, HARDENEDBALL-JOINT, HARDENED
-
157519306 SCREWSCREW
-
167710716 RING, RETAININGRING, RETAINING
-
177710845 28MM SPIRAL RING, STEEL28MM SPIRAL RING, STEEL
-
185452233 BUSHING-STANDARD, SUSP, M10BUSHING-STANDARD, SUSP, M10
