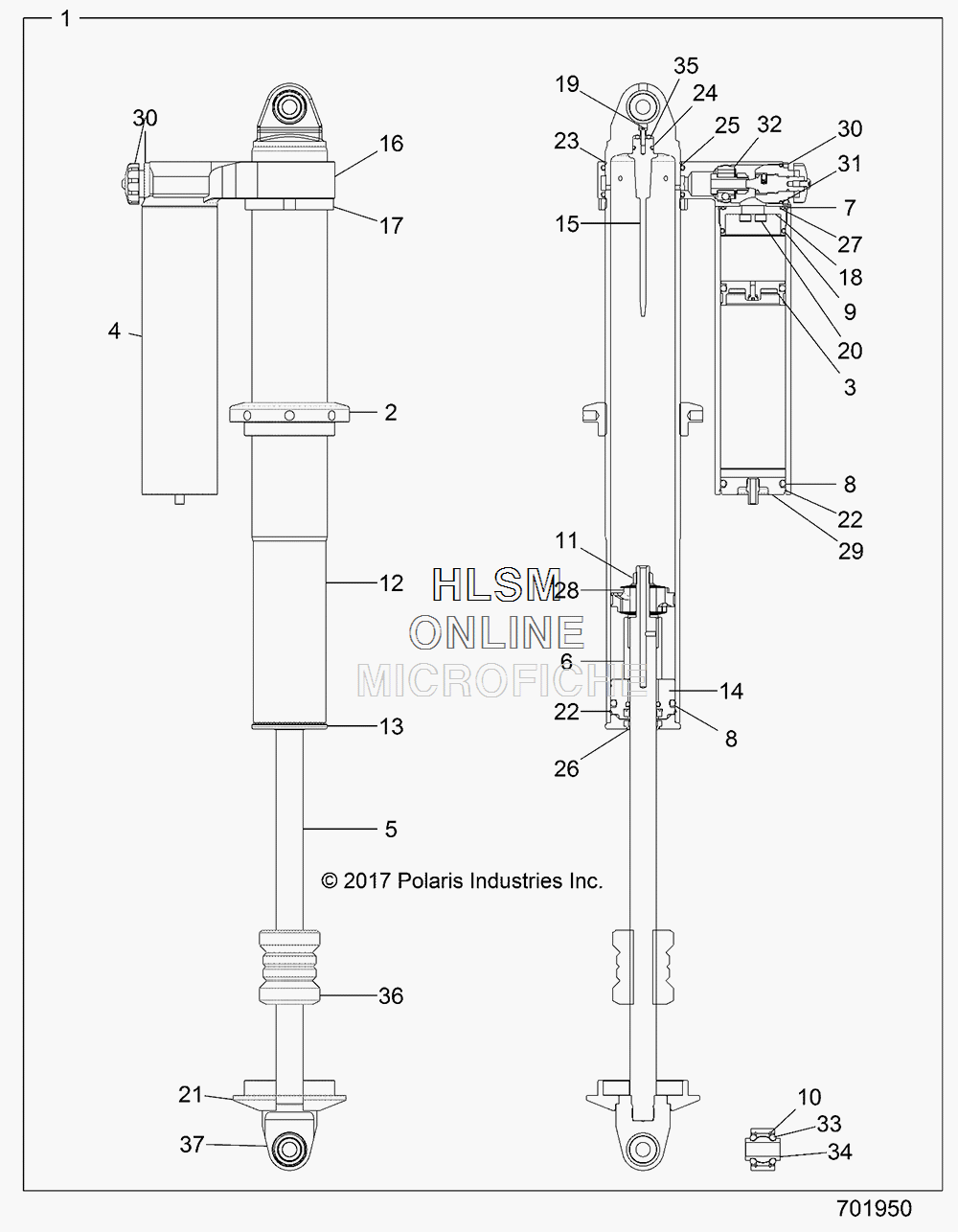

SUSPENSION - REAR SHOCK - DISASSEMBLED для Polaris RZR XP4 TURBO MD (VELOCITY BLUE) [Z18VFE92NB] - 2018 года выпуска
-
№АртикулНазвание
-
17044854 SHOCK-REAR, MPSHOCK-REAR, MP
-
21800836 2.5IN SPRING NUT (CLEAR)2.5IN SPRING NUT (CLEAR)
-
31800752 RES, PISTON 2.5 IN ASMRES, PISTON 2.5 IN ASM
-
41800854 2.5IN 9.5L PB RES CAN WR (HARD CLEAR)2.5IN 9.5L PB RES CAN WR (HARD CLEAR)
-
51800632 SS 7/8IN CHROME NEEDLE SHAFT 18.295LSS 7/8IN CHROME NEEDLE SHAFT 18.295L
-
61800657 SPACER 2.037LSPACER 2.037L
-
71800613 O-RING 2-033O-RING 2-033
-
81800508 O-RING 2-327O-RING 2-327
-
91800500 O-RING 2-225O-RING 2-225
-
101800482 RING- RETAIN (SNAP)RING- RETAIN (SNAP)
-
111800638 7/16 NY LOCK NUT7/16 NY LOCK NUT
-
121800838 BODY, MONOTUBE 2.5 IN REAR W NEEDLE HARD CLEAR 21.070LBODY, MONOTUBE 2.5 IN REAR W NEEDLE HARD CLEAR 21.070L
-
131800855 CAP, WIPER, 2.5 IN PRESS FIT 7/8 (CLEAR)CAP, WIPER, 2.5 IN PRESS FIT 7/8 (CLEAR)
-
141800856 ASM. SEAL HEAD 2.5 X .875 PIASM. SEAL HEAD 2.5 X .875 PI
-
151800840 NEEDLE, 1PC PRESS INNEEDLE, 1PC PRESS IN
-
161800841 BRIDGE, 2.5 IN WER ADJUSTER (CLEAR)BRIDGE, 2.5 IN WER ADJUSTER (CLEAR)
-
171800842 CROSSOVER RING/ JAM NUT, 2.5 INCROSSOVER RING/ JAM NUT, 2.5 IN
-
181800488 RES MOUNT, 2.5 INRES MOUNT, 2.5 IN
-
191800843 #8-32 X .500 LOW HEAD SCREW#8-32 X .500 LOW HEAD SCREW
-
201800754 SCREW, SHCS 1/4-20 X .5 INSCREW, SHCS 1/4-20 X .5 IN
-
211501007 SPRING CLIP, 2.5 INSPRING CLIP, 2.5 IN
-
221800847 RETAINING RING 2.5 INRETAINING RING 2.5 IN
-
231800846 2.48 X .0625 WIRE RING2.48 X .0625 WIRE RING
-
241800095 O-RING 2-112O-RING 2-112
-
251800497 O-RING 2-230O-RING 2-230
-
261800641 WIPER 2.5 SH .875 SHAFTWIPER 2.5 SH .875 SHAFT
-
271800502 O-RING, 2-134O-RING, 2-134
-
281800659 PISTON ASSEMBLY W/OUT VALVINGPISTON ASSEMBLY W/OUT VALVING
-
291800844 ASM. END CAP, 2.5 IN SCHRAEDERASM. END CAP, 2.5 IN SCHRAEDER
-
301800857 ASM. SS RETENTION NUT (GOLD)ASM. SS RETENTION NUT (GOLD)
-
311800503 O-RING 2-122O-RING 2-122
-
321800848 VALVE, CHECK ASMVALVE, CHECK ASM
-
331800810 O-RING 2-312O-RING 2-312
-
341800880 BEARING HCOM9T-12MMBEARING HCOM9T-12MM
-
351800887 O-RING -202O-RING -202
-
361800889 BUMP STOP 2.45LBUMP STOP 2.45L
-
371800555 9/16 HEIM SHAFTLOOP (CLEAR)9/16 HEIM SHAFTLOOP (CLEAR)
