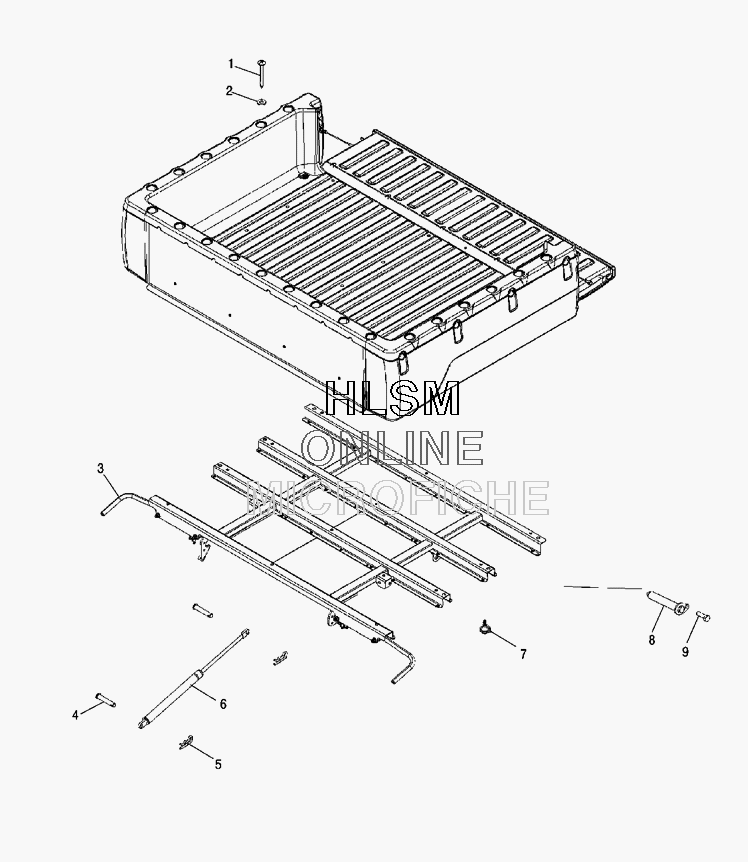

BOX MOUNTING для Polaris RANGER TM [A05RB63AA] - 2005 года выпуска
-
№АртикулНазвание
-
17518375 SCREWSCREW
-
27556329 WASHER-.281X1.00X.051WASHER-.281X1.00X.051
-
31202984 PINPIN
-
47661037 PIN,CLEVISPIN,CLEVIS
-
57661644 PIN,HITCHPIN,HITCH
-
67041996 SHOCK-DUMP BOX 19.50SHOCK-DUMP BOX 19.50
-
77670116 CLIP,ROUTING,.472 B.D.,HINGEDCLIP,ROUTING,.472 B.D.,HINGED
-
81013511-067 PIN,BOX HINGE, BLACKPIN,BOX HINGE, BLACK
-
97517386 SCREWSCREW
