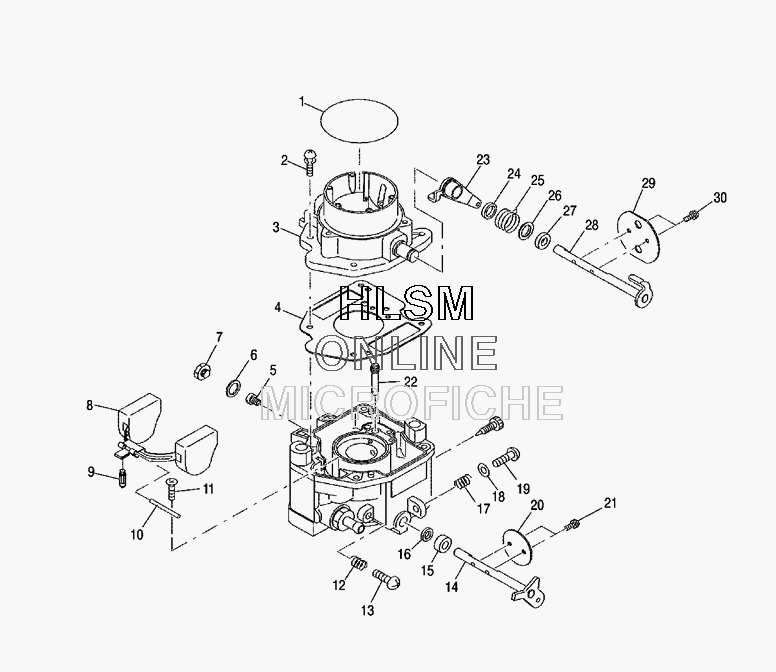

CARBURETOR для Polaris RANGER TM [A05RB63AA] - 2005 года выпуска
-
№АртикулНазвание
-
13088435 O-RING-AIR HORNO-RING-AIR HORN
-
23088326 SCREW-AIR HORN SETSCREW-AIR HORN SET
-
33089559 ASM.,CARBURETORASM.,CARBURETOR
-
43088799 GASKET,AIR HORNGASKET,AIR HORN
-
53089561 JET,MAIN,#140JET,MAIN,#140
-
63089562 GASKET,MAIN JET PLUGGASKET,MAIN JET PLUG
-
73089563 PLUG,MAIN JETPLUG,MAIN JET
-
83088746 FLOATFLOAT
-
93088290 VALVE-FLOATVALVE-FLOAT
-
103088329 PIN-FLOATPIN-FLOAT
-
113088337 SCREW-FLOAT PIN SETSCREW-FLOAT PIN SET
-
123088283 SPRING-DRAINSPRING-DRAIN
-
133088282 SCREW-DRAINSCREW-DRAIN
-
143088748 SHAFT AY,THROTTLESHAFT AY,THROTTLE
-
153088340 COLLAR-THROTTLE SHAFTCOLLAR-THROTTLE SHAFT
-
163089565 SEAL,THROTTLE ADJUSTSEAL,THROTTLE ADJUST
-
173088325 SPRING-ADJUST SCREWSPRING-ADJUST SCREW
-
183089566 WASHER,THROTTLE ADJUSTWASHER,THROTTLE ADJUST
-
193088800 SCREW,THROTTLE ADJUSTSCREW,THROTTLE ADJUST
-
203088432 THROTTLE-VALVETHROTTLE-VALVE
-
213088344 SCREW-VALVE SETSCREW-VALVE SET
-
223089564 JET,SLOW,#50JET,SLOW,#50
-
233088742 LEVER,CHOKE ASSYLEVER,CHOKE ASSY
-
243088333 RING-CHOKE LEVERRING-CHOKE LEVER
-
253088743 SPRING,CHOKESPRING,CHOKE
-
263088744 COLLAR,CHOKECOLLAR,CHOKE
-
273088335 FILTER-CHOKE SHAFTFILTER-CHOKE SHAFT
-
283088745 SHAFT AY,CHOKESHAFT AY,CHOKE
-
293089560 VALVE,CHOKEVALVE,CHOKE
-
303088336 SCREW-VALVE SETSCREW-VALVE SET
