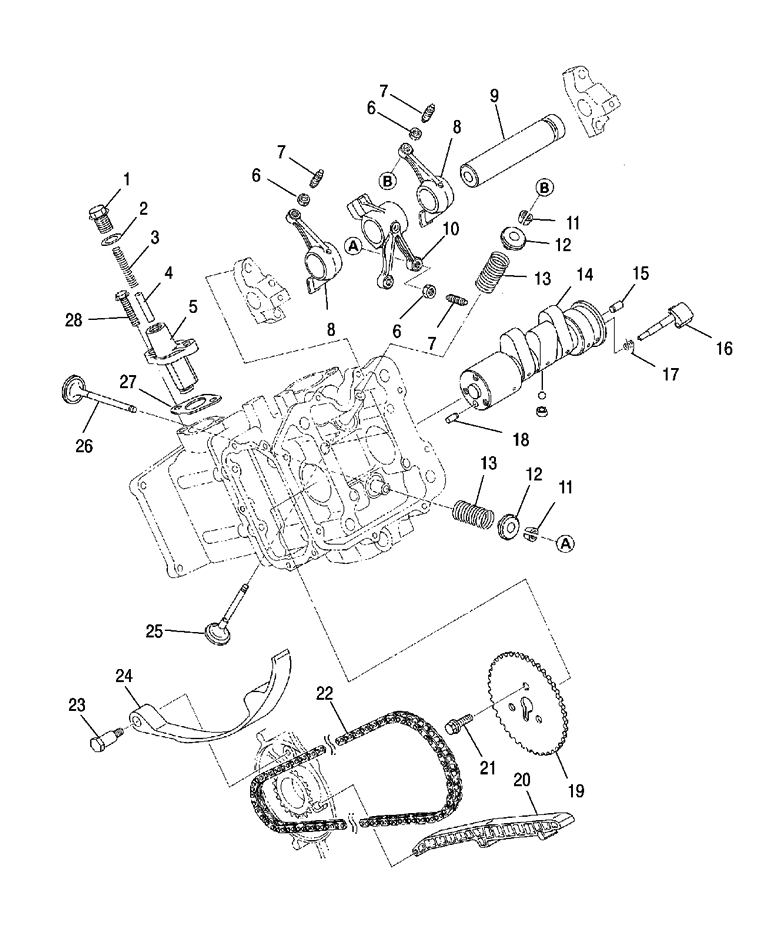

CAMSHAFT W/ VALVE ASSY. для Polaris RANGER 500 4X4 EFI NBU [R06RD50AB] - 2006 года выпуска
-
№АртикулНазвание
-
13087129 PLUGPLUG
-
23087130 GASKET, PLUGGASKET, PLUG
-
33087131 SPRING, TENSIONERSPRING, TENSIONER
-
43087132 PINPIN
-
53086493 TENSIONER, ASM. (INCLUDES 1-4)TENSIONER, ASM. (INCLUDES 1-4)
-
63084912 NUTNUT
-
73084911 SCREW, ADJUSTINGSCREW, ADJUSTING
-
83084910 ROCKER ARM ASM, INTAKE (INCLUDES 6, 7)ROCKER ARM ASM, INTAKE (INCLUDES 6, 7)
-
93084909 SHAFT, ROCKERSHAFT, ROCKER
-
103084913 ROCKER ARM ASM, EXHAUST (INCLUDES 6, 7)ROCKER ARM ASM, EXHAUST (INCLUDES 6, 7)
-
113084908 COLLET, VALVECOLLET, VALVE
-
123087203 RETAINER-VALVE SPRINGRETAINER-VALVE SPRING
-
133084906 SPRING, VALVESPRING, VALVE
-
143085855 ASM., CAMSHAFT (INCLUDES 15-18)ASM., CAMSHAFT (INCLUDES 15-18)
-
153086838 PIN, DOWELPIN, DOWEL
-
163085348 LEVER, RELEASELEVER, RELEASE
-
173085076 SPRING, RETURNSPRING, RETURN
-
183084899 PIN, DOWELPIN, DOWEL
-
193084914 SPROCKET 2SPROCKET 2
-
203084916 GUIDE, CHAINGUIDE, CHAIN
-
213081657 BOLTANDWASHER ASM.BOLTANDWASHER ASM.
-
223084915 CHAIN, TIMINGCHAIN, TIMING
-
233084924 ASM., BOLT, PIVOT, LEVERASM., BOLT, PIVOT, LEVER
-
243084917 LEVERLEVER
-
253085349 VALVE, INTAKEVALVE, INTAKE
-
263085412 VALVE, EXHAUSTVALVE, EXHAUST
-
273086448 GASKET-TENSIONERGASKET-TENSIONER
-
283083361 BOLT, FLANGEBOLT, FLANGE
