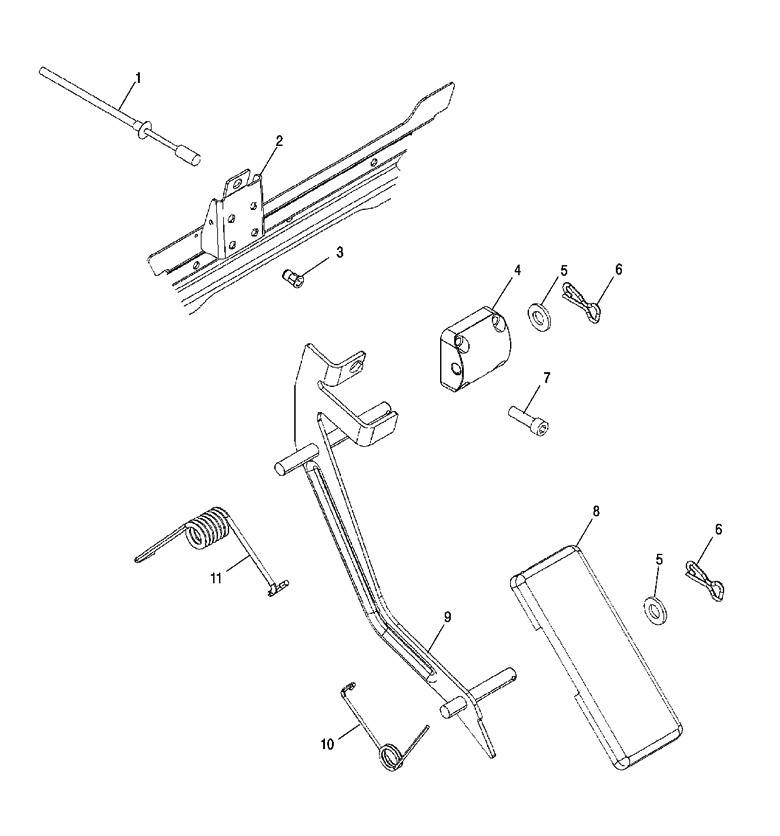

THROTTLE для Polaris RANGER 500 4X4 EFI NBU [R06RD50AB] - 2006 года выпуска
-
№АртикулНазвание
-
17081293 CABLE-THROTTLECABLE-THROTTLE
-
37547069 NUTSERT, HEXNUTSERT, HEX
-
45434327 BLOCK-PIVOT, THROTTLEBLOCK-PIVOT, THROTTLE
-
57555954 WASHERWASHER
-
67661140 PIN-CLIP, 14MMPIN-CLIP, 14MM
-
77515102 SCREWSCREW
-
85435649 PEDAL-THROTTLEPEDAL-THROTTLE
-
91014770-067 THROTTLE, BLACKTHROTTLE, BLACK
-
107043078 SPRING-THROTTLESPRING-THROTTLE
-
117042004 SPRING-ACCELERATORSPRING-ACCELERATOR
