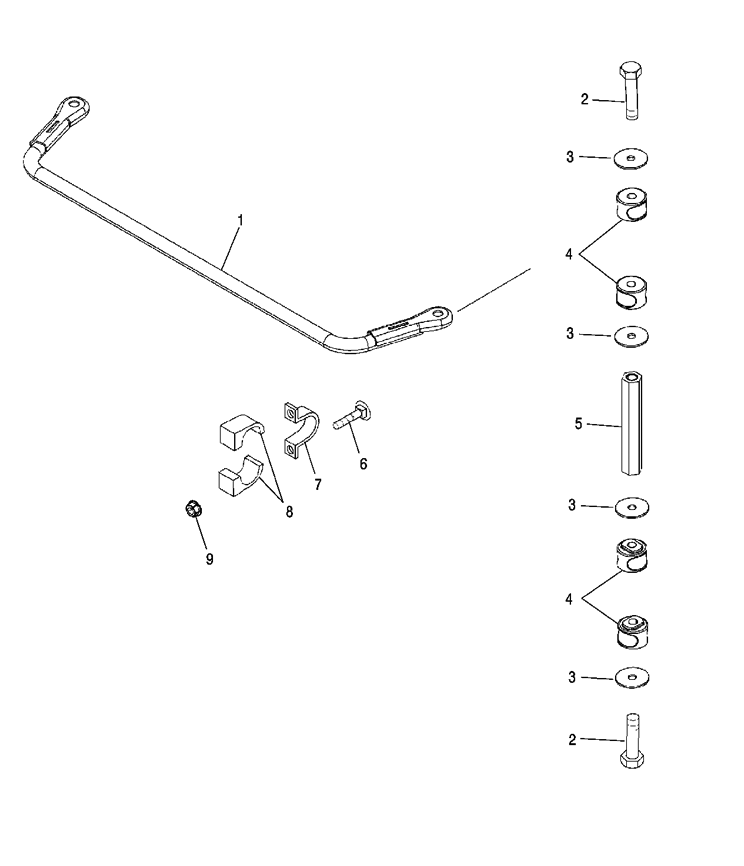

STABILIZER BAR - REAR для Polaris RANGER 500 4X4 EFI NBU [R06RD50AB] - 2006 года выпуска
-
№АртикулНазвание
-
11014885-067 WELD-STABILIZER BAR, 1"X.083BLKWELD-STABILIZER BAR, 1"X.083BLK
-
27517231 SCREWSCREW
-
37555761 WASHERWASHER
-
45432598 BUSHING, STAB.LINKBUSHING, STAB.LINK
-
55020827 ROD-LINKAGE, STABILIZERROD-LINKAGE, STABILIZER
-
67517428 BOLTBOLT
-
75246732 BRKT-UPPER BUSHINGBRKT-UPPER BUSHING
-
85433866 BUSHING-UPPER, 1 INBUSHING-UPPER, 1 IN
-
97542343 NUT, FLANGENUT, FLANGE
