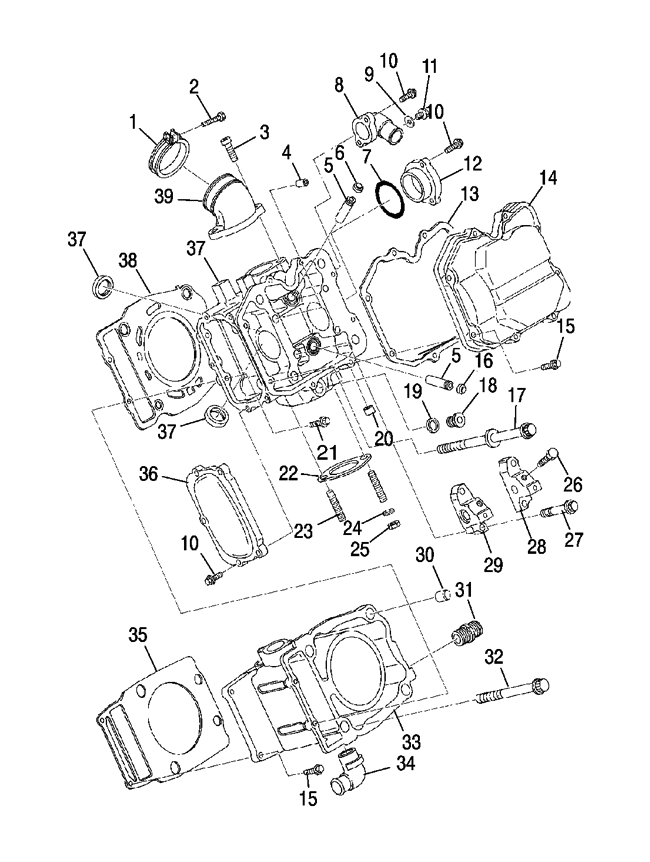

CYLINDER для Polaris RANGER 500 2X4 CARB EB GREEN [R08RB50AA] - 2008 года выпуска
-
№АртикулНазвание
-
13083166 ASM-ADAPTER BANDASM-ADAPTER BAND
-
23081497 SCREW,PAN HEADSCREW,PAN HEAD
-
33081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
43084857 KNOCK,PIPEKNOCK,PIPE
-
53084994 GUIDE,VALVEGUIDE,VALVE
-
63084858 SEAL,INTAKE VALVESEAL,INTAKE VALVE
-
73084867 O-RINGO-RING
-
83088208 ADAPTER(WATER OUT)ADAPTER(WATER OUT)
-
97555998 WASHER,FLATWASHER,FLAT
-
103084877 BOLT,FLANGEBOLT,FLANGE
-
113085359 BOLT,FLANGEBOLT,FLANGE
-
123084866 ADAPTER,CAMSHAFTADAPTER,CAMSHAFT
-
133085074 GASKET,(ROCKER COVER)GASKET,(ROCKER COVER)
-
143085073 COVER,ROCKERCOVER,ROCKER
-
153084874 BOLT, FLANGEBOLT, FLANGE
-
163084859 SEAL,EXHAUST VALVESEAL,EXHAUST VALVE
-
173084875 BOLTBOLT
-
183084860 PLUGPLUG
-
193084861 GASKETGASKET
-
203084862 PLUG, BLINDPLUG, BLIND
-
213086781 BOLT,FLANGEBOLT,FLANGE
-
223085075 ASM.,GASKET(EXHAUST)ASM.,GASKET(EXHAUST)
-
233085326 STUDSTUD
-
243080530 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
253087199 NUTNUT
-
263085854 BOLT-ROCKER SHAFTBOLT-ROCKER SHAFT
-
273084876 BOLTBOLT
-
283084864 SUPPORT,VALVE ROCKER SHAFT(PTO)SUPPORT,VALVE ROCKER SHAFT(PTO)
-
293084863 SUPPORT,VALVE ROCKER SHAFT(MAG)SUPPORT,VALVE ROCKER SHAFT(MAG)
-
303087266 KNOCK,PIPEKNOCK,PIPE
-
313084849 UNION-OIL FILTERUNION-OIL FILTER
-
323084873 BOLT, FLANGEBOLT, FLANGE
-
333089256 ASM-CYLINDERASM-CYLINDER
-
343086747 PIPE-2,ELBOWPIPE-2,ELBOW
-
353085370 GASKET, CYLINDERGASKET, CYLINDER
-
363089242 COVER-CAMSHAFTCOVER-CAMSHAFT
-
373085527 ASM.,HEAD,CYLINDERASM.,HEAD,CYLINDER
-
383085371 ASM.,GASKET, HEADASM.,GASKET, HEAD
-
393084879 ADAPTERADAPTER
