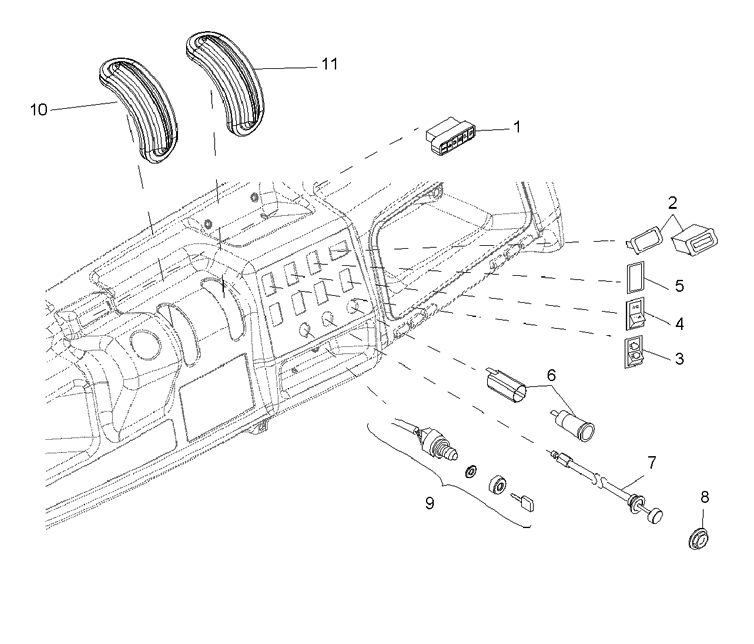

DASH INSTRUMENTS AND CONTROLS для Polaris RANGER 500 2X4 CARB EB GREEN [R08RB50AA] - 2008 года выпуска
-
№АртикулНазвание
-
14010797 PANEL-INDICATORPANEL-INDICATOR
-
14010416 BULB-INDICATOR,HOBBSBULB-INDICATOR,HOBBS
-
24010460 HOURMETER-12V,NON-POL,RECTNGLRHOURMETER-12V,NON-POL,RECTNGLR
-
34011500 SWITCH-HEADLIGHTSWITCH-HEADLIGHT
-
44011191 SWITCH-DIFF LOCKSWITCH-DIFF LOCK
-
55434192 PLUG-HOLE,CARLING ROCKER SWTCHPLUG-HOLE,CARLING ROCKER SWTCH
-
64010638 RECEPTACLE-POD MNT,12 VOLTRECEPTACLE-POD MNT,12 VOLT
-
77081299 CABLE-CHOKECABLE-CHOKE
-
87080922 NUT,CHOKE,M24X1.5 THD,M29 HEXNUT,CHOKE,M24X1.5 THD,M29 HEX
-
94011002 SWITCH-KEY,3 POS,MT SLVSWITCH-KEY,3 POS,MT SLV
-
105412294 GROMMET-GEAR SHIFT PLUGGROMMET-GEAR SHIFT PLUG
-
115412154 GROMMET-GEAR SHIFTGROMMET-GEAR SHIFT
