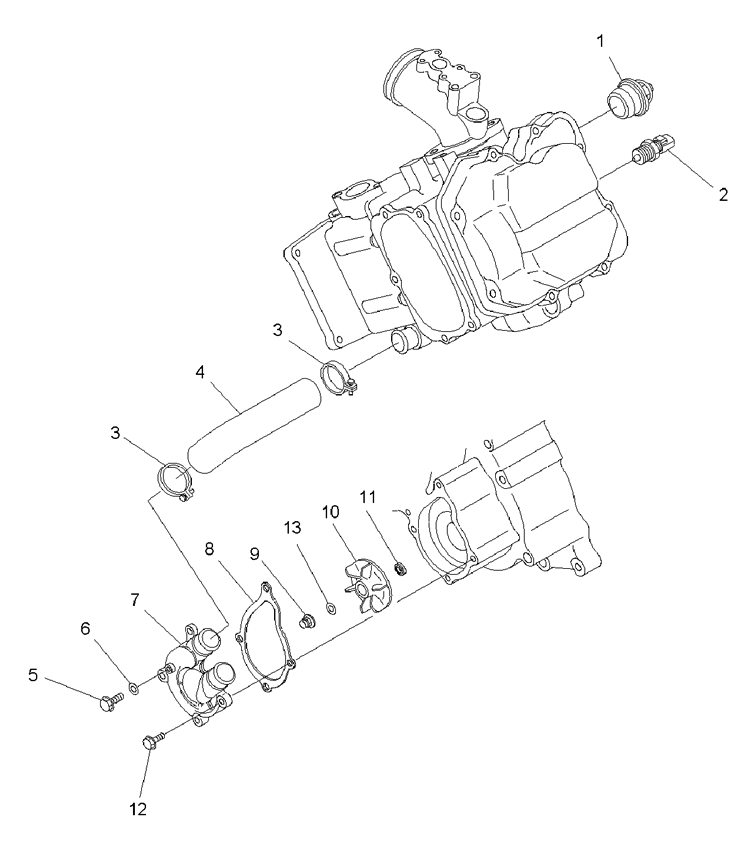

WATER PUMP для Polaris RANGER 500 2X4 CARB EB GREEN [R08RB50AA] - 2008 года выпуска
-
№АртикулНазвание
-
13084940 THERMOSTATTHERMOSTAT
-
23089246 ASM-THERMO SENSORASM-THERMO SENSOR
-
33086774 CLAMP-HOSECLAMP-HOSE
-
43085857 HOSE,MAINHOSE,MAIN
-
53085359 BOLT,FLANGEBOLT,FLANGE
-
67555998 WASHER,FLATWASHER,FLAT
-
73085351 COVER,WATER PUMPCOVER,WATER PUMP
-
83086840 GASKET,WATER-PUMPGASKET,WATER-PUMP
-
93085077 NUT,SELF-LOCKNUT,SELF-LOCK
-
103084935 IMPELLERIMPELLER
-
113084942 WASHER,SEALWASHER,SEAL
-
123084877 BOLT,FLANGEBOLT,FLANGE
-
133083138 WASHER,FLATWASHER,FLAT
