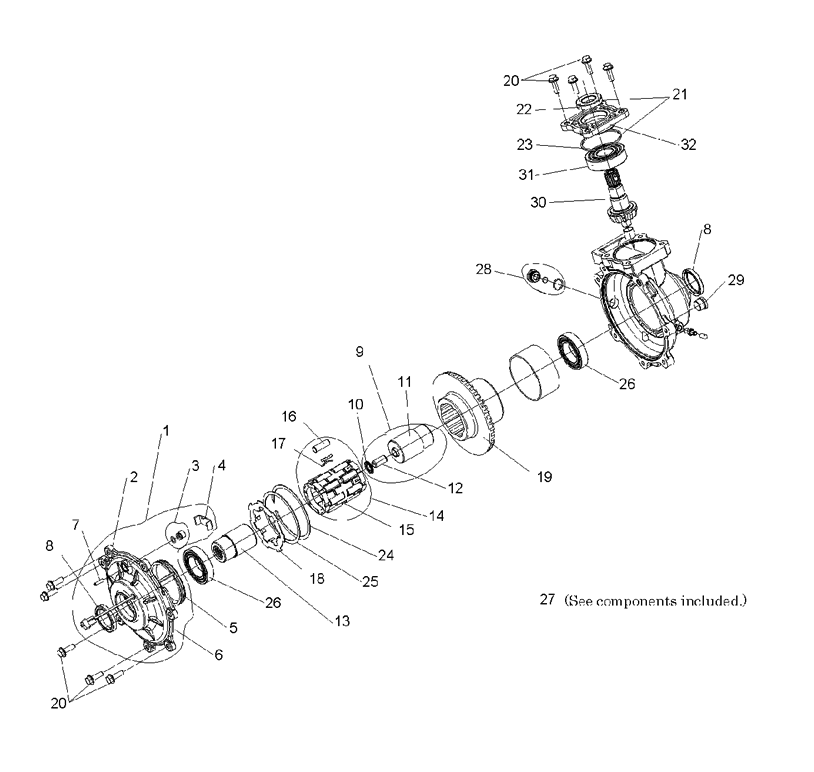

FRONT GEARCASE INTERNALS (BUILT 8/29/07 AND AFTER) для Polaris RANGER 700 EFI 6X6 C.RED [R08RF68AD] - 2008 года выпуска
-
№АртикулНазвание
-
1332670 ASM-GEARCASE,FRONT,BEARINGLESSASM-GEARCASE,FRONT,BEARINGLESS
-
13234159 ASM-COVER PLATE (INCLUDES 2-8)ASM-COVER PLATE (INCLUDES 2-8)
-
33234375 BUTTON-THRUSTBUTTON-THRUST
-
43234165 PLATE-THRUSTPLATE-THRUST
-
73234408 SET-SCREW,#10-14 W/NYLOKSET-SCREW,#10-14 W/NYLOK
-
93233953 ASM-RACE/OUTPUT HUBASM-RACE/OUTPUT HUB
-
103233929 BEARING-NEEDLE ROLLER THRUST (INCLUDES 10-13)BEARING-NEEDLE ROLLER THRUST (INCLUDES 10-13)
-
123233928 PIN-DOWEL,1/2''DIA X 1''PIN-DOWEL,1/2''DIA X 1''
-
143234380 ASM-CLUTCH (INCLUDES 15-19)ASM-CLUTCH (INCLUDES 15-19)
-
163233957 KIT-ROLLER (INCLUDES 14 ROLLERS)KIT-ROLLER (INCLUDES 14 ROLLERS)
-
183234101 ARMATURE PLATEARMATURE PLATE
-
193234376 CLUTCH-HOUSING/RING GEARCLUTCH-HOUSING/RING GEAR
-
203233955 KIT-BOLTKIT-BOLT
-
213233956 KIT-SEAL,GEARCASE-FRONT (INCLUDES 6,8,22,23)KIT-SEAL,GEARCASE-FRONT (INCLUDES 6,8,22,23)
-
243234162 RING-RETAINING,INTERNALRING-RETAINING,INTERNAL
-
253234161 PLATE-ARMATURE,SHIMPLATE-ARMATURE,SHIM
-
263233926 BEARING-ROLLER BALLBEARING-ROLLER BALL
-
273234377 ASM-ROLL CAGE AND ARM PLATE (INCL. 15,17,18)ASM-ROLL CAGE AND ARM PLATE (INCL. 15,17,18)
-
283234412 ASM-PLUG,DRAIN,MAGNETICASM-PLUG,DRAIN,MAGNETIC
-
293233942 PLUG-OIL FILL 3/4-16 HOLLOWPLUG-OIL FILL 3/4-16 HOLLOW
-
303233944 SHAFT-PINION,11T,6.75DP,MACHSHAFT-PINION,11T,6.75DP,MACH
-
313234112 BEARING-DEEP GROVE ROLLER BALLBEARING-DEEP GROVE ROLLER BALL
-
323234619 COVER-INPUTCOVER-INPUT
