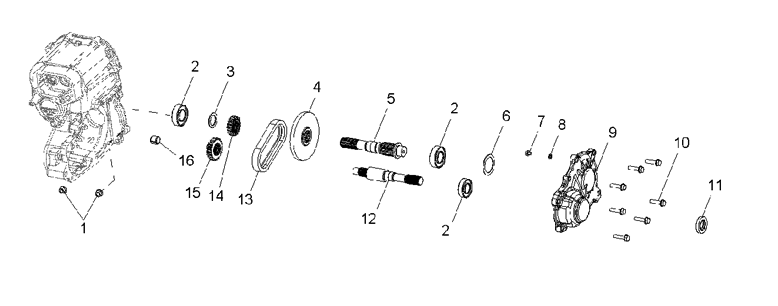

MAIN GEARCASE OUTPUT SHAFT для Polaris RANGER 700 EFI 6X6 C.RED [R08RF68AD] - 2008 года выпуска
-
№АртикулНазвание
-
-1332351 GEARCASE ASM, MAINGEARCASE ASM, MAIN
-
13234043 NUTNUT
-
23233019 BEARINGBEARING
-
33233619 WASHER,THRUSTWASHER,THRUST
-
43234361 PULLY (INCL. REF. 29 FROM DRIVE TRAIN, MAIN GEARCASE INTERNALS PAGE)PULLY (INCL. REF. 29 FROM DRIVE TRAIN, MAIN GEARCASE INTERNALS PAGE)
-
53233911 SHAFT-OUTPUT,MAIN,REARSHAFT-OUTPUT,MAIN,REAR
-
63233611 SHIMSHIM
-
73233582 BUTTON,THRUSTBUTTON,THRUST
-
83233583 SHIM .450 X .265SHIM .450 X .265
-
93234132 COVER-FRONT OUTPUT,MACHCOVER-FRONT OUTPUT,MACH
-
103234114 SCR-TAPPING HEX WASHER HD 5/16SCR-TAPPING HEX WASHER HD 5/16
-
113233842 SEAL-VITON,TRIPLE LIPSEAL-VITON,TRIPLE LIP
-
123233625 SHAFT,FRONT OUTPUTSHAFT,FRONT OUTPUT
-
133233408 CHAIN,SILENT,40P,11WCHAIN,SILENT,40P,11W
-
143233843 SPROCKET-19TSPROCKET-19T
-
153233844 SPROCKET-22TSPROCKET-22T
-
163233552 BUSHING,GARLOCKBUSHING,GARLOCK
