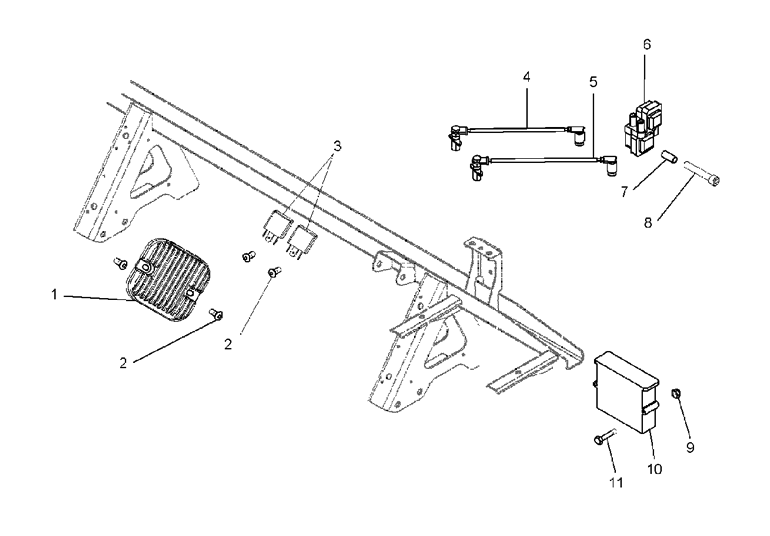

SENSORS AND ECU для Polaris RANGER 700 EFI 6X6 C.RED [R08RF68AD] - 2008 года выпуска
-
№АртикулНазвание
-
14011925 REGULATOR-3PH,TALL FIN,SEALEDREGULATOR-3PH,TALL FIN,SEALED
-
27518196 SCR-10-24X3/4 PH/TX/TRI-SEMS YSCR-10-24X3/4 PH/TX/TRI-SEMS Y
-
34011141 RELAY-SEALED,SPST,NO MNT TABRELAY-SEALED,SPST,NO MNT TAB
-
44011364 WIRE-SPARKPLUG,49.5CM VANTAGEWIRE-SPARKPLUG,49.5CM VANTAGE
-
54011365 WIRE-SPARKPLUG,59.3CM VANTAGEWIRE-SPARKPLUG,59.3CM VANTAGE
-
64010425 KIT-IGNITION COIL,ATV TWINKIT-IGNITION COIL,ATV TWIN
-
75436577 SPACER, COIL MOUNTSPACER, COIL MOUNT
-
87515156 SCREWSCREW
-
97546601 NUT, NYLOKNUT, NYLOK
-
104011599 ECU-1.1B,NO START,COMMONECU-1.1B,NO START,COMMON
-
117518157 SCR-M5X.8X50MMSCR-M5X.8X50MM
