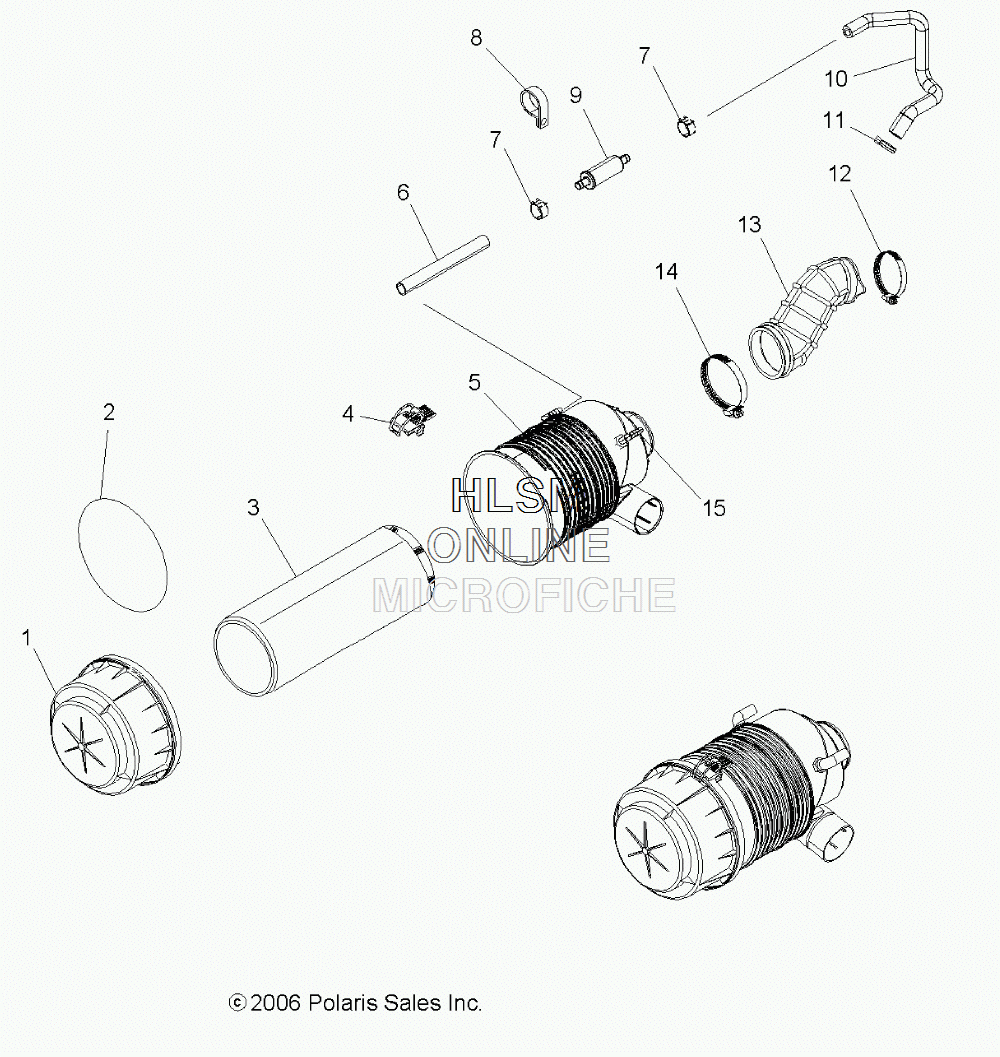

AIR INTAKE SYSTEM для Polaris RANGER 2X4 500 CARB - GREEN [R09RB50AF] - 2009 года выпуска
-
№АртикулНазвание
-
-1203353 ASM., AIR INTAKE (INCL. 1-5,17)ASM., AIR INTAKE (INCL. 1-5,17)
-
15436699 COVER, AIR BOXCOVER, AIR BOX
-
25812964 SEAL, COVERSEAL, COVER
-
37081308 FILTER, AIR INTAKEFILTER, AIR INTAKE
-
47710621 CLIP, COVERCLIP, COVER
-
55436698 BOX, AIR INTAKEBOX, AIR INTAKE
-
68450073-600 HOSE, BREATHERHOSE, BREATHER
-
77080699 CLAMP, HOSECLAMP, HOSE
-
87080913 P-CLAMPP-CLAMP
-
92530029 FILTER, BREATHERFILTER, BREATHER
-
105412734 HOSE, BREATHER, FORMEDHOSE, BREATHER, FORMED
-
117080694 CLAMP, HOSECLAMP, HOSE
-
127080511 CLAMPCLAMP
-
135413062 BOOTBOOT
-
147080413 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
157052164 FITTING, 90 DEGREE, BARBEDFITTING, 90 DEGREE, BARBED
