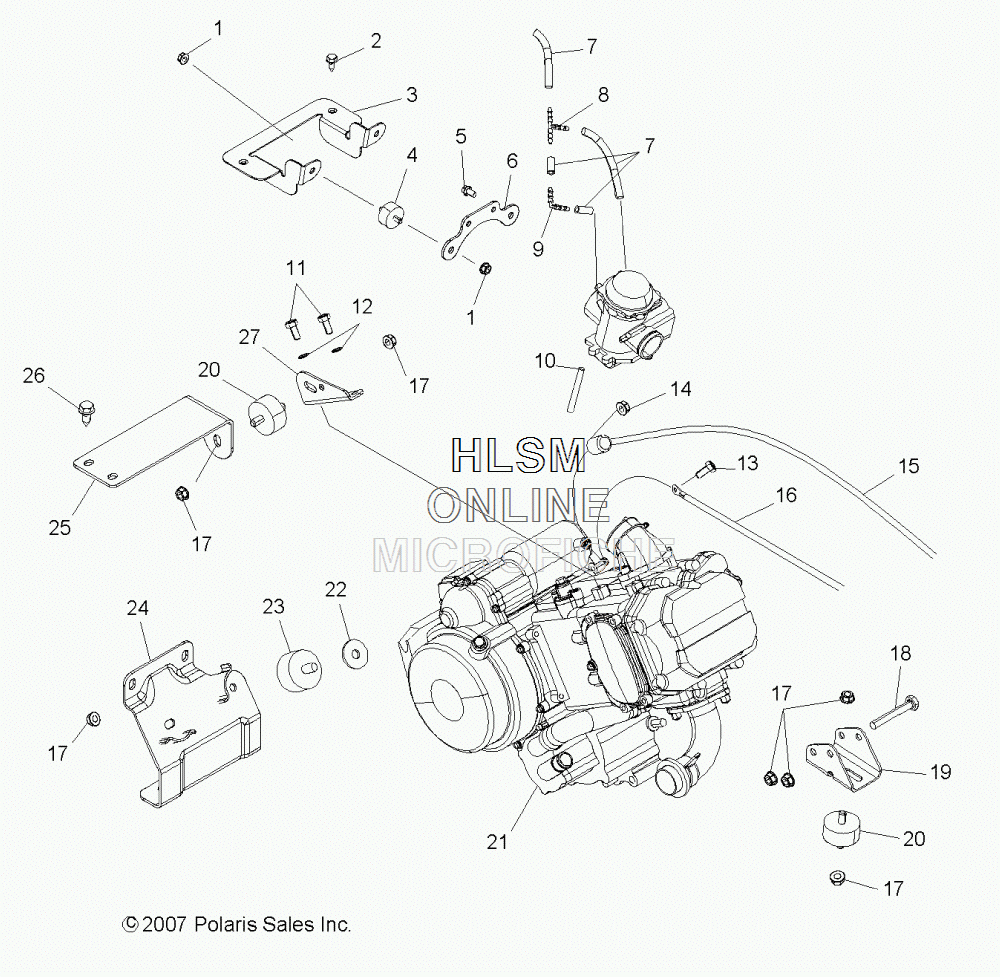

MOUNTING для Polaris RANGER 2X4 500 CARB - GREEN [R09RB50AF] - 2009 года выпуска
-
№АртикулНазвание
-
17542153 NUT, FLANGED, NYLOKNUT, FLANGED, NYLOK
-
27517386 SCREWSCREW
-
35249750 BRACKET, CARBURETORBRACKET, CARBURETOR
-
43021398 MOUNT, RUBBER, ISOLATORMOUNT, RUBBER, ISOLATOR
-
53084205 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
65245206 BRACKET, CARBURETOR DAMPNERBRACKET, CARBURETOR DAMPNER
-
78450003-1525 LINE, FUELLINE, FUEL
-
87052075 FITTING, TEEFITTING, TEE
-
97052385 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
108360009-600 LINE, FUELLINE, FUEL
-
117512315 BOLTBOLT
-
127552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
133082038 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
143083649 NUT, FLANGENUT, FLANGE
-
154011249 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
164012387 CABLE, GROUNDCABLE, GROUND
-
177547263 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
187515417 SCREWSCREW
-
195248195 BRACKET, ENGINE MOUNT, LOWER, FRONTBRACKET, ENGINE MOUNT, LOWER, FRONT
-
203022071 ISOLATORISOLATOR
-
213090244 SHORT BLOCK, EH500PLE16A (SEE NOTE)SHORT BLOCK, EH500PLE16A (SEE NOTE)
-
227555823 WASHER, FLATWASHER, FLAT
-
233022076 ISOLATORISOLATOR
-
241015065-067 MOUNT, ENGINE, TRANSMISSION (BLACK)MOUNT, ENGINE, TRANSMISSION (BLACK)
-
255248196 BRACKET, MOTOR MOUNT, TOPBRACKET, MOTOR MOUNT, TOP
-
267515399 SCREWSCREW
-
275241453 MOUNT, ENGINE, TOPMOUNT, ENGINE, TOP
