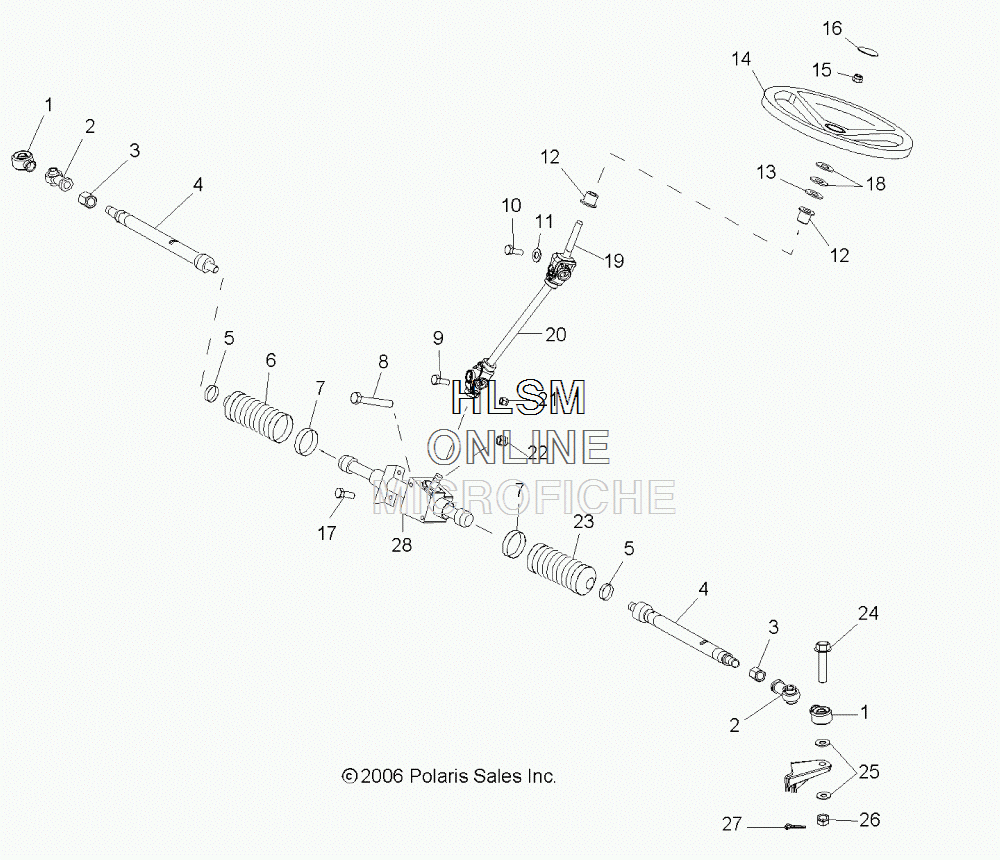

STEERING ASM. для Polaris RANGER 2X4 500 CARB - GREEN [R09RB50AF] - 2009 года выпуска
-
№АртикулНазвание
-
15411920 BOOT, SEAL, ROD ENDBOOT, SEAL, ROD END
-
27061054 ROD ENDROD END
-
37547028 NUT, JAM, LEFT HANDNUT, JAM, LEFT HAND
-
57080978 CLAMP, BOOT, SMALLCLAMP, BOOT, SMALL
-
65412013 BOOT, PASSENGER, SIDE RACKBOOT, PASSENGER, SIDE RACK
-
77080979 CLAMP, BOOT, LARGECLAMP, BOOT, LARGE
-
87518935 BOLTBOLT
-
97518334 SCREWSCREW
-
107517924 BOLTBOLT
-
117552901 WASHERWASHER
-
125434106 BUSHING, SHAFT, STEERINGBUSHING, SHAFT, STEERING
-
137556301 BUSHINGBUSHING
-
141823678 WHEEL, STEERINGWHEEL, STEERING
-
157547188 NUTNUT
-
165436536 CAP, STEERING WHEELCAP, STEERING WHEEL
-
177518702 BOLTBOLT
-
187556063 WASHER, WAVEWASHER, WAVE
-
191821018 SHAFT, STEERING, UPPERSHAFT, STEERING, UPPER
-
201823538 SHAFT, STEERING W/JOINTS, LOWERSHAFT, STEERING W/JOINTS, LOWER
-
217547313 NUT, FLANGENUT, FLANGE
-
227547332 NUT, NYLOKNUT, NYLOK
-
235412012 BOOT, DRIVER SIDE, RACKBOOT, DRIVER SIDE, RACK
-
247517909 BOLTBOLT
-
257556099 WASHERWASHER
-
267547177 NUTNUT
-
277661203 PIN, COTTERPIN, COTTER
-
281822636 ASM., GEAR BOX, STEERINGASM., GEAR BOX, STEERING
