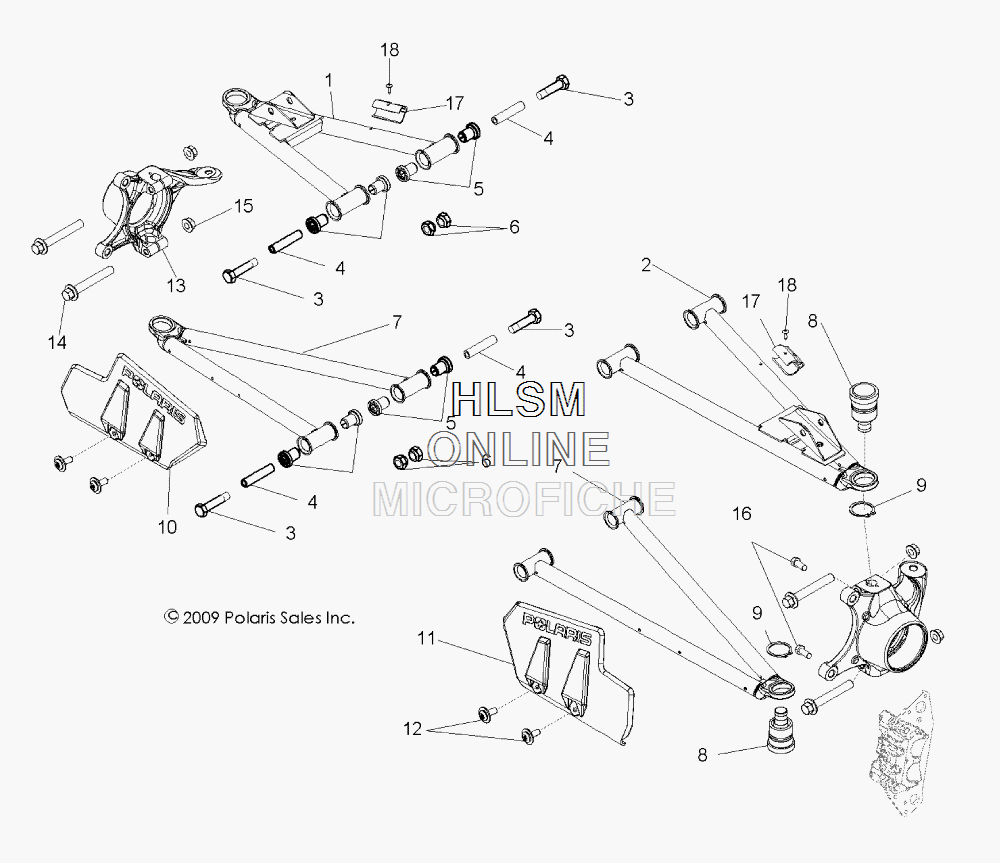

CONTROL ARMS - FRONT для Polaris RANGER 900 DIESEL - SAGEBRUSH GREEN [R12TH90DG] - 2012 года выпуска
-
№АртикулНазвание
-
11018198-067 ARM, CONTROL, UPPER, FRONT, BLACK, RIGHT HANDARM, CONTROL, UPPER, FRONT, BLACK, RIGHT HAND
-
21018197-067 ARM, CONTROL, UPPER, FRONT, BLACK, LEFT HANDARM, CONTROL, UPPER, FRONT, BLACK, LEFT HAND
-
37519043 SCREWSCREW
-
45137591 SHAFT, PIVOTSHAFT, PIVOT
-
55439270 BUSHING, A-ARM, SHORT, BLACKBUSHING, A-ARM, SHORT, BLACK
-
67547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
71018186-067 ARM, CONTROL, LOWER, FRONT, BLACKARM, CONTROL, LOWER, FRONT, BLACK
-
87081666 JOINT, BALL, LONG STUDJOINT, BALL, LONG STUD
-
97710533 RING, RETAINER, EXTERNALRING, RETAINER, EXTERNAL
-
105437545-070 SHIELD, CV, FRONT, RIGHT HAND, BLACKSHIELD, CV, FRONT, RIGHT HAND, BLACK
-
115437544-070 SHIELD, CV, FRONT, LEFT HAND, BLACKSHIELD, CV, FRONT, LEFT HAND, BLACK
-
127512084 SCREWSCREW
-
135136948 CARRIER, WHEEL BEARING, LEFT HANDCARRIER, WHEEL BEARING, LEFT HAND
-
135136949 CARRIER, WHEEL BEARING, RIGHT HANDCARRIER, WHEEL BEARING, RIGHT HAND
-
147516733 SCREWSCREW
-
157547405 NUT, NYLOKNUT, NYLOK
-
167518760 BOLT (FRONT CALIPER ATTACH)BOLT (FRONT CALIPER ATTACH)
-
175439192 RETAINER, BRAKE LINERETAINER, BRAKE LINE
-
187621323 RIVETRIVET
