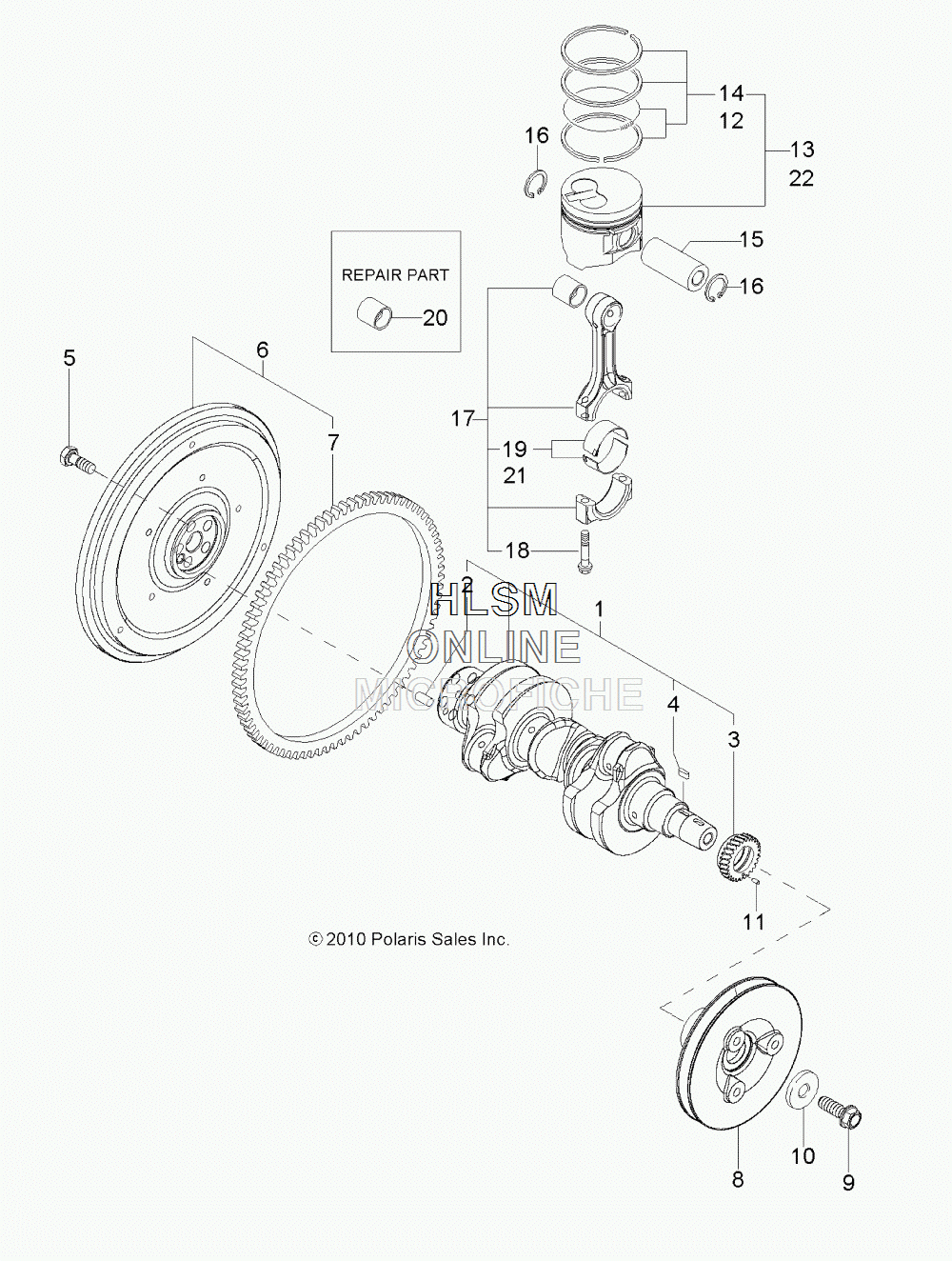

CRANKSHAFT AND PISTON для Polaris RANGER 900 DIESEL - SAGEBRUSH GREEN [R12TH90DG] - 2012 года выпуска
-
№АртикулНазвание
-
13070098 ASM., CRANKSHAFT (INCL. 2-4)ASM., CRANKSHAFT (INCL. 2-4)
-
23070037 PIN, PARALLELPIN, PARALLEL
-
33070100 GEAR, CRANKSHAFTGEAR, CRANKSHAFT
-
43070101 KEYKEY
-
53070102 BOLT, FLYWHEELBOLT, FLYWHEEL
-
63070376 ASM., FLYWHEEL (INCL. 7)ASM., FLYWHEEL (INCL. 7)
-
73070103 GEAR, RINGGEAR, RING
-
83070374 V-PULLEYV-PULLEY
-
93070104 BOLT, FLANGEBOLT, FLANGE
-
103070105 WASHERWASHER
-
113070375 PIN, SPRINGPIN, SPRING
-
123070117 RING SET, O.S. 0.25RING SET, O.S. 0.25
-
133070107 ASM., PISTON (INCL. 14)ASM., PISTON (INCL. 14)
-
143070108 RING SET, PISTONRING SET, PISTON
-
153070109 PIN, PISTONPIN, PISTON
-
163070110 CIRCLIPCIRCLIP
-
173070111 ASM., CONNECTING ROD (INCL. 18,19)ASM., CONNECTING ROD (INCL. 18,19)
-
183070112 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
193070113 ASM., METAL CRANK PINASM., METAL CRANK PIN
-
203070114 METAL, PISTON PINMETAL, PISTON PIN
-
213070115 METAL, CRANK PIN, 0.25METAL, CRANK PIN, 0.25
-
223070116 ASM., PISTON, O.S. 0.25 (INCL. 12)ASM., PISTON, O.S. 0.25 (INCL. 12)
