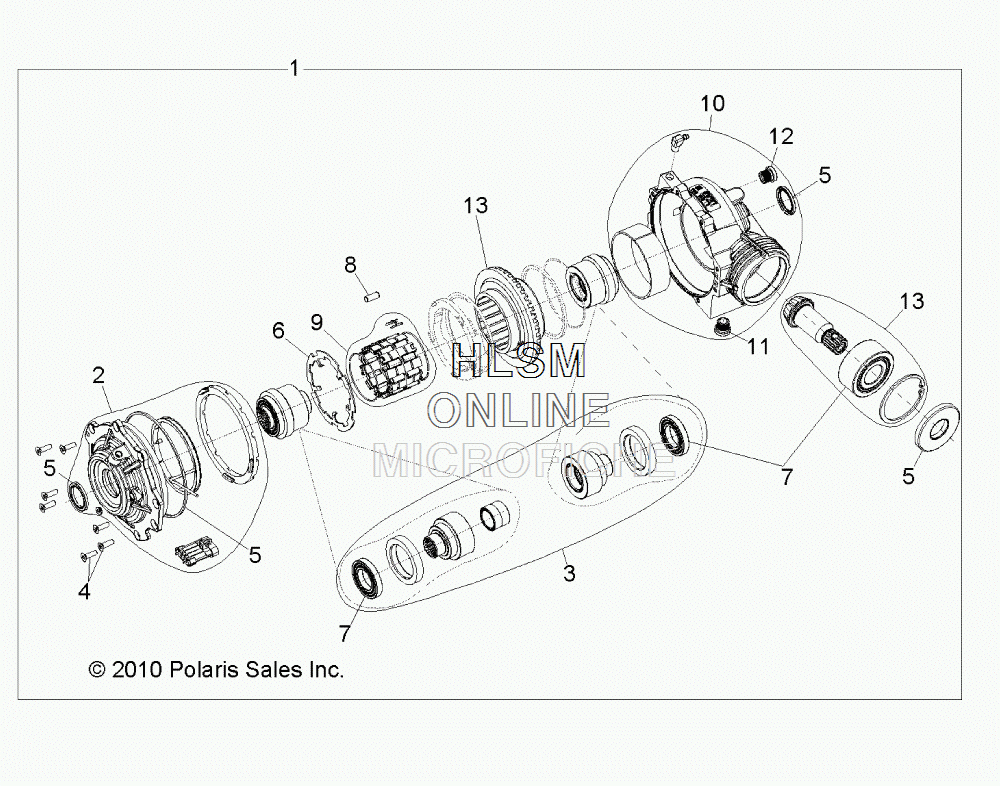

FRONT GEARCASE INTERNALS для Polaris RANGER 900 DIESEL - SAGEBRUSH GREEN [R12TH90DG] - 2012 года выпуска
-
№АртикулНазвание
-
11332842 ASM., FRONT GEARCASE {INCL. 2-13)ASM., FRONT GEARCASE {INCL. 2-13)
-
23235168 ASM., COVER OUTPUTASM., COVER OUTPUT
-
33235169 KIT, HUB ASM. (INCL. BUSHING, HUB SUB. ASM., NYLON SPACER)KIT, HUB ASM. (INCL. BUSHING, HUB SUB. ASM., NYLON SPACER)
-
43235170 KIT, FASTENER (INCL. ALL FASTENERS)KIT, FASTENER (INCL. ALL FASTENERS)
-
53235171 KIT, SEAL REPAIR (INCL. ALL SEALS)KIT, SEAL REPAIR (INCL. ALL SEALS)
-
63234407 PLATE, ARMATUREPLATE, ARMATURE
-
73235174 BEARING, PINION (INCL. ALL BEARINGS)BEARING, PINION (INCL. ALL BEARINGS)
-
83234393 KIT, ROLLER (INCL. COMPLETE SET OF ROLLERKIT, ROLLER (INCL. COMPLETE SET OF ROLLER
-
93235261 ASM., ROLL CAGE, ZN (INCL. ROLL CAGE, SPRING WIRE FOR, H-CLIP)ASM., ROLL CAGE, ZN (INCL. ROLL CAGE, SPRING WIRE FOR, H-CLIP)
-
93235262 ASM., ROLL CAGE, ALUM (HIGH PERFORMANCE ACCESSORY) (INCL. CLIP SET)ASM., ROLL CAGE, ALUM (HIGH PERFORMANCE ACCESSORY) (INCL. CLIP SET)
-
103235172 KIT, GEARCASE ASM. (INCL. HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG, DRAIN PLUG)KIT, GEARCASE ASM. (INCL. HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG, DRAIN PLUG)
-
112203738 PLUG, DRAINPLUG, DRAIN
-
122203739 PLUG, FILLPLUG, FILL
-
133235173 KIT, RING AND PINION (INCL. BEARING, INTERNAL RING, RING GEAR, PINION GEAR)KIT, RING AND PINION (INCL. BEARING, INTERNAL RING, RING GEAR, PINION GEAR)
